Резцы | Сменные пластины для точения

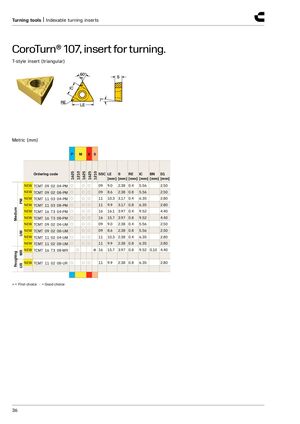

CoroTurn® 107, пластина для точения
Пластина типа T (треугольная)
Метрическая система (мм)
Средний
| Код заказа | P | M | K | S | SSC | LE | S | RE | IC | BN | D1 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | ||||||||||
| NEW TCMT 09 02 04-PM | ○ | ○ | ○ | 09 | 9.0 | 2.38 | 0.4 | 5.56 | 2.50 | |||
| NEW TCMT 09 02 08-PM | ○ | ○ | ○ | 09 | 8.6 | 2.38 | 0.8 | 5.56 | 2.50 | |||
| NEW TCMT 11 03 04-PM | ○ | ○ | ○ | 11 | 10.3 | 3.17 | 0.4 | 6.35 | 2.80 | |||
| NEW TCMT 11 03 08-PM | ○ | ○ | ○ | 11 | 9.9 | 3.17 | 0.8 | 6.35 | 2.80 | |||
| NEW TCMT 16 T3 04-PM | ○ | ○ | ○ | 16 | 16.1 | 3.97 | 0.4 | 9.52 | 4.40 | |||
| NEW TCMT 16 T3 08-PM | ○ | ○ | ○ | 16 | 15.7 | 3.97 | 0.8 | 9.52 | 4.40 | |||
| NEW TCMT 09 02 04-UM | ○ | ○ | ○ | 09 | 9.0 | 2.38 | 0.4 | 5.56 | 2.50 | |||
| NEW TCMT 09 02 08-UM | ○ | ○ | ○ | 09 | 8.6 | 2.38 | 0.8 | 5.56 | 2.50 | |||
| NEW TCMT 11 02 04-UM | ○ | ○ | ○ | 11 | 10.3 | 2.38 | 0.4 | 6.35 | 2.80 | |||
| NEW TCMT 11 02 08-UM | ○ | ○ | ○ | 11 | 9.9 | 2.38 | 0.8 | 6.35 | 2.80 | |||
Черновая обработка
| Код заказа | P | M | K | S | SSC | LE | S | RE | IC | BN | D1 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | ||||||||||
| NEW TCMT 16 T3 08-MR | ○ | ● | 16 | 15.7 | 3.97 | 0.8 | 9.52 | 0.10 | 4.40 | |||
| NEW TCMT 11 02 08-UR | ○ | ○ | ○ | 11 | 9.9 | 2.38 | 0.8 | 6.35 | 2.80 | |||
● = Первый выбор ○ = Хороший выбор
