Токарный инструмент | Сменные многогранные пластины

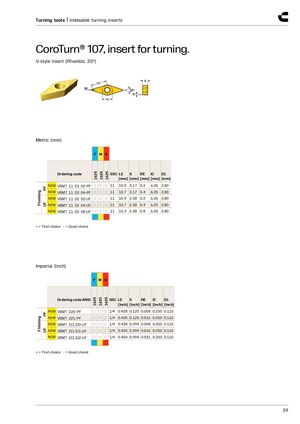

CoroTurn® 107, пластина для токарной обработки
Пластина формы V (ромб 35°)
Метрическая система (мм)
Марки: P (1625) | M (1625) | K (1625)
Чистовая обработка
| Артикул | Марка | SSC [мм] | LE [мм] | S [мм] | RE [мм] | IC [мм] | D1 [мм] |
|---|---|---|---|---|---|---|---|
| NEW VBMT 11 03 02-PF | PF | 11 | 10.9 | 3.17 | 0.2 | 6.35 | 2.80 |
| NEW VBMT 11 03 04-PF | PF | 11 | 10.7 | 3.17 | 0.4 | 6.35 | 2.80 |
| NEW VBMT 11 02 02-UF | UF | 11 | 10.9 | 2.38 | 0.2 | 6.35 | 2.80 |
| NEW VBMT 11 02 04-UF | UF | 11 | 10.7 | 2.38 | 0.4 | 6.35 | 2.80 |
| NEW VBMT 11 02 08-UF | UF | 11 | 10.3 | 2.38 | 0.8 | 6.35 | 2.80 |
● = Первый выбор ○ = Хороший выбор
Дюймовая система (дюймы)
Марки: P (1625) | M (1625) | K (1625)
Чистовая обработка
| Артикул ANSI | Марка | SSC [дюйм] | LE [дюйм] | S [дюйм] | RE [дюйм] | IC [дюйм] | D1 [дюйм] |
|---|---|---|---|---|---|---|---|
| NEW VBMT 220-PF | PF | 1/4 | 0.428 | 0.125 | 0.008 | 0.250 | 0.110 |
| NEW VBMT 221-PF | PF | 1/4 | 0.420 | 0.125 | 0.016 | 0.250 | 0.110 |
| NEW VBMT 2(1.5)0-UF | UF | 1/4 | 0.428 | 0.094 | 0.008 | 0.250 | 0.110 |
| NEW VBMT 2(1.5)1-UF | UF | 1/4 | 0.420 | 0.094 | 0.016 | 0.250 | 0.110 |
| NEW VBMT 2(1.5)2-UF | UF | 1/4 | 0.404 | 0.094 | 0.031 | 0.250 | 0.110 |
● = Первый выбор ○ = Хороший выбор
