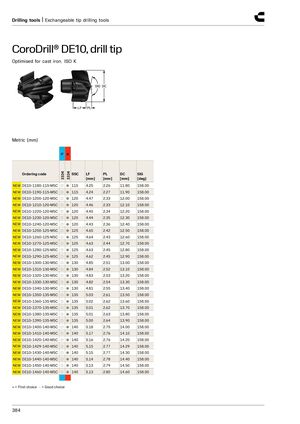

Инструменты для сверления | Сверла со сменными пластинами
CoroDrill® DE10, пластина сверла
Оптимизирована для чугуна, ISO K
| Код заказа | Материалы | SSC | LF [мм] | PL [мм] | DC [мм] | SIG [град] |
|---|---|---|---|---|---|---|
| NEW DE10-1180-115-M5C | P○K● | 115 | 4.25 | 2.26 | 11.80 | 158.00 |
| NEW DE10-1190-115-M5C | P○K● | 115 | 4.24 | 2.27 | 11.90 | 158.00 |
| NEW DE10-1200-120-M5C | P○K● | 120 | 4.47 | 2.33 | 12.00 | 158.00 |
| NEW DE10-1210-120-M5C | P○K● | 120 | 4.46 | 2.33 | 12.10 | 158.00 |
| NEW DE10-1220-120-M5C | P○K● | 120 | 4.45 | 2.34 | 12.20 | 158.00 |
| NEW DE10-1230-120-M5C | P○K● | 120 | 4.44 | 2.35 | 12.30 | 158.00 |
| NEW DE10-1240-120-M5C | P○K● | 120 | 4.43 | 2.36 | 12.40 | 158.00 |
| NEW DE10-1250-125-M5C | P○K● | 125 | 4.65 | 2.42 | 12.50 | 158.00 |
| NEW DE10-1260-125-M5C | P○K● | 125 | 4.64 | 2.43 | 12.60 | 158.00 |
| NEW DE10-1270-125-M5C | P○K● | 125 | 4.63 | 2.44 | 12.70 | 158.00 |
| NEW DE10-1280-125-M5C | P○K● | 125 | 4.63 | 2.45 | 12.80 | 158.00 |
| NEW DE10-1290-125-M5C | P○K● | 125 | 4.62 | 2.45 | 12.90 | 158.00 |
| NEW DE10-1300-130-M5C | P○K● | 130 | 4.85 | 2.51 | 13.00 | 158.00 |
| NEW DE10-1310-130-M5C | P○K● | 130 | 4.84 | 2.52 | 13.10 | 158.00 |
| NEW DE10-1320-130-M5C | P○K● | 130 | 4.83 | 2.53 | 13.20 | 158.00 |
| NEW DE10-1330-130-M5C | P○K● | 130 | 4.82 | 2.54 | 13.30 | 158.00 |
| NEW DE10-1340-130-M5C | P○K● | 130 | 4.81 | 2.55 | 13.40 | 158.00 |
| NEW DE10-1350-135-M5C | P○K● | 135 | 5.03 | 2.61 | 13.50 | 158.00 |
| NEW DE10-1360-135-M5C | P○K● | 135 | 5.02 | 2.62 | 13.60 | 158.00 |
| NEW DE10-1370-135-M5C | P○K● | 135 | 5.01 | 2.62 | 13.70 | 158.00 |
| NEW DE10-1380-135-M5C | P○K● | 135 | 5.01 | 2.63 | 13.80 | 158.00 |
| NEW DE10-1390-135-M5C | P○K● | 135 | 5.00 | 2.64 | 13.90 | 158.00 |
| NEW DE10-1400-140-M5C | P○K● | 140 | 5.18 | 2.75 | 14.00 | 158.00 |
| NEW DE10-1410-140-M5C | P○K● | 140 | 5.17 | 2.76 | 14.10 | 158.00 |
| NEW DE10-1420-140-M5C | P○K● | 140 | 5.16 | 2.76 | 14.20 | 158.00 |
| NEW DE10-1429-140-M5C | P○K● | 140 | 5.15 | 2.77 | 14.29 | 158.00 |
| NEW DE10-1430-140-M5C | P○K● | 140 | 5.15 | 2.77 | 14.30 | 158.00 |
| NEW DE10-1440-140-M5C | P○K● | 140 | 5.14 | 2.78 | 14.40 | 158.00 |
| NEW DE10-1450-140-M5C | P○K● | 140 | 5.13 | 2.79 | 14.50 | 158.00 |
| NEW DE10-1460-140-M5C | P○K● | 140 | 5.13 | 2.80 | 14.60 | 158.00 |
● — первый выбор ○ — хороший выбор
