Инструменты для сверления | Сверла со сменными пластинами

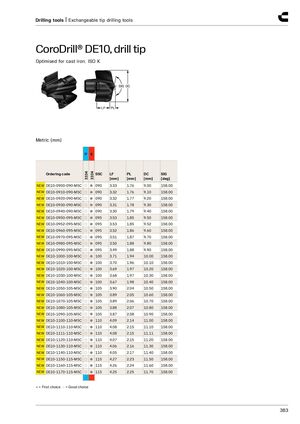

CoroDrill® DE10, пластина сверла
Оптимизирована для чугуна, ISO K
| Код заказа | Материалы | SSC | LF [мм] | PL [мм] | DC [мм] | SIG [град] |
|---|---|---|---|---|---|---|
| NEW DE10-0900-090-M5C | P○K● | 090 | 3.33 | 1.76 | 9.00 | 158.00 |
| NEW DE10-0910-090-M5C | P○K● | 090 | 3.32 | 1.76 | 9.10 | 158.00 |
| NEW DE10-0920-090-M5C | P○K● | 090 | 3.32 | 1.77 | 9.20 | 158.00 |
| NEW DE10-0930-090-M5C | P○K● | 090 | 3.31 | 1.78 | 9.30 | 158.00 |
| NEW DE10-0940-090-M5C | P○K● | 090 | 3.30 | 1.79 | 9.40 | 158.00 |
| NEW DE10-0950-095-M5C | P○K● | 095 | 3.53 | 1.85 | 9.50 | 158.00 |
| NEW DE10-0952-095-M5C | P○K● | 095 | 3.53 | 1.85 | 9.52 | 158.00 |
| NEW DE10-0960-095-M5C | P○K● | 095 | 3.52 | 1.86 | 9.60 | 158.00 |
| NEW DE10-0970-095-M5C | P○K● | 095 | 3.51 | 1.87 | 9.70 | 158.00 |
| NEW DE10-0980-095-M5C | P○K● | 095 | 3.50 | 1.88 | 9.80 | 158.00 |
| NEW DE10-0990-095-M5C | P○K● | 095 | 3.49 | 1.88 | 9.90 | 158.00 |
| NEW DE10-1000-100-M5C | P○K● | 100 | 3.71 | 1.94 | 10.00 | 158.00 |
| NEW DE10-1010-100-M5C | P○K● | 100 | 3.70 | 1.96 | 10.10 | 158.00 |
| NEW DE10-1020-100-M5C | P○K● | 100 | 3.69 | 1.97 | 10.20 | 158.00 |
| NEW DE10-1030-100-M5C | P○K● | 100 | 3.68 | 1.97 | 10.30 | 158.00 |
| NEW DE10-1040-100-M5C | P○K● | 100 | 3.67 | 1.98 | 10.40 | 158.00 |
| NEW DE10-1050-105-M5C | P○K● | 105 | 3.90 | 2.04 | 10.50 | 158.00 |
| NEW DE10-1060-105-M5C | P○K● | 105 | 3.89 | 2.05 | 10.60 | 158.00 |
| NEW DE10-1070-105-M5C | P○K● | 105 | 3.89 | 2.06 | 10.70 | 158.00 |
| NEW DE10-1080-105-M5C | P○K● | 105 | 3.88 | 2.07 | 10.80 | 158.00 |
| NEW DE10-1090-105-M5C | P○K● | 105 | 3.87 | 2.08 | 10.90 | 158.00 |
| NEW DE10-1100-110-M5C | P○K● | 110 | 4.09 | 2.14 | 11.00 | 158.00 |
| NEW DE10-1110-110-M5C | P○K● | 110 | 4.08 | 2.15 | 11.10 | 158.00 |
| NEW DE10-1111-110-M5C | P○K● | 110 | 4.08 | 2.15 | 11.11 | 158.00 |
| NEW DE10-1120-110-M5C | P○K● | 110 | 4.07 | 2.15 | 11.20 | 158.00 |
| NEW DE10-1130-110-M5C | P○K● | 110 | 4.06 | 2.16 | 11.30 | 158.00 |
| NEW DE10-1140-110-M5C | P○K● | 110 | 4.05 | 2.17 | 11.40 | 158.00 |
| NEW DE10-1150-115-M5C | P○K● | 115 | 4.27 | 2.23 | 11.50 | 158.00 |
| NEW DE10-1160-115-M5C | P○K● | 115 | 4.26 | 2.24 | 11.60 | 158.00 |
| NEW DE10-1170-115-M5C | P○K● | 115 | 4.25 | 2.25 | 11.70 | 158.00 |
● — первый выбор ○ — хороший выбор
