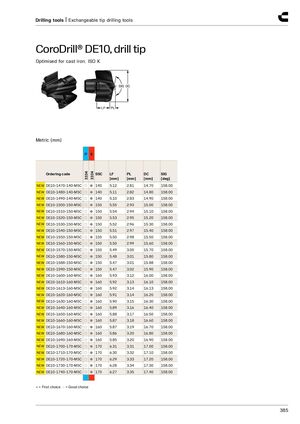

Drilling tools | Exchangeable tip drilling tools CoroDrill® DE10, drill tip​​ Optimised for cast iron, ISO K SIG DC LF PL Metric (mm) P K 3334 3334 Ordering code SSC LF PL DC SIG [mm] [mm] [mm] [deg] NEW DE10-1470-140-M5C ○ ● 140 5.12 2.81 14.70 158.00 NEW DE10-1480-140-M5C ○ ● 140 5.11 2.82 14.80 158.00 NEW DE10-1490-140-M5C ○ ● 140 5.10 2.83 14.90 158.00 NEW DE10-1500-150-M5C ○ ● 150 5.55 2.93 15.00 158.00 NEW DE10-1510-150-M5C ○ ● 150 5.54 2.94 15.10 158.00 NEW DE10-1520-150-M5C ○ ● 150 5.53 2.95 15.20 158.00 NEW DE10-1530-150-M5C ○ ● 150 5.52 2.96 15.30 158.00 NEW DE10-1540-150-M5C ○ ● 150 5.51 2.97 15.40 158.00 NEW DE10-1550-150-M5C ○ ● 150 5.50 2.98 15.50 158.00 NEW DE10-1560-150-M5C ○ ● 150 5.50 2.99 15.60 158.00 NEW DE10-1570-150-M5C ○ ● 150 5.49 3.00 15.70 158.00 NEW DE10-1580-150-M5C ○ ● 150 5.48 3.01 15.80 158.00 NEW DE10-1588-150-M5C ○ ● 150 5.47 3.01 15.88 158.00 NEW DE10-1590-150-M5C ○ ● 150 5.47 3.02 15.90 158.00 NEW DE10-1600-160-M5C ○ ● 160 5.93 3.12 16.00 158.00 NEW DE10-1610-160-M5C ○ ● 160 5.92 3.13 16.10 158.00 NEW DE10-1613-160-M5C ○ ● 160 5.92 3.14 16.13 158.00 NEW DE10-1620-160-M5C ○ ● 160 5.91 3.14 16.20 158.00 NEW DE10-1630-160-M5C ○ ● 160 5.90 3.15 16.30 158.00 NEW DE10-1640-160-M5C ○ ● 160 5.89 3.16 16.40 158.00 NEW DE10-1650-160-M5C ○ ● 160 5.88 3.17 16.50 158.00 NEW DE10-1660-160-M5C ○ ● 160 5.87 3.18 16.60 158.00 NEW DE10-1670-160-M5C ○ ● 160 5.87 3.19 16.70 158.00 NEW DE10-1680-160-M5C ○ ● 160 5.86 3.20 16.80 158.00 NEW DE10-1690-160-M5C ○ ● 160 5.85 3.20 16.90 158.00 NEW DE10-1700-170-M5C ○ ● 170 6.31 3.31 17.00 158.00 NEW DE10-1710-170-M5C ○ ● 170 6.30 3.32 17.10 158.00 NEW DE10-1720-170-M5C ○ ● 170 6.29 3.33 17.20 158.00 NEW DE10-1730-170-M5C ○ ● 170 6.28 3.34 17.30 158.00 NEW DE10-1740-170-M5C ○ ● 170 6.27 3.35 17.40 158.00 ● = First choice ○ = Good choice 385
