Инструменты сплошного сечения | Метчики

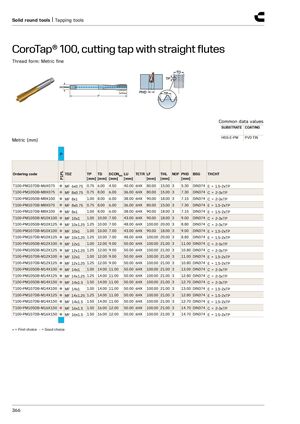

CoroTap® 100, метчик нарезной с прямыми канавками
Форма профиля резьбы: метрическая мелкая
Общие значения данных: Основа — HSS-E-PM, Покрытие — PVD TiN
Метрические размеры (мм)
| Артикул | TDZ | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T100-PM107DB-M6X075 ● | MF 6x0.75 | 0.75 | 6.00 | 4.50 | 40.00 | 6HX | 80.00 | 15.00 | 3 | 5.30 | DIN374 | E = 1.5-2xTP |
| T100-PM105DB-M8X075 ● | MF 8x0.75 | 0.75 | 8.00 | 6.00 | 36.00 | 6HX | 80.00 | 15.00 | 3 | 7.30 | DIN374 | C = 2-3xTP |
| T100-PM105DB-M8X100 ● | MF 8x1 | 1.00 | 8.00 | 6.00 | 38.00 | 6HX | 90.00 | 18.00 | 3 | 7.15 | DIN374 | C = 2-3xTP |
| T100-PM107DB-M8X075 ● | MF 8x0.75 | 0.75 | 8.00 | 6.00 | 36.00 | 6HX | 80.00 | 15.00 | 3 | 7.30 | DIN374 | E = 1.5-2xTP |
| T100-PM107DB-M8X100 ● | MF 8x1 | 1.00 | 8.00 | 6.00 | 38.00 | 6HX | 90.00 | 18.00 | 3 | 7.15 | DIN374 | E = 1.5-2xTP |
| T100-PM105DB-M10X100 ● | MF 10x1 | 1.00 | 10.00 | 7.00 | 43.00 | 6HX | 90.00 | 18.00 | 3 | 9.00 | DIN374 | C = 2-3xTP |
| T100-PM105DB-M10X125 ● | MF 10x1.25 | 1.25 | 10.00 | 7.00 | 48.00 | 6HX | 100.00 | 20.00 | 3 | 8.80 | DIN374 | C = 2-3xTP |
| T100-PM107DB-M10X100 ● | MF 10x1 | 1.00 | 10.00 | 7.00 | 43.00 | 6HX | 90.00 | 18.00 | 3 | 9.00 | DIN374 | E = 1.5-2xTP |
| T100-PM107DB-M10X125 ● | MF 10x1.25 | 1.25 | 10.00 | 7.00 | 48.00 | 6HX | 100.00 | 20.00 | 3 | 8.80 | DIN374 | E = 1.5-2xTP |
| T100-PM105DB-M12X100 ● | MF 12x1 | 1.00 | 12.00 | 9.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 11.00 | DIN374 | C = 2-3xTP |
| T100-PM105DB-M12X125 ● | MF 12x1.25 | 1.25 | 12.00 | 9.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 10.80 | DIN374 | C = 2-3xTP |
| T100-PM107DB-M12X100 ● | MF 12x1 | 1.00 | 12.00 | 9.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 11.00 | DIN374 | E = 1.5-2xTP |
| T100-PM107DB-M12X125 ● | MF 12x1.25 | 1.25 | 12.00 | 9.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 10.80 | DIN374 | E = 1.5-2xTP |
| T100-PM105DB-M14X100 ● | MF 14x1 | 1.00 | 14.00 | 11.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 13.00 | DIN374 | C = 2-3xTP |
| T100-PM105DB-M14X125 ● | MF 14x1.25 | 1.25 | 14.00 | 11.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 12.80 | DIN374 | C = 2-3xTP |
| T100-PM105DB-M14X150 ● | MF 14x1.5 | 1.50 | 14.00 | 11.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 12.70 | DIN374 | C = 2-3xTP |
| T100-PM107DB-M14X100 ● | MF 14x1 | 1.00 | 14.00 | 11.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 13.00 | DIN374 | E = 1.5-2xTP |
| T100-PM107DB-M14X125 ● | MF 14x1.25 | 1.25 | 14.00 | 11.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 12.80 | DIN374 | E = 1.5-2xTP |
| T100-PM107DB-M14X150 ● | MF 14x1.5 | 1.50 | 14.00 | 11.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 12.70 | DIN374 | E = 1.5-2xTP |
| T100-PM105DB-M16X150 ● | MF 16x1.5 | 1.50 | 16.00 | 12.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 14.70 | DIN374 | C = 2-3xTP |
| T100-PM107DB-M16X150 ● | MF 16x1.5 | 1.50 | 16.00 | 12.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 14.70 | DIN374 | E = 1.5-2xTP |
● = Первый выбор ○ = Хороший выбор
