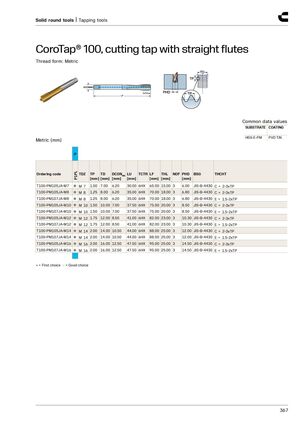

Инструменты сплошного сечения | Метчики
CoroTap® 100, метчик нарезной с прямыми канавками
Форма профиля резьбы: метрическая
Общие значения данных: Основа — HSS-E-PM, Покрытие — PVD TiN
Метрические размеры (мм)
| Артикул | TDZ | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T100-PM105JA-M7 ● | M 7 | 1.00 | 7.00 | 6.20 | 30.00 | 6HX | 65.00 | 15.00 | 3 | 6.00 | JIS-B-4430 | C = 2-3xTP |
| T100-PM105JA-M8 ● | M 8 | 1.25 | 8.00 | 6.20 | 35.00 | 6HX | 70.00 | 18.00 | 3 | 6.80 | JIS-B-4430 | C = 2-3xTP |
| T100-PM107JA-M8 ● | M 8 | 1.25 | 8.00 | 6.20 | 35.00 | 6HX | 70.00 | 18.00 | 3 | 6.80 | JIS-B-4430 | E = 1.5-2xTP |
| T100-PM105JA-M10 ● | M 10 | 1.50 | 10.00 | 7.00 | 37.50 | 6HX | 75.00 | 20.00 | 3 | 8.50 | JIS-B-4430 | C = 2-3xTP |
| T100-PM107JA-M10 ● | M 10 | 1.50 | 10.00 | 7.00 | 37.50 | 6HX | 75.00 | 20.00 | 3 | 8.50 | JIS-B-4430 | E = 1.5-2xTP |
| T100-PM105JA-M12 ● | M 12 | 1.75 | 12.00 | 8.50 | 41.00 | 6HX | 82.00 | 23.00 | 3 | 10.30 | JIS-B-4430 | C = 2-3xTP |
| T100-PM107JA-M12 ● | M 12 | 1.75 | 12.00 | 8.50 | 41.00 | 6HX | 82.00 | 23.00 | 3 | 10.30 | JIS-B-4430 | E = 1.5-2xTP |
| T100-PM105JA-M14 ● | M 14 | 2.00 | 14.00 | 10.50 | 44.00 | 6HX | 88.00 | 25.00 | 3 | 12.00 | JIS-B-4430 | C = 2-3xTP |
| T100-PM107JA-M14 ● | M 14 | 2.00 | 14.00 | 10.50 | 44.00 | 6HX | 88.00 | 25.00 | 3 | 12.00 | JIS-B-4430 | E = 1.5-2xTP |
| T100-PM105JA-M16 ● | M 16 | 2.00 | 16.00 | 12.50 | 47.50 | 6HX | 95.00 | 25.00 | 3 | 14.50 | JIS-B-4430 | C = 2-3xTP |
| T100-PM107JA-M16 ● | M 16 | 2.00 | 16.00 | 12.50 | 47.50 | 6HX | 95.00 | 25.00 | 3 | 14.50 | JIS-B-4430 | E = 1.5-2xTP |
● = Первый выбор ○ = Хороший выбор
