Инструменты сплошного сечения | Метчики

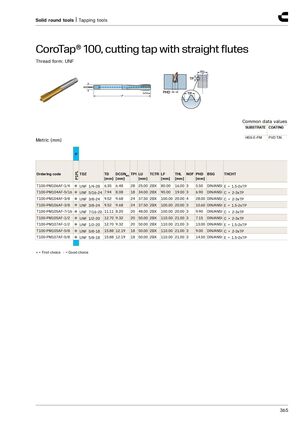

CoroTap® 100, метчик нарезной с прямыми канавками
Форма профиля резьбы: UNF
Общие значения данных: Основа — HSS-E-PM, Покрытие — PVD TiN
Метрические размеры (мм)
| Артикул | TDZ | TD [мм] | DCONMS [мм] | TPI | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T100-PM106AF-1/4 ● | UNF 1/4-28 | 6.35 | 6.48 | 28 | 25.00 | 2BX | 80.00 | 16.00 | 3 | 5.50 | DIN/ANSI | E = 1.5-2xTP |
| T100-PM104AF-5/16 ● | UNF 5/16-24 | 7.94 | 8.08 | 18 | 34.00 | 2BX | 90.00 | 19.00 | 3 | 6.90 | DIN/ANSI | C = 2-3xTP |
| T100-PM104AF-3/8 ● | UNF 3/8-24 | 9.52 | 9.68 | 24 | 37.50 | 2BX | 100.00 | 20.00 | 4 | 28.00 | DIN/ANSI | C = 2-3xTP |
| T100-PM106AF-3/8 ● | UNF 3/8-24 | 9.52 | 9.68 | 24 | 37.50 | 2BX | 100.00 | 20.00 | 3 | 10.60 | DIN/ANSI | E = 1.5-2xTP |
| T100-PM105AF-7/16 ● | UNF 7/16-20 | 11.11 | 8.20 | 20 | 48.00 | 2BX | 100.00 | 20.00 | 3 | 9.90 | DIN/ANSI | C = 2-3xTP |
| T100-PM105AF-1/2 ● | UNF 1/2-20 | 12.70 | 9.32 | 20 | 50.00 | 2BX | 110.00 | 21.00 | 3 | 7.15 | DIN/ANSI | C = 2-3xTP |
| T100-PM107AF-1/2 ● | UNF 1/2-20 | 12.70 | 9.32 | 20 | 50.00 | 2BX | 110.00 | 21.00 | 3 | 13.00 | DIN/ANSI | E = 1.5-2xTP |
| T100-PM105AF-5/8 ● | UNF 5/8-18 | 15.88 | 12.19 | 18 | 50.00 | 2BX | 110.00 | 21.00 | 3 | 9.00 | DIN/ANSI | C = 2-3xTP |
| T100-PM107AF-5/8 ● | UNF 5/8-18 | 15.88 | 12.19 | 18 | 50.00 | 2BX | 110.00 | 21.00 | 3 | 14.50 | DIN/ANSI | E = 1.5-2xTP |
● = Первый выбор ○ = Хороший выбор
