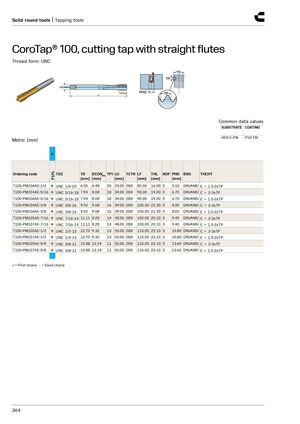

Инструменты сплошного сечения | Метчики
CoroTap® 100, метчик нарезной с прямыми канавками
Форма профиля резьбы: UNC
Общие значения данных: Основа — HSS-E-PM, Покрытие — PVD TiN
Метрические размеры (мм)
| Артикул | TDZ | TD [мм] | DCONMS [мм] | TPI | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T100-PM106AE-1/4 ● | UNC 1/4-20 | 6.35 | 6.48 | 20 | 25.00 | 2BX | 80.00 | 16.00 | 3 | 5.10 | DIN/ANSI | E = 1.5-2xTP |
| T100-PM104AE-5/16 ● | UNC 5/16-18 | 7.94 | 8.08 | 18 | 34.00 | 2BX | 90.00 | 19.00 | 3 | 6.70 | DIN/ANSI | C = 2-3xTP |
| T100-PM106AE-5/16 ● | UNC 5/16-18 | 7.94 | 8.08 | 18 | 34.00 | 2BX | 90.00 | 19.00 | 3 | 6.70 | DIN/ANSI | E = 1.5-2xTP |
| T100-PM104AE-3/8 ● | UNC 3/8-16 | 9.52 | 9.68 | 16 | 39.00 | 2BX | 100.00 | 21.30 | 3 | 8.00 | DIN/ANSI | C = 2-3xTP |
| T100-PM106AE-3/8 ● | UNC 3/8-16 | 9.52 | 9.68 | 16 | 39.00 | 2BX | 100.00 | 21.30 | 3 | 8.00 | DIN/ANSI | E = 1.5-2xTP |
| T100-PM105AE-7/16 ● | UNC 7/16-14 | 11.11 | 8.20 | 14 | 48.00 | 2BX | 100.00 | 20.10 | 3 | 9.40 | DIN/ANSI | C = 2-3xTP |
| T100-PM107AE-7/16 ● | UNC 7/16-14 | 11.11 | 8.20 | 14 | 48.00 | 2BX | 100.00 | 20.10 | 3 | 9.40 | DIN/ANSI | E = 1.5-2xTP |
| T100-PM105AE-1/2 ● | UNC 1/2-13 | 12.70 | 9.32 | 13 | 55.00 | 2BX | 110.00 | 23.10 | 3 | 10.80 | DIN/ANSI | C = 2-3xTP |
| T100-PM107AE-1/2 ● | UNC 1/2-13 | 12.70 | 9.32 | 13 | 55.00 | 2BX | 110.00 | 23.10 | 3 | 10.80 | DIN/ANSI | E = 1.5-2xTP |
| T100-PM105AE-5/8 ● | UNC 5/8-11 | 15.88 | 12.19 | 11 | 55.00 | 2BX | 110.00 | 23.10 | 3 | 13.60 | DIN/ANSI | C = 2-3xTP |
| T100-PM107AE-5/8 ● | UNC 5/8-11 | 15.88 | 12.19 | 11 | 55.00 | 2BX | 110.00 | 23.10 | 3 | 13.60 | DIN/ANSI | E = 1.5-2xTP |
● = Первый выбор ○ = Хороший выбор
