Резцы | Сменные пластины для точения

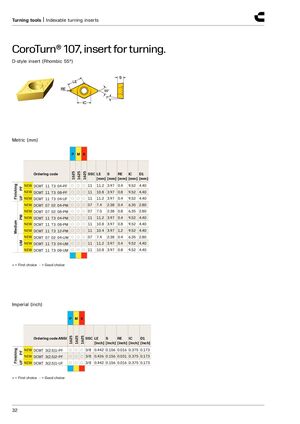

CoroTurn® 107, пластина для точения
Пластина типа D (ромб 55°)
Метрическая система (мм)
Финишная обработка
| Код заказа | P | M | K | SSC | LE | S | RE | IC | D1 |
|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | |||||||
| NEW DCMT 11 T3 04-PF | ○ | ○ | ○ | 11 | 11.2 | 3.97 | 0.4 | 9.52 | 4.40 |
| NEW DCMT 11 T3 08-PF | ○ | ○ | ○ | 11 | 10.8 | 3.97 | 0.8 | 9.52 | 4.40 |
| NEW DCMT 11 T3 04-UF | ○ | ○ | ○ | 11 | 11.2 | 3.97 | 0.4 | 9.52 | 4.40 |
Средний
| Код заказа | P | M | K | SSC | LE | S | RE | IC | D1 |
|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | |||||||
| NEW DCMT 07 02 04-PM | ○ | ○ | ○ | 07 | 7.4 | 2.38 | 0.4 | 6.35 | 2.80 |
| NEW DCMT 07 02 08-PM | ○ | ○ | ○ | 07 | 7.0 | 2.38 | 0.8 | 6.35 | 2.80 |
| NEW DCMT 11 T3 04-PM | ○ | ○ | ○ | 11 | 11.2 | 3.97 | 0.4 | 9.52 | 4.40 |
| NEW DCMT 11 T3 08-PM | ○ | ○ | ○ | 11 | 10.8 | 3.97 | 0.8 | 9.52 | 4.40 |
| NEW DCMT 11 T3 12-PM | ○ | ○ | ○ | 11 | 10.4 | 3.97 | 1.2 | 9.52 | 4.40 |
| NEW DCMT 07 02 04-UM | ○ | ○ | ○ | 07 | 7.4 | 2.38 | 0.4 | 6.35 | 2.80 |
| NEW DCMT 11 T3 04-UM | ○ | ○ | ○ | 11 | 11.2 | 3.97 | 0.4 | 9.52 | 4.40 |
| NEW DCMT 11 T3 08-UM | ○ | ○ | ○ | 11 | 10.8 | 3.97 | 0.8 | 9.52 | 4.40 |
● = Первый выбор ○ = Хороший выбор
Имперская система (дюймы)
Финишная обработка
| Код заказа ANSI | P | M | K | SSC | LE | S | RE | IC | D1 |
|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | |||||||
| NEW DCMT 3(2.5)1-PF | ○ | ○ | ○ | 3/8 | 0.442 | 0.156 | 0.016 | 0.375 | 0.173 |
| NEW DCMT 3(2.5)2-PF | ○ | ○ | ○ | 3/8 | 0.426 | 0.156 | 0.031 | 0.375 | 0.173 |
| NEW DCMT 3(2.5)1-UF | ○ | ○ | ○ | 3/8 | 0.442 | 0.156 | 0.016 | 0.375 | 0.173 |
● = Первый выбор ○ = Хороший выбор
