Инструменты круглого сечения | Сверловые инструменты

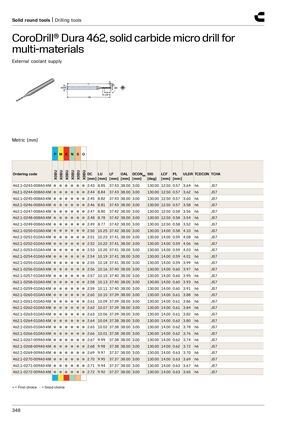

CoroDrill® Dura 462, микросверло из твердого сплава для обработки различных материалов
Подвод охлаждающей жидкости снаружи
Метрические размеры (мм)
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0243-008A0-XM | 2.43 | 8.85 | 37.43 | 38.00 | 3.00 | 130.00 | 12.50 | 0.57 | 3.64 | h6 | JS7 |
| 462.1-0244-008A0-XM | 2.44 | 8.84 | 37.43 | 38.00 | 3.00 | 130.00 | 12.50 | 0.57 | 3.62 | h6 | JS7 |
| 462.1-0245-008A0-XM | 2.45 | 8.82 | 37.43 | 38.00 | 3.00 | 130.00 | 12.50 | 0.57 | 3.60 | h6 | JS7 |
| 462.1-0246-008A0-XM | 2.46 | 8.81 | 37.43 | 38.00 | 3.00 | 130.00 | 12.50 | 0.57 | 3.58 | h6 | JS7 |
| 462.1-0247-008A0-XM | 2.47 | 8.80 | 37.42 | 38.00 | 3.00 | 130.00 | 12.50 | 0.58 | 3.56 | h6 | JS7 |
| 462.1-0248-008A0-XM | 2.48 | 8.78 | 37.42 | 38.00 | 3.00 | 130.00 | 12.50 | 0.58 | 3.54 | h6 | JS7 |
| 462.1-0249-008A0-XM | 2.49 | 8.77 | 37.42 | 38.00 | 3.00 | 130.00 | 12.50 | 0.58 | 3.52 | h6 | JS7 |
| 462.1-0250-010A0-XM | 2.50 | 10.25 | 37.42 | 38.00 | 3.00 | 130.00 | 14.00 | 0.58 | 4.10 | h6 | JS7 |
| 462.1-0251-010A0-XM | 2.51 | 10.23 | 37.41 | 38.00 | 3.00 | 130.00 | 14.00 | 0.59 | 4.08 | h6 | JS7 |
| 462.1-0252-010A0-XM | 2.52 | 10.22 | 37.41 | 38.00 | 3.00 | 130.00 | 14.00 | 0.59 | 4.06 | h6 | JS7 |
| 462.1-0253-010A0-XM | 2.53 | 10.20 | 37.41 | 38.00 | 3.00 | 130.00 | 14.00 | 0.59 | 4.03 | h6 | JS7 |
| 462.1-0254-010A0-XM | 2.54 | 10.19 | 37.41 | 38.00 | 3.00 | 130.00 | 14.00 | 0.59 | 4.01 | h6 | JS7 |
| 462.1-0255-010A0-XM | 2.55 | 10.18 | 37.41 | 38.00 | 3.00 | 130.00 | 14.00 | 0.59 | 3.99 | h6 | JS7 |
| 462.1-0256-010A0-XM | 2.56 | 10.16 | 37.40 | 38.00 | 3.00 | 130.00 | 14.00 | 0.60 | 3.97 | h6 | JS7 |
| 462.1-0257-010A0-XM | 2.57 | 10.15 | 37.40 | 38.00 | 3.00 | 130.00 | 14.00 | 0.60 | 3.95 | h6 | JS7 |
| 462.1-0258-010A0-XM | 2.58 | 10.13 | 37.40 | 38.00 | 3.00 | 130.00 | 14.00 | 0.60 | 3.93 | h6 | JS7 |
| 462.1-0259-010A0-XM | 2.59 | 10.11 | 37.40 | 38.00 | 3.00 | 130.00 | 14.00 | 0.60 | 3.91 | h6 | JS7 |
| 462.1-0260-010A0-XM | 2.60 | 10.10 | 37.39 | 38.00 | 3.00 | 130.00 | 14.00 | 0.61 | 3.88 | h6 | JS7 |
| 462.1-0261-010A0-XM | 2.61 | 10.09 | 37.39 | 38.00 | 3.00 | 130.00 | 14.00 | 0.61 | 3.86 | h6 | JS7 |
| 462.1-0262-010A0-XM | 2.62 | 10.07 | 37.39 | 38.00 | 3.00 | 130.00 | 14.00 | 0.61 | 3.84 | h6 | JS7 |
| 462.1-0263-010A0-XM | 2.63 | 10.06 | 37.39 | 38.00 | 3.00 | 130.00 | 14.00 | 0.61 | 3.82 | h6 | JS7 |
| 462.1-0264-010A0-XM | 2.64 | 10.04 | 37.38 | 38.00 | 3.00 | 130.00 | 14.00 | 0.62 | 3.80 | h6 | JS7 |
| 462.1-0265-010A0-XM | 2.65 | 10.02 | 37.38 | 38.00 | 3.00 | 130.00 | 14.00 | 0.62 | 3.78 | h6 | JS7 |
| 462.1-0266-010A0-XM | 2.66 | 10.01 | 37.38 | 38.00 | 3.00 | 130.00 | 14.00 | 0.62 | 3.76 | h6 | JS7 |
| 462.1-0267-009A0-XM | 2.67 | 9.99 | 37.38 | 38.00 | 3.00 | 130.00 | 14.00 | 0.62 | 3.74 | h6 | JS7 |
| 462.1-0268-009A0-XM | 2.68 | 9.98 | 37.38 | 38.00 | 3.00 | 130.00 | 14.00 | 0.62 | 3.72 | h6 | JS7 |
| 462.1-0269-009A0-XM | 2.69 | 9.97 | 37.37 | 38.00 | 3.00 | 130.00 | 14.00 | 0.63 | 3.70 | h6 | JS7 |
| 462.1-0270-009A0-XM | 2.70 | 9.95 | 37.37 | 38.00 | 3.00 | 130.00 | 14.00 | 0.63 | 3.69 | h6 | JS7 |
| 462.1-0271-009A0-XM | 2.71 | 9.94 | 37.37 | 38.00 | 3.00 | 130.00 | 14.00 | 0.63 | 3.67 | h6 | JS7 |
| 462.1-0272-009A0-XM | 2.72 | 9.92 | 37.37 | 38.00 | 3.00 | 130.00 | 14.00 | 0.63 | 3.65 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
