Инструменты круглого сечения | Сверловые инструменты

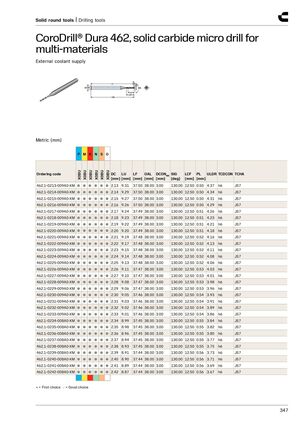

CoroDrill® Dura 462, микросверло из твердого сплава для обработки различных материалов
Подвод охлаждающей жидкости снаружи
Метрические размеры (мм)
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0213-009A0-XM | 2.13 | 9.31 | 37.50 | 38.00 | 3.00 | 130.00 | 12.50 | 0.50 | 4.37 | h6 | JS7 |
| 462.1-0214-009A0-XM | 2.14 | 9.29 | 37.50 | 38.00 | 3.00 | 130.00 | 12.50 | 0.50 | 4.34 | h6 | JS7 |
| 462.1-0215-009A0-XM | 2.15 | 9.27 | 37.50 | 38.00 | 3.00 | 130.00 | 12.50 | 0.50 | 4.31 | h6 | JS7 |
| 462.1-0216-009A0-XM | 2.16 | 9.26 | 37.50 | 38.00 | 3.00 | 130.00 | 12.50 | 0.50 | 4.29 | h6 | JS7 |
| 462.1-0217-009A0-XM | 2.17 | 9.24 | 37.49 | 38.00 | 3.00 | 130.00 | 12.50 | 0.51 | 4.26 | h6 | JS7 |
| 462.1-0218-009A0-XM | 2.18 | 9.23 | 37.49 | 38.00 | 3.00 | 130.00 | 12.50 | 0.51 | 4.23 | h6 | JS7 |
| 462.1-0219-009A0-XM | 2.19 | 9.22 | 37.49 | 38.00 | 3.00 | 130.00 | 12.50 | 0.51 | 4.21 | h6 | JS7 |
| 462.1-0220-009A0-XM | 2.20 | 9.20 | 37.49 | 38.00 | 3.00 | 130.00 | 12.50 | 0.51 | 4.18 | h6 | JS7 |
| 462.1-0221-009A0-XM | 2.21 | 9.19 | 37.48 | 38.00 | 3.00 | 130.00 | 12.50 | 0.52 | 4.16 | h6 | JS7 |
| 462.1-0222-009A0-XM | 2.22 | 9.17 | 37.48 | 38.00 | 3.00 | 130.00 | 12.50 | 0.52 | 4.13 | h6 | JS7 |
| 462.1-0223-009A0-XM | 2.23 | 9.15 | 37.48 | 38.00 | 3.00 | 130.00 | 12.50 | 0.52 | 4.11 | h6 | JS7 |
| 462.1-0224-009A0-XM | 2.24 | 9.14 | 37.48 | 38.00 | 3.00 | 130.00 | 12.50 | 0.52 | 4.08 | h6 | JS7 |
| 462.1-0225-009A0-XM | 2.25 | 9.13 | 37.48 | 38.00 | 3.00 | 130.00 | 12.50 | 0.52 | 4.06 | h6 | JS7 |
| 462.1-0226-009A0-XM | 2.26 | 9.11 | 37.47 | 38.00 | 3.00 | 130.00 | 12.50 | 0.53 | 4.03 | h6 | JS7 |
| 462.1-0227-009A0-XM | 2.27 | 9.10 | 37.47 | 38.00 | 3.00 | 130.00 | 12.50 | 0.53 | 4.01 | h6 | JS7 |
| 462.1-0228-009A0-XM | 2.28 | 9.08 | 37.47 | 38.00 | 3.00 | 130.00 | 12.50 | 0.53 | 3.98 | h6 | JS7 |
| 462.1-0229-009A0-XM | 2.29 | 9.06 | 37.47 | 38.00 | 3.00 | 130.00 | 12.50 | 0.53 | 3.96 | h6 | JS7 |
| 462.1-0230-009A0-XM | 2.30 | 9.05 | 37.46 | 38.00 | 3.00 | 130.00 | 12.50 | 0.54 | 3.93 | h6 | JS7 |
| 462.1-0231-009A0-XM | 2.31 | 9.03 | 37.46 | 38.00 | 3.00 | 130.00 | 12.50 | 0.54 | 3.91 | h6 | JS7 |
| 462.1-0232-009A0-XM | 2.32 | 9.02 | 37.46 | 38.00 | 3.00 | 130.00 | 12.50 | 0.54 | 3.89 | h6 | JS7 |
| 462.1-0233-009A0-XM | 2.33 | 9.01 | 37.46 | 38.00 | 3.00 | 130.00 | 12.50 | 0.54 | 3.86 | h6 | JS7 |
| 462.1-0234-008A0-XM | 2.34 | 8.99 | 37.45 | 38.00 | 3.00 | 130.00 | 12.50 | 0.55 | 3.84 | h6 | JS7 |
| 462.1-0235-008A0-XM | 2.35 | 8.98 | 37.45 | 38.00 | 3.00 | 130.00 | 12.50 | 0.55 | 3.82 | h6 | JS7 |
| 462.1-0236-008A0-XM | 2.36 | 8.96 | 37.45 | 38.00 | 3.00 | 130.00 | 12.50 | 0.55 | 3.80 | h6 | JS7 |
| 462.1-0237-008A0-XM | 2.37 | 8.94 | 37.45 | 38.00 | 3.00 | 130.00 | 12.50 | 0.55 | 3.77 | h6 | JS7 |
| 462.1-0238-008A0-XM | 2.38 | 8.93 | 37.45 | 38.00 | 3.00 | 130.00 | 12.50 | 0.55 | 3.75 | h6 | JS7 |
| 462.1-0239-008A0-XM | 2.39 | 8.91 | 37.44 | 38.00 | 3.00 | 130.00 | 12.50 | 0.56 | 3.73 | h6 | JS7 |
| 462.1-0240-008A0-XM | 2.40 | 8.90 | 37.44 | 38.00 | 3.00 | 130.00 | 12.50 | 0.56 | 3.71 | h6 | JS7 |
| 462.1-0241-008A0-XM | 2.41 | 8.89 | 37.44 | 38.00 | 3.00 | 130.00 | 12.50 | 0.56 | 3.69 | h6 | JS7 |
| 462.1-0242-008A0-XM | 2.42 | 8.87 | 37.44 | 38.00 | 3.00 | 130.00 | 12.50 | 0.56 | 3.67 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
