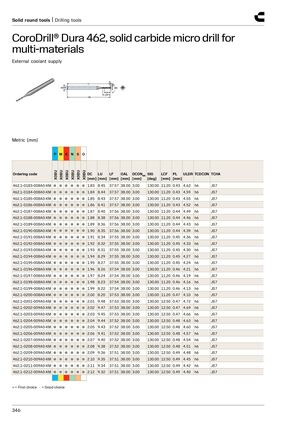

Твердые круглые инструменты | Инструменты для сверления
CoroDrill® Dura 462, сверло микро из твердого сплава для многоматериальной обработки
Подача охлаждающей жидкости снаружи
Метрическая система (мм)
Материальные группы: P M K N S O
Вариант для всех групп: X0BU
| Код заказа | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0183-008A0-XM | 1.83 | 8.45 | 37.57 | 38.00 | 3.00 | 130.00 | 11.20 | 0.43 | 4.62 | h6 | JS7 |
| 462.1-0184-008A0-XM | 1.84 | 8.44 | 37.57 | 38.00 | 3.00 | 130.00 | 11.20 | 0.43 | 4.59 | h6 | JS7 |
| 462.1-0185-008A0-XM | 1.85 | 8.43 | 37.57 | 38.00 | 3.00 | 130.00 | 11.20 | 0.43 | 4.55 | h6 | JS7 |
| 462.1-0186-008A0-XM | 1.86 | 8.41 | 37.57 | 38.00 | 3.00 | 130.00 | 11.20 | 0.43 | 4.52 | h6 | JS7 |
| 462.1-0187-008A0-XM | 1.87 | 8.40 | 37.56 | 38.00 | 3.00 | 130.00 | 11.20 | 0.44 | 4.49 | h6 | JS7 |
| 462.1-0188-008A0-XM | 1.88 | 8.38 | 37.56 | 38.00 | 3.00 | 130.00 | 11.20 | 0.44 | 4.46 | h6 | JS7 |
| 462.1-0189-008A0-XM | 1.89 | 8.36 | 37.56 | 38.00 | 3.00 | 130.00 | 11.20 | 0.44 | 4.43 | h6 | JS7 |
| 462.1-0190-008A0-XM | 1.90 | 8.35 | 37.56 | 38.00 | 3.00 | 130.00 | 11.20 | 0.44 | 4.39 | h6 | JS7 |
| 462.1-0191-008A0-XM | 1.91 | 8.34 | 37.55 | 38.00 | 3.00 | 130.00 | 11.20 | 0.45 | 4.36 | h6 | JS7 |
| 462.1-0192-008A0-XM | 1.92 | 8.32 | 37.55 | 38.00 | 3.00 | 130.00 | 11.20 | 0.45 | 4.33 | h6 | JS7 |
| 462.1-0193-008A0-XM | 1.93 | 8.31 | 37.55 | 38.00 | 3.00 | 130.00 | 11.20 | 0.45 | 4.30 | h6 | JS7 |
| 462.1-0194-008A0-XM | 1.94 | 8.29 | 37.55 | 38.00 | 3.00 | 130.00 | 11.20 | 0.45 | 4.27 | h6 | JS7 |
| 462.1-0195-008A0-XM | 1.95 | 8.27 | 37.55 | 38.00 | 3.00 | 130.00 | 11.20 | 0.45 | 4.24 | h6 | JS7 |
| 462.1-0196-008A0-XM | 1.96 | 8.26 | 37.54 | 38.00 | 3.00 | 130.00 | 11.20 | 0.46 | 4.21 | h6 | JS7 |
| 462.1-0197-008A0-XM | 1.97 | 8.24 | 37.54 | 38.00 | 3.00 | 130.00 | 11.20 | 0.46 | 4.19 | h6 | JS7 |
| 462.1-0198-008A0-XM | 1.98 | 8.23 | 37.54 | 38.00 | 3.00 | 130.00 | 11.20 | 0.46 | 4.16 | h6 | JS7 |
| 462.1-0199-008A0-XM | 1.99 | 8.22 | 37.54 | 38.00 | 3.00 | 130.00 | 11.20 | 0.46 | 4.13 | h6 | JS7 |
| 462.1-0200-008A0-XM | 2.00 | 8.20 | 37.53 | 38.00 | 3.00 | 130.00 | 11.20 | 0.47 | 4.10 | h6 | JS7 |
| 462.1-0201-009A0-XM | 2.01 | 9.48 | 37.53 | 38.00 | 3.00 | 130.00 | 12.50 | 0.47 | 4.72 | h6 | JS7 |
| 462.1-0202-009A0-XM | 2.02 | 9.47 | 37.53 | 38.00 | 3.00 | 130.00 | 12.50 | 0.47 | 4.69 | h6 | JS7 |
| 462.1-0203-009A0-XM | 2.03 | 9.45 | 37.53 | 38.00 | 3.00 | 130.00 | 12.50 | 0.47 | 4.66 | h6 | JS7 |
| 462.1-0204-009A0-XM | 2.04 | 9.44 | 37.52 | 38.00 | 3.00 | 130.00 | 12.50 | 0.48 | 4.63 | h6 | JS7 |
| 462.1-0205-009A0-XM | 2.05 | 9.43 | 37.52 | 38.00 | 3.00 | 130.00 | 12.50 | 0.48 | 4.60 | h6 | JS7 |
| 462.1-0206-009A0-XM | 2.06 | 9.41 | 37.52 | 38.00 | 3.00 | 130.00 | 12.50 | 0.48 | 4.57 | h6 | JS7 |
| 462.1-0207-009A0-XM | 2.07 | 9.40 | 37.52 | 38.00 | 3.00 | 130.00 | 12.50 | 0.48 | 4.54 | h6 | JS7 |
| 462.1-0208-009A0-XM | 2.08 | 9.38 | 37.52 | 38.00 | 3.00 | 130.00 | 12.50 | 0.48 | 4.51 | h6 | JS7 |
| 462.1-0209-009A0-XM | 2.09 | 9.36 | 37.51 | 38.00 | 3.00 | 130.00 | 12.50 | 0.49 | 4.48 | h6 | JS7 |
| 462.1-0210-009A0-XM | 2.10 | 9.35 | 37.51 | 38.00 | 3.00 | 130.00 | 12.50 | 0.49 | 4.45 | h6 | JS7 |
| 462.1-0211-009A0-XM | 2.11 | 9.34 | 37.51 | 38.00 | 3.00 | 130.00 | 12.50 | 0.49 | 4.42 | h6 | JS7 |
| 462.1-0212-009A0-XM | 2.12 | 9.32 | 37.51 | 38.00 | 3.00 | 130.00 | 12.50 | 0.49 | 4.40 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
