Твердые круглые инструменты | Инструменты для сверления

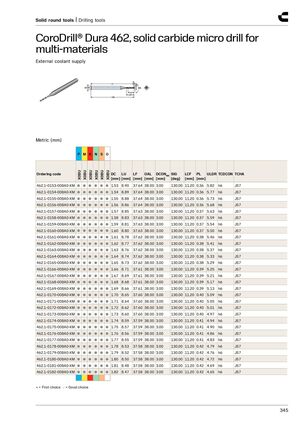

CoroDrill® Dura 462, сверло микро из твердого сплава для многоматериальной обработки
Подача охлаждающей жидкости снаружи
Метрическая система (мм)
Материальные группы: P M K N S O
Вариант для всех групп: X0BU
| Код заказа | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0153-008A0-XM | 1.53 | 8.90 | 37.64 | 38.00 | 3.00 | 130.00 | 11.20 | 0.36 | 5.82 | h6 | JS7 |
| 462.1-0154-008A0-XM | 1.54 | 8.89 | 37.64 | 38.00 | 3.00 | 130.00 | 11.20 | 0.36 | 5.77 | h6 | JS7 |
| 462.1-0155-008A0-XM | 1.55 | 8.88 | 37.64 | 38.00 | 3.00 | 130.00 | 11.20 | 0.36 | 5.73 | h6 | JS7 |
| 462.1-0156-008A0-XM | 1.56 | 8.86 | 37.64 | 38.00 | 3.00 | 130.00 | 11.20 | 0.36 | 5.68 | h6 | JS7 |
| 462.1-0157-008A0-XM | 1.57 | 8.85 | 37.63 | 38.00 | 3.00 | 130.00 | 11.20 | 0.37 | 5.63 | h6 | JS7 |
| 462.1-0158-008A0-XM | 1.58 | 8.83 | 37.63 | 38.00 | 3.00 | 130.00 | 11.20 | 0.37 | 5.59 | h6 | JS7 |
| 462.1-0159-008A0-XM | 1.59 | 8.81 | 37.63 | 38.00 | 3.00 | 130.00 | 11.20 | 0.37 | 5.54 | h6 | JS7 |
| 462.1-0160-008A0-XM | 1.60 | 8.80 | 37.63 | 38.00 | 3.00 | 130.00 | 11.20 | 0.37 | 5.50 | h6 | JS7 |
| 462.1-0161-008A0-XM | 1.61 | 8.78 | 37.62 | 38.00 | 3.00 | 130.00 | 11.20 | 0.38 | 5.46 | h6 | JS7 |
| 462.1-0162-008A0-XM | 1.62 | 8.77 | 37.62 | 38.00 | 3.00 | 130.00 | 11.20 | 0.38 | 5.41 | h6 | JS7 |
| 462.1-0163-008A0-XM | 1.63 | 8.76 | 37.62 | 38.00 | 3.00 | 130.00 | 11.20 | 0.38 | 5.37 | h6 | JS7 |
| 462.1-0164-008A0-XM | 1.64 | 8.74 | 37.62 | 38.00 | 3.00 | 130.00 | 11.20 | 0.38 | 5.33 | h6 | JS7 |
| 462.1-0165-008A0-XM | 1.65 | 8.73 | 37.62 | 38.00 | 3.00 | 130.00 | 11.20 | 0.38 | 5.29 | h6 | JS7 |
| 462.1-0166-008A0-XM | 1.66 | 8.71 | 37.61 | 38.00 | 3.00 | 130.00 | 11.20 | 0.39 | 5.25 | h6 | JS7 |
| 462.1-0167-008A0-XM | 1.67 | 8.69 | 37.61 | 38.00 | 3.00 | 130.00 | 11.20 | 0.39 | 5.21 | h6 | JS7 |
| 462.1-0168-008A0-XM | 1.68 | 8.68 | 37.61 | 38.00 | 3.00 | 130.00 | 11.20 | 0.39 | 5.17 | h6 | JS7 |
| 462.1-0169-008A0-XM | 1.69 | 8.66 | 37.61 | 38.00 | 3.00 | 130.00 | 11.20 | 0.39 | 5.13 | h6 | JS7 |
| 462.1-0170-008A0-XM | 1.70 | 8.65 | 37.60 | 38.00 | 3.00 | 130.00 | 11.20 | 0.40 | 5.09 | h6 | JS7 |
| 462.1-0171-008A0-XM | 1.71 | 8.64 | 37.60 | 38.00 | 3.00 | 130.00 | 11.20 | 0.40 | 5.05 | h6 | JS7 |
| 462.1-0172-008A0-XM | 1.72 | 8.62 | 37.60 | 38.00 | 3.00 | 130.00 | 11.20 | 0.40 | 5.01 | h6 | JS7 |
| 462.1-0173-008A0-XM | 1.73 | 8.60 | 37.60 | 38.00 | 3.00 | 130.00 | 11.20 | 0.40 | 4.97 | h6 | JS7 |
| 462.1-0174-008A0-XM | 1.74 | 8.59 | 37.59 | 38.00 | 3.00 | 130.00 | 11.20 | 0.41 | 4.94 | h6 | JS7 |
| 462.1-0175-008A0-XM | 1.75 | 8.57 | 37.59 | 38.00 | 3.00 | 130.00 | 11.20 | 0.41 | 4.90 | h6 | JS7 |
| 462.1-0176-008A0-XM | 1.76 | 8.56 | 37.59 | 38.00 | 3.00 | 130.00 | 11.20 | 0.41 | 4.86 | h6 | JS7 |
| 462.1-0177-008A0-XM | 1.77 | 8.55 | 37.59 | 38.00 | 3.00 | 130.00 | 11.20 | 0.41 | 4.83 | h6 | JS7 |
| 462.1-0178-008A0-XM | 1.78 | 8.53 | 37.58 | 38.00 | 3.00 | 130.00 | 11.20 | 0.42 | 4.79 | h6 | JS7 |
| 462.1-0179-008A0-XM | 1.79 | 8.52 | 37.58 | 38.00 | 3.00 | 130.00 | 11.20 | 0.42 | 4.76 | h6 | JS7 |
| 462.1-0180-008A0-XM | 1.80 | 8.50 | 37.58 | 38.00 | 3.00 | 130.00 | 11.20 | 0.42 | 4.72 | h6 | JS7 |
| 462.1-0181-008A0-XM | 1.81 | 8.48 | 37.58 | 38.00 | 3.00 | 130.00 | 11.20 | 0.42 | 4.69 | h6 | JS7 |
| 462.1-0182-008A0-XM | 1.82 | 8.47 | 37.58 | 38.00 | 3.00 | 130.00 | 11.20 | 0.42 | 4.65 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
