Инструменты круглого сечения | Сверловые инструменты

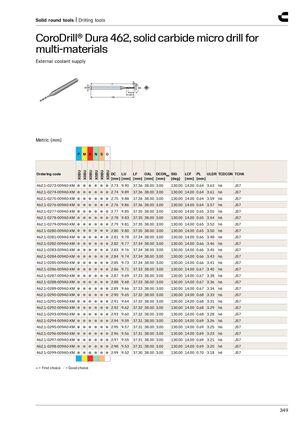

CoroDrill® Dura 462, микросверло из твердого сплава для обработки различных материалов
Подвод охлаждающей жидкости снаружи
Метрические размеры (мм)
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0273-009A0-XM | 2.73 | 9.90 | 37.36 | 38.00 | 3.00 | 130.00 | 14.00 | 0.64 | 3.63 | h6 | JS7 |
| 462.1-0274-009A0-XM | 2.74 | 9.89 | 37.36 | 38.00 | 3.00 | 130.00 | 14.00 | 0.64 | 3.61 | h6 | JS7 |
| 462.1-0275-009A0-XM | 2.75 | 9.88 | 37.36 | 38.00 | 3.00 | 130.00 | 14.00 | 0.64 | 3.59 | h6 | JS7 |
| 462.1-0276-009A0-XM | 2.76 | 9.86 | 37.36 | 38.00 | 3.00 | 130.00 | 14.00 | 0.64 | 3.57 | h6 | JS7 |
| 462.1-0277-009A0-XM | 2.77 | 9.85 | 37.35 | 38.00 | 3.00 | 130.00 | 14.00 | 0.65 | 3.55 | h6 | JS7 |
| 462.1-0278-009A0-XM | 2.78 | 9.83 | 37.35 | 38.00 | 3.00 | 130.00 | 14.00 | 0.65 | 3.54 | h6 | JS7 |
| 462.1-0279-009A0-XM | 2.79 | 9.81 | 37.35 | 38.00 | 3.00 | 130.00 | 14.00 | 0.65 | 3.52 | h6 | JS7 |
| 462.1-0280-009A0-XM | 2.80 | 9.80 | 37.35 | 38.00 | 3.00 | 130.00 | 14.00 | 0.65 | 3.50 | h6 | JS7 |
| 462.1-0281-009A0-XM | 2.81 | 9.78 | 37.34 | 38.00 | 3.00 | 130.00 | 14.00 | 0.66 | 3.48 | h6 | JS7 |
| 462.1-0282-009A0-XM | 2.82 | 9.77 | 37.34 | 38.00 | 3.00 | 130.00 | 14.00 | 0.66 | 3.46 | h6 | JS7 |
| 462.1-0283-009A0-XM | 2.83 | 9.76 | 37.34 | 38.00 | 3.00 | 130.00 | 14.00 | 0.66 | 3.45 | h6 | JS7 |
| 462.1-0284-009A0-XM | 2.84 | 9.74 | 37.34 | 38.00 | 3.00 | 130.00 | 14.00 | 0.66 | 3.43 | h6 | JS7 |
| 462.1-0285-009A0-XM | 2.85 | 9.73 | 37.34 | 38.00 | 3.00 | 130.00 | 14.00 | 0.66 | 3.41 | h6 | JS7 |
| 462.1-0286-009A0-XM | 2.86 | 9.71 | 37.33 | 38.00 | 3.00 | 130.00 | 14.00 | 0.67 | 3.40 | h6 | JS7 |
| 462.1-0287-009A0-XM | 2.87 | 9.69 | 37.33 | 38.00 | 3.00 | 130.00 | 14.00 | 0.67 | 3.38 | h6 | JS7 |
| 462.1-0288-009A0-XM | 2.88 | 9.68 | 37.33 | 38.00 | 3.00 | 130.00 | 14.00 | 0.67 | 3.36 | h6 | JS7 |
| 462.1-0289-009A0-XM | 2.89 | 9.66 | 37.33 | 38.00 | 3.00 | 130.00 | 14.00 | 0.67 | 3.34 | h6 | JS7 |
| 462.1-0290-009A0-XM | 2.90 | 9.65 | 37.32 | 38.00 | 3.00 | 130.00 | 14.00 | 0.68 | 3.33 | h6 | JS7 |
| 462.1-0291-009A0-XM | 2.91 | 9.64 | 37.32 | 38.00 | 3.00 | 130.00 | 14.00 | 0.68 | 3.31 | h6 | JS7 |
| 462.1-0292-009A0-XM | 2.92 | 9.62 | 37.32 | 38.00 | 3.00 | 130.00 | 14.00 | 0.68 | 3.29 | h6 | JS7 |
| 462.1-0293-009A0-XM | 2.93 | 9.60 | 37.32 | 38.00 | 3.00 | 130.00 | 14.00 | 0.68 | 3.28 | h6 | JS7 |
| 462.1-0294-009A0-XM | 2.94 | 9.59 | 37.31 | 38.00 | 3.00 | 130.00 | 14.00 | 0.69 | 3.26 | h6 | JS7 |
| 462.1-0295-009A0-XM | 2.95 | 9.57 | 37.31 | 38.00 | 3.00 | 130.00 | 14.00 | 0.69 | 3.25 | h6 | JS7 |
| 462.1-0296-009A0-XM | 2.96 | 9.56 | 37.31 | 38.00 | 3.00 | 130.00 | 14.00 | 0.69 | 3.23 | h6 | JS7 |
| 462.1-0297-009A0-XM | 2.97 | 9.55 | 37.31 | 38.00 | 3.00 | 130.00 | 14.00 | 0.69 | 3.21 | h6 | JS7 |
| 462.1-0298-009A0-XM | 2.98 | 9.53 | 37.31 | 38.00 | 3.00 | 130.00 | 14.00 | 0.69 | 3.20 | h6 | JS7 |
| 462.1-0299-009A0-XM | 2.99 | 9.52 | 37.30 | 38.00 | 3.00 | 130.00 | 14.00 | 0.70 | 3.18 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
