Инструменты круглого сечения | Сверловые инструменты

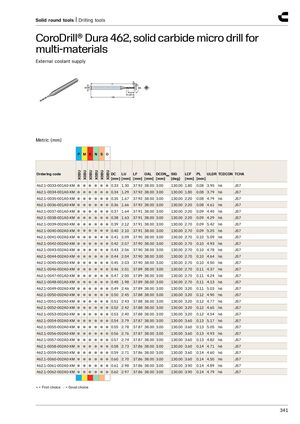

CoroDrill® Dura 462, микросверло из твердого сплава для обработки различных материалов
Подвод охлаждающей жидкости снаружи
Метрические размеры (мм)
Материалы: P, M, K, N, S, O
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0033-001A0-XM | 0.33 | 1.30 | 37.92 | 38.00 | 3.00 | 130.00 | 1.80 | 0.08 | 3.95 | h6 | JS7 |
| 462.1-0034-001A0-XM | 0.34 | 1.29 | 37.92 | 38.00 | 3.00 | 130.00 | 1.80 | 0.08 | 3.79 | h6 | JS7 |
| 462.1-0035-001A0-XM | 0.35 | 1.67 | 37.92 | 38.00 | 3.00 | 130.00 | 2.20 | 0.08 | 4.79 | h6 | JS7 |
| 462.1-0036-001A0-XM | 0.36 | 1.66 | 37.92 | 38.00 | 3.00 | 130.00 | 2.20 | 0.08 | 4.61 | h6 | JS7 |
| 462.1-0037-001A0-XM | 0.37 | 1.64 | 37.91 | 38.00 | 3.00 | 130.00 | 2.20 | 0.09 | 4.45 | h6 | JS7 |
| 462.1-0038-001A0-XM | 0.38 | 1.63 | 37.91 | 38.00 | 3.00 | 130.00 | 2.20 | 0.09 | 4.29 | h6 | JS7 |
| 462.1-0039-002A0-XM | 0.39 | 2.12 | 37.91 | 38.00 | 3.00 | 130.00 | 2.70 | 0.09 | 5.42 | h6 | JS7 |
| 462.1-0040-002A0-XM | 0.40 | 2.10 | 37.91 | 38.00 | 3.00 | 130.00 | 2.70 | 0.09 | 5.25 | h6 | JS7 |
| 462.1-0041-002A0-XM | 0.41 | 2.09 | 37.90 | 38.00 | 3.00 | 130.00 | 2.70 | 0.10 | 5.09 | h6 | JS7 |
| 462.1-0042-002A0-XM | 0.42 | 2.07 | 37.90 | 38.00 | 3.00 | 130.00 | 2.70 | 0.10 | 4.93 | h6 | JS7 |
| 462.1-0043-002A0-XM | 0.43 | 2.06 | 37.90 | 38.00 | 3.00 | 130.00 | 2.70 | 0.10 | 4.78 | h6 | JS7 |
| 462.1-0044-002A0-XM | 0.44 | 2.04 | 37.90 | 38.00 | 3.00 | 130.00 | 2.70 | 0.10 | 4.64 | h6 | JS7 |
| 462.1-0045-002A0-XM | 0.45 | 2.03 | 37.90 | 38.00 | 3.00 | 130.00 | 2.70 | 0.10 | 4.50 | h6 | JS7 |
| 462.1-0046-002A0-XM | 0.46 | 2.01 | 37.89 | 38.00 | 3.00 | 130.00 | 2.70 | 0.11 | 4.37 | h6 | JS7 |
| 462.1-0047-001A0-XM | 0.47 | 2.00 | 37.89 | 38.00 | 3.00 | 130.00 | 2.70 | 0.11 | 4.24 | h6 | JS7 |
| 462.1-0048-001A0-XM | 0.48 | 1.98 | 37.89 | 38.00 | 3.00 | 130.00 | 2.70 | 0.11 | 4.13 | h6 | JS7 |
| 462.1-0049-002A0-XM | 0.49 | 2.46 | 37.89 | 38.00 | 3.00 | 130.00 | 3.20 | 0.11 | 5.03 | h6 | JS7 |
| 462.1-0050-002A0-XM | 0.50 | 2.45 | 37.88 | 38.00 | 3.00 | 130.00 | 3.20 | 0.12 | 4.90 | h6 | JS7 |
| 462.1-0051-002A0-XM | 0.51 | 2.43 | 37.88 | 38.00 | 3.00 | 130.00 | 3.20 | 0.12 | 4.77 | h6 | JS7 |
| 462.1-0052-002A0-XM | 0.52 | 2.42 | 37.88 | 38.00 | 3.00 | 130.00 | 3.20 | 0.12 | 4.65 | h6 | JS7 |
| 462.1-0053-002A0-XM | 0.53 | 2.40 | 37.88 | 38.00 | 3.00 | 130.00 | 3.20 | 0.12 | 4.54 | h6 | JS7 |
| 462.1-0054-002A0-XM | 0.54 | 2.79 | 37.87 | 38.00 | 3.00 | 130.00 | 3.60 | 0.13 | 5.17 | h6 | JS7 |
| 462.1-0055-002A0-XM | 0.55 | 2.78 | 37.87 | 38.00 | 3.00 | 130.00 | 3.60 | 0.13 | 5.05 | h6 | JS7 |
| 462.1-0056-002A0-XM | 0.56 | 2.76 | 37.87 | 38.00 | 3.00 | 130.00 | 3.60 | 0.13 | 4.93 | h6 | JS7 |
| 462.1-0057-002A0-XM | 0.57 | 2.74 | 37.87 | 38.00 | 3.00 | 130.00 | 3.60 | 0.13 | 4.82 | h6 | JS7 |
| 462.1-0058-002A0-XM | 0.58 | 2.73 | 37.86 | 38.00 | 3.00 | 130.00 | 3.60 | 0.14 | 4.71 | h6 | JS7 |
| 462.1-0059-002A0-XM | 0.59 | 2.71 | 37.86 | 38.00 | 3.00 | 130.00 | 3.60 | 0.14 | 4.60 | h6 | JS7 |
| 462.1-0060-002A0-XM | 0.60 | 2.70 | 37.86 | 38.00 | 3.00 | 130.00 | 3.60 | 0.14 | 4.50 | h6 | JS7 |
| 462.1-0061-002A0-XM | 0.61 | 2.98 | 37.86 | 38.00 | 3.00 | 130.00 | 3.90 | 0.14 | 4.89 | h6 | JS7 |
| 462.1-0062-002A0-XM | 0.62 | 2.97 | 37.86 | 38.00 | 3.00 | 130.00 | 3.90 | 0.14 | 4.79 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
