Инструменты круглого сечения | Сверловые инструменты

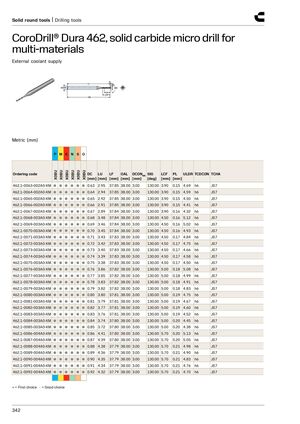

CoroDrill® Dura 462, микросверло из твердого сплава для обработки различных материалов
Подвод охлаждающей жидкости снаружи
Метрические размеры (мм)
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0063-002A0-XM | 0.63 | 2.95 | 37.85 | 38.00 | 3.00 | 130.00 | 3.90 | 0.15 | 4.69 | h6 | JS7 |
| 462.1-0064-002A0-XM | 0.64 | 2.94 | 37.85 | 38.00 | 3.00 | 130.00 | 3.90 | 0.15 | 4.59 | h6 | JS7 |
| 462.1-0065-002A0-XM | 0.65 | 2.92 | 37.85 | 38.00 | 3.00 | 130.00 | 3.90 | 0.15 | 4.50 | h6 | JS7 |
| 462.1-0066-002A0-XM | 0.66 | 2.91 | 37.85 | 38.00 | 3.00 | 130.00 | 3.90 | 0.15 | 4.41 | h6 | JS7 |
| 462.1-0067-002A0-XM | 0.67 | 2.89 | 37.84 | 38.00 | 3.00 | 130.00 | 3.90 | 0.16 | 4.32 | h6 | JS7 |
| 462.1-0068-003A0-XM | 0.68 | 3.48 | 37.84 | 38.00 | 3.00 | 130.00 | 4.50 | 0.16 | 5.12 | h6 | JS7 |
| 462.1-0069-003A0-XM | 0.69 | 3.46 | 37.84 | 38.00 | 3.00 | 130.00 | 4.50 | 0.16 | 5.02 | h6 | JS7 |
| 462.1-0070-003A0-XM | 0.70 | 3.45 | 37.84 | 38.00 | 3.00 | 130.00 | 4.50 | 0.16 | 4.93 | h6 | JS7 |
| 462.1-0071-003A0-XM | 0.71 | 3.43 | 37.83 | 38.00 | 3.00 | 130.00 | 4.50 | 0.17 | 4.84 | h6 | JS7 |
| 462.1-0072-003A0-XM | 0.72 | 3.42 | 37.83 | 38.00 | 3.00 | 130.00 | 4.50 | 0.17 | 4.75 | h6 | JS7 |
| 462.1-0073-003A0-XM | 0.73 | 3.40 | 37.83 | 38.00 | 3.00 | 130.00 | 4.50 | 0.17 | 4.66 | h6 | JS7 |
| 462.1-0074-003A0-XM | 0.74 | 3.39 | 37.83 | 38.00 | 3.00 | 130.00 | 4.50 | 0.17 | 4.58 | h6 | JS7 |
| 462.1-0075-003A0-XM | 0.75 | 3.38 | 37.83 | 38.00 | 3.00 | 130.00 | 4.50 | 0.17 | 4.50 | h6 | JS7 |
| 462.1-0076-003A0-XM | 0.76 | 3.86 | 37.82 | 38.00 | 3.00 | 130.00 | 5.00 | 0.18 | 5.08 | h6 | JS7 |
| 462.1-0077-003A0-XM | 0.77 | 3.85 | 37.82 | 38.00 | 3.00 | 130.00 | 5.00 | 0.18 | 4.99 | h6 | JS7 |
| 462.1-0078-003A0-XM | 0.78 | 3.83 | 37.82 | 38.00 | 3.00 | 130.00 | 5.00 | 0.18 | 4.91 | h6 | JS7 |
| 462.1-0079-003A0-XM | 0.79 | 3.82 | 37.82 | 38.00 | 3.00 | 130.00 | 5.00 | 0.18 | 4.83 | h6 | JS7 |
| 462.1-0080-003A0-XM | 0.80 | 3.80 | 37.81 | 38.00 | 3.00 | 130.00 | 5.00 | 0.19 | 4.75 | h6 | JS7 |
| 462.1-0081-003A0-XM | 0.81 | 3.79 | 37.81 | 38.00 | 3.00 | 130.00 | 5.00 | 0.19 | 4.67 | h6 | JS7 |
| 462.1-0082-003A0-XM | 0.82 | 3.77 | 37.81 | 38.00 | 3.00 | 130.00 | 5.00 | 0.19 | 4.60 | h6 | JS7 |
| 462.1-0083-003A0-XM | 0.83 | 3.76 | 37.81 | 38.00 | 3.00 | 130.00 | 5.00 | 0.19 | 4.52 | h6 | JS7 |
| 462.1-0084-003A0-XM | 0.84 | 3.74 | 37.80 | 38.00 | 3.00 | 130.00 | 5.00 | 0.20 | 4.45 | h6 | JS7 |
| 462.1-0085-003A0-XM | 0.85 | 3.72 | 37.80 | 38.00 | 3.00 | 130.00 | 5.00 | 0.20 | 4.38 | h6 | JS7 |
| 462.1-0086-004A0-XM | 0.86 | 4.41 | 37.80 | 38.00 | 3.00 | 130.00 | 5.70 | 0.20 | 5.13 | h6 | JS7 |
| 462.1-0087-004A0-XM | 0.87 | 4.39 | 37.80 | 38.00 | 3.00 | 130.00 | 5.70 | 0.20 | 5.05 | h6 | JS7 |
| 462.1-0088-004A0-XM | 0.88 | 4.38 | 37.79 | 38.00 | 3.00 | 130.00 | 5.70 | 0.21 | 4.98 | h6 | JS7 |
| 462.1-0089-004A0-XM | 0.89 | 4.36 | 37.79 | 38.00 | 3.00 | 130.00 | 5.70 | 0.21 | 4.90 | h6 | JS7 |
| 462.1-0090-004A0-XM | 0.90 | 4.35 | 37.79 | 38.00 | 3.00 | 130.00 | 5.70 | 0.21 | 4.83 | h6 | JS7 |
| 462.1-0091-004A0-XM | 0.91 | 4.34 | 37.79 | 38.00 | 3.00 | 130.00 | 5.70 | 0.21 | 4.76 | h6 | JS7 |
| 462.1-0092-004A0-XM | 0.92 | 4.32 | 37.79 | 38.00 | 3.00 | 130.00 | 5.70 | 0.21 | 4.70 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
