Инструменты с цельным профилем | Инструменты для сверления

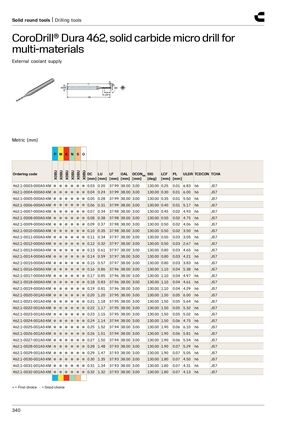

CoroDrill® Dura 462, микросверло из твердого сплава для обработки различных материалов
Внешняя подача СОЖ
Метрическая система (мм)
| Артикул | P X0BU |
M X0BU |
K X0BU |
N X0BU |
S X0BU |
O X0BU |
DC [мм] |
LU [мм] |
LF [мм] |
OAL [мм] |
DCONMS [мм] |
SIG [град] |
LCF [мм] |
PL [мм] |
ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0003-000A0-XM | ● | ● | ● | ● | ● | ● | 0.03 | 0.20 | 37.99 | 38.00 | 3.00 | 130.00 | 0.25 | 0.01 | 6.83 | h6 | JS7 |
| 462.1-0004-000A0-XM | ● | ● | ● | ● | ● | ● | 0.04 | 0.24 | 37.99 | 38.00 | 3.00 | 130.00 | 0.30 | 0.01 | 6.00 | h6 | JS7 |
| 462.1-0005-000A0-XM | ● | ● | ● | ● | ● | ● | 0.05 | 0.28 | 37.99 | 38.00 | 3.00 | 130.00 | 0.35 | 0.01 | 5.50 | h6 | JS7 |
| 462.1-0006-000A0-XM | ● | ● | ● | ● | ● | ● | 0.06 | 0.31 | 37.99 | 38.00 | 3.00 | 130.00 | 0.40 | 0.01 | 5.17 | h6 | JS7 |
| 462.1-0007-000A0-XM | ● | ● | ● | ● | ● | ● | 0.07 | 0.34 | 37.98 | 38.00 | 3.00 | 130.00 | 0.45 | 0.02 | 4.93 | h6 | JS7 |
| 462.1-0008-000A0-XM | ● | ● | ● | ● | ● | ● | 0.08 | 0.38 | 37.98 | 38.00 | 3.00 | 130.00 | 0.50 | 0.02 | 4.75 | h6 | JS7 |
| 462.1-0009-000A0-XM | ● | ● | ● | ● | ● | ● | 0.09 | 0.37 | 37.98 | 38.00 | 3.00 | 130.00 | 0.50 | 0.02 | 4.06 | h6 | JS7 |
| 462.1-0010-000A0-XM | ● | ● | ● | ● | ● | ● | 0.10 | 0.35 | 37.98 | 38.00 | 3.00 | 130.00 | 0.50 | 0.02 | 3.50 | h6 | JS7 |
| 462.1-0011-000A0-XM | ● | ● | ● | ● | ● | ● | 0.11 | 0.34 | 37.97 | 38.00 | 3.00 | 130.00 | 0.50 | 0.03 | 3.05 | h6 | JS7 |
| 462.1-0012-000A0-XM | ● | ● | ● | ● | ● | ● | 0.12 | 0.32 | 37.97 | 38.00 | 3.00 | 130.00 | 0.50 | 0.03 | 2.67 | h6 | JS7 |
| 462.1-0013-000A0-XM | ● | ● | ● | ● | ● | ● | 0.13 | 0.61 | 37.97 | 38.00 | 3.00 | 130.00 | 0.80 | 0.03 | 4.65 | h6 | JS7 |
| 462.1-0014-000A0-XM | ● | ● | ● | ● | ● | ● | 0.14 | 0.59 | 37.97 | 38.00 | 3.00 | 130.00 | 0.80 | 0.03 | 4.21 | h6 | JS7 |
| 462.1-0015-000A0-XM | ● | ● | ● | ● | ● | ● | 0.15 | 0.57 | 37.97 | 38.00 | 3.00 | 130.00 | 0.80 | 0.03 | 3.83 | h6 | JS7 |
| 462.1-0016-000A0-XM | ● | ● | ● | ● | ● | ● | 0.16 | 0.86 | 37.96 | 38.00 | 3.00 | 130.00 | 1.10 | 0.04 | 5.38 | h6 | JS7 |
| 462.1-0017-000A0-XM | ● | ● | ● | ● | ● | ● | 0.17 | 0.85 | 37.96 | 38.00 | 3.00 | 130.00 | 1.10 | 0.04 | 4.97 | h6 | JS7 |
| 462.1-0018-000A0-XM | ● | ● | ● | ● | ● | ● | 0.18 | 0.83 | 37.96 | 38.00 | 3.00 | 130.00 | 1.10 | 0.04 | 4.61 | h6 | JS7 |
| 462.1-0019-000A0-XM | ● | ● | ● | ● | ● | ● | 0.19 | 0.81 | 37.96 | 38.00 | 3.00 | 130.00 | 1.10 | 0.04 | 4.29 | h6 | JS7 |
| 462.1-0020-001A0-XM | ● | ● | ● | ● | ● | ● | 0.20 | 1.20 | 37.95 | 38.00 | 3.00 | 130.00 | 1.50 | 0.05 | 6.00 | h6 | JS7 |
| 462.1-0021-001A0-XM | ● | ● | ● | ● | ● | ● | 0.21 | 1.18 | 37.95 | 38.00 | 3.00 | 130.00 | 1.50 | 0.05 | 5.64 | h6 | JS7 |
| 462.1-0022-001A0-XM | ● | ● | ● | ● | ● | ● | 0.22 | 1.17 | 37.95 | 38.00 | 3.00 | 130.00 | 1.50 | 0.05 | 5.32 | h6 | JS7 |
| 462.1-0023-001A0-XM | ● | ● | ● | ● | ● | ● | 0.23 | 1.15 | 37.95 | 38.00 | 3.00 | 130.00 | 1.50 | 0.05 | 5.02 | h6 | JS7 |
| 462.1-0024-001A0-XM | ● | ● | ● | ● | ● | ● | 0.24 | 1.14 | 37.94 | 38.00 | 3.00 | 130.00 | 1.50 | 0.06 | 4.75 | h6 | JS7 |
| 462.1-0025-001A0-XM | ● | ● | ● | ● | ● | ● | 0.25 | 1.52 | 37.94 | 38.00 | 3.00 | 130.00 | 1.90 | 0.06 | 6.10 | h6 | JS7 |
| 462.1-0026-001A0-XM | ● | ● | ● | ● | ● | ● | 0.26 | 1.51 | 37.94 | 38.00 | 3.00 | 130.00 | 1.90 | 0.06 | 5.81 | h6 | JS7 |
| 462.1-0027-001A0-XM | ● | ● | ● | ● | ● | ● | 0.27 | 1.50 | 37.94 | 38.00 | 3.00 | 130.00 | 1.90 | 0.06 | 5.54 | h6 | JS7 |
| 462.1-0028-001A0-XM | ● | ● | ● | ● | ● | ● | 0.28 | 1.48 | 37.93 | 38.00 | 3.00 | 130.00 | 1.90 | 0.07 | 5.29 | h6 | JS7 |
| 462.1-0029-001A0-XM | ● | ● | ● | ● | ● | ● | 0.29 | 1.47 | 37.93 | 38.00 | 3.00 | 130.00 | 1.90 | 0.07 | 5.05 | h6 | JS7 |
| 462.1-0030-001A0-XM | ● | ● | ● | ● | ● | ● | 0.30 | 1.35 | 37.93 | 38.00 | 3.00 | 130.00 | 1.80 | 0.07 | 4.50 | h6 | JS7 |
| 462.1-0031-001A0-XM | ● | ● | ● | ● | ● | ● | 0.31 | 1.34 | 37.93 | 38.00 | 3.00 | 130.00 | 1.80 | 0.07 | 4.31 | h6 | JS7 |
| 462.1-0032-001A0-XM | ● | ● | ● | ● | ● | ● | 0.32 | 1.32 | 37.93 | 38.00 | 3.00 | 130.00 | 1.80 | 0.07 | 4.13 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
