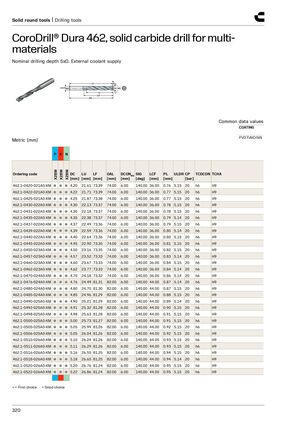

Сплошные цилиндрические инструменты | Сверлящие инструменты
CoroDrill® Dura 462, твёрдосплавное сверло для многоматериальной обработки
Номинальная глубина сверления 5xD. Внешняя подача охлаждающей жидкости
Типовые значения данных
Покрытие: PVD TiAlCrSiN
| 462.1-0420-021A0-XM | ● | ● | ● | 4.20 | 21.61 | 73.39 | 74.00 | 6.00 | 140.00 | 36.00 | 0.76 | 5.15 | 20 | h6 | H9 |
| 462.1-0422-021A0-XM | ● | ● | ● | 4.22 | 21.71 | 73.39 | 74.00 | 6.00 | 140.00 | 36.00 | 0.77 | 5.15 | 20 | h6 | H9 |
| 462.1-0425-021A0-XM | ● | ● | ● | 4.25 | 21.87 | 73.38 | 74.00 | 6.00 | 140.00 | 36.00 | 0.77 | 5.15 | 20 | h6 | H9 |
| 462.1-0430-022A0-XM | ● | ● | ● | 4.30 | 22.13 | 73.37 | 74.00 | 6.00 | 140.00 | 36.00 | 0.78 | 5.15 | 20 | h6 | H9 |
| 462.1-0431-022A0-XM | ● | ● | ● | 4.30 | 22.18 | 73.37 | 74.00 | 6.00 | 140.00 | 36.00 | 0.78 | 5.15 | 20 | h6 | H9 |
| 462.1-0435-022A0-XM | ● | ● | ● | 4.35 | 22.38 | 73.37 | 74.00 | 6.00 | 140.00 | 36.00 | 0.79 | 5.14 | 20 | h6 | H9 |
| 462.1-0437-022A0-XM | ● | ● | ● | 4.37 | 22.49 | 73.36 | 74.00 | 6.00 | 140.00 | 36.00 | 0.79 | 5.15 | 20 | h6 | H9 |
| 462.1-0439-022A0-XM | ● | ● | ● | 4.39 | 22.59 | 73.36 | 74.00 | 6.00 | 140.00 | 36.00 | 0.80 | 5.14 | 20 | h6 | H9 |
| 462.1-0440-022A0-XM | ● | ● | ● | 4.40 | 22.64 | 73.36 | 74.00 | 6.00 | 140.00 | 36.00 | 0.80 | 5.15 | 20 | h6 | H9 |
| 462.1-0445-022A0-XM | ● | ● | ● | 4.45 | 22.90 | 73.35 | 74.00 | 6.00 | 140.00 | 36.00 | 0.81 | 5.15 | 20 | h6 | H9 |
| 462.1-0450-023A0-XM | ● | ● | ● | 4.50 | 23.16 | 73.35 | 74.00 | 6.00 | 140.00 | 36.00 | 0.82 | 5.15 | 20 | h6 | H9 |
| 462.1-0457-023A0-XM | ● | ● | ● | 4.57 | 23.52 | 73.33 | 74.00 | 6.00 | 140.00 | 36.00 | 0.83 | 5.14 | 20 | h6 | H9 |
| 462.1-0460-023A0-XM | ● | ● | ● | 4.60 | 23.67 | 73.33 | 74.00 | 6.00 | 140.00 | 36.00 | 0.84 | 5.15 | 20 | h6 | H9 |
| 462.1-0462-023A0-XM | ● | ● | ● | 4.62 | 23.77 | 73.33 | 74.00 | 6.00 | 140.00 | 36.00 | 0.84 | 5.14 | 20 | h6 | H9 |
| 462.1-0470-024A0-XM | ● | ● | ● | 4.70 | 24.18 | 73.32 | 74.00 | 6.00 | 140.00 | 36.00 | 0.86 | 5.14 | 20 | h6 | H9 |
| 462.1-0476-024A0-XM | ● | ● | ● | 4.76 | 24.49 | 81.31 | 82.00 | 6.00 | 140.00 | 44.00 | 0.87 | 5.14 | 20 | h6 | H9 |
| 462.1-0480-024A0-XM | ● | ● | ● | 4.80 | 24.70 | 81.30 | 82.00 | 6.00 | 140.00 | 44.00 | 0.87 | 5.15 | 20 | h6 | H9 |
| 462.1-0485-024A0-XM | ● | ● | ● | 4.85 | 24.96 | 81.29 | 82.00 | 6.00 | 140.00 | 44.00 | 0.88 | 5.15 | 20 | h6 | H9 |
| 462.1-0490-025A0-XM | ● | ● | ● | 4.90 | 25.21 | 81.29 | 82.00 | 6.00 | 140.00 | 44.00 | 0.89 | 5.14 | 20 | h6 | H9 |
| 462.1-0492-025A0-XM | ● | ● | ● | 4.91 | 25.32 | 81.28 | 82.00 | 6.00 | 140.00 | 44.00 | 0.90 | 5.15 | 20 | h6 | H9 |
| 462.1-0498-025A0-XM | ● | ● | ● | 4.98 | 25.63 | 81.28 | 82.00 | 6.00 | 140.00 | 44.00 | 0.91 | 5.15 | 20 | h6 | H9 |
| 462.1-0500-025A0-XM | ● | ● | ● | 5.00 | 25.73 | 81.27 | 82.00 | 6.00 | 140.00 | 44.00 | 0.91 | 5.15 | 20 | h6 | H9 |
| 462.1-0505-025A0-XM | ● | ● | ● | 5.05 | 25.99 | 81.26 | 82.00 | 6.00 | 140.00 | 44.00 | 0.92 | 5.15 | 20 | h6 | H9 |
| 462.1-0506-025A0-XM | ● | ● | ● | 5.05 | 26.04 | 81.26 | 82.00 | 6.00 | 140.00 | 44.00 | 0.92 | 5.15 | 20 | h6 | H9 |
| 462.1-0510-026A0-XM | ● | ● | ● | 5.10 | 26.24 | 81.26 | 82.00 | 6.00 | 140.00 | 44.00 | 0.93 | 5.15 | 20 | h6 | H9 |
| 462.1-0511-026A0-XM | ● | ● | ● | 5.11 | 26.29 | 81.26 | 82.00 | 6.00 | 140.00 | 44.00 | 0.93 | 5.15 | 20 | h6 | H9 |
| 462.1-0516-026A0-XM | ● | ● | ● | 5.16 | 26.55 | 81.25 | 82.00 | 6.00 | 140.00 | 44.00 | 0.94 | 5.15 | 20 | h6 | H9 |
| 462.1-0518-026A0-XM | ● | ● | ● | 5.18 | 26.65 | 81.25 | 82.00 | 6.00 | 140.00 | 44.00 | 0.94 | 5.14 | 20 | h6 | H9 |
| 462.1-0520-026A0-XM | ● | ● | ● | 5.20 | 26.76 | 81.24 | 82.00 | 6.00 | 140.00 | 44.00 | 0.95 | 5.15 | 20 | h6 | H9 |
| 462.1-0522-026A0-XM | ● | ● | ● | 5.22 | 26.86 | 81.24 | 82.00 | 6.00 | 140.00 | 44.00 | 0.95 | 5.15 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
