Сплошные цилиндрические инструменты | Сверлящие инструменты

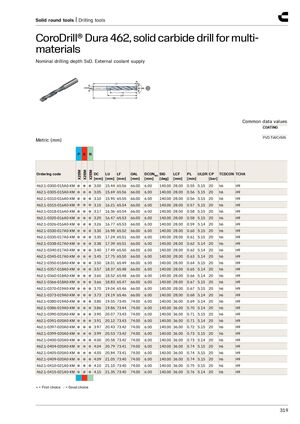

CoroDrill® Dura 462, твёрдосплавное сверло для многоматериальной обработки
Номинальная глубина сверления 5xD. Внешняя подача охлаждающей жидкости
Типовые значения данных
Покрытие: PVD TiAlCrSiN
| 462.1-0300-015A0-XM | ● | ● | ● | 3.00 | 15.44 | 65.56 | 66.00 | 6.00 | 140.00 | 28.00 | 0.55 | 5.15 | 20 | h6 | H9 |
| 462.1-0305-015A0-XM | ● | ● | ● | 3.05 | 15.69 | 65.56 | 66.00 | 6.00 | 140.00 | 28.00 | 0.56 | 5.15 | 20 | h6 | H9 |
| 462.1-0310-016A0-XM | ● | ● | ● | 3.10 | 15.95 | 65.55 | 66.00 | 6.00 | 140.00 | 28.00 | 0.56 | 5.15 | 20 | h6 | H9 |
| 462.1-0315-016A0-XM | ● | ● | ● | 3.15 | 16.21 | 65.54 | 66.00 | 6.00 | 140.00 | 28.00 | 0.57 | 5.15 | 20 | h6 | H9 |
| 462.1-0318-016A0-XM | ● | ● | ● | 3.17 | 16.36 | 65.54 | 66.00 | 6.00 | 140.00 | 28.00 | 0.58 | 5.15 | 20 | h6 | H9 |
| 462.1-0320-016A0-XM | ● | ● | ● | 3.20 | 16.47 | 65.53 | 66.00 | 6.00 | 140.00 | 28.00 | 0.58 | 5.15 | 20 | h6 | H9 |
| 462.1-0326-016A0-XM | ● | ● | ● | 3.26 | 16.77 | 65.53 | 66.00 | 6.00 | 140.00 | 28.00 | 0.59 | 5.14 | 20 | h6 | H9 |
| 462.1-0330-017A0-XM | ● | ● | ● | 3.30 | 16.98 | 65.52 | 66.00 | 6.00 | 140.00 | 28.00 | 0.60 | 5.15 | 20 | h6 | H9 |
| 462.1-0335-017A0-XM | ● | ● | ● | 3.35 | 17.24 | 65.51 | 66.00 | 6.00 | 140.00 | 28.00 | 0.61 | 5.15 | 20 | h6 | H9 |
| 462.1-0338-017A0-XM | ● | ● | ● | 3.38 | 17.39 | 65.51 | 66.00 | 6.00 | 140.00 | 28.00 | 0.62 | 5.14 | 20 | h6 | H9 |
| 462.1-0340-017A0-XM | ● | ● | ● | 3.40 | 17.49 | 65.50 | 66.00 | 6.00 | 140.00 | 28.00 | 0.62 | 5.14 | 20 | h6 | H9 |
| 462.1-0345-017A0-XM | ● | ● | ● | 3.45 | 17.75 | 65.50 | 66.00 | 6.00 | 140.00 | 28.00 | 0.63 | 5.14 | 20 | h6 | H9 |
| 462.1-0350-018A0-XM | ● | ● | ● | 3.50 | 18.01 | 65.49 | 66.00 | 6.00 | 140.00 | 28.00 | 0.64 | 5.15 | 20 | h6 | H9 |
| 462.1-0357-018A0-XM | ● | ● | ● | 3.57 | 18.37 | 65.48 | 66.00 | 6.00 | 140.00 | 28.00 | 0.65 | 5.14 | 20 | h6 | H9 |
| 462.1-0360-018A0-XM | ● | ● | ● | 3.60 | 18.52 | 65.48 | 66.00 | 6.00 | 140.00 | 28.00 | 0.66 | 5.14 | 20 | h6 | H9 |
| 462.1-0366-018A0-XM | ● | ● | ● | 3.66 | 18.83 | 65.47 | 66.00 | 6.00 | 140.00 | 28.00 | 0.67 | 5.15 | 20 | h6 | H9 |
| 462.1-0370-019A0-XM | ● | ● | ● | 3.70 | 19.04 | 65.46 | 66.00 | 6.00 | 140.00 | 28.00 | 0.67 | 5.15 | 20 | h6 | H9 |
| 462.1-0373-019A0-XM | ● | ● | ● | 3.73 | 19.19 | 65.46 | 66.00 | 6.00 | 140.00 | 28.00 | 0.68 | 5.14 | 20 | h6 | H9 |
| 462.1-0380-019A0-XM | ● | ● | ● | 3.80 | 19.55 | 73.45 | 74.00 | 6.00 | 140.00 | 36.00 | 0.69 | 5.14 | 20 | h6 | H9 |
| 462.1-0386-019A0-XM | ● | ● | ● | 3.86 | 19.86 | 73.44 | 74.00 | 6.00 | 140.00 | 36.00 | 0.70 | 5.14 | 20 | h6 | H9 |
| 462.1-0390-020A0-XM | ● | ● | ● | 3.90 | 20.07 | 73.43 | 74.00 | 6.00 | 140.00 | 36.00 | 0.71 | 5.15 | 20 | h6 | H9 |
| 462.1-0391-020A0-XM | ● | ● | ● | 3.91 | 20.12 | 73.43 | 74.00 | 6.00 | 140.00 | 36.00 | 0.71 | 5.14 | 20 | h6 | H9 |
| 462.1-0397-020A0-XM | ● | ● | ● | 3.97 | 20.43 | 73.42 | 74.00 | 6.00 | 140.00 | 36.00 | 0.72 | 5.15 | 20 | h6 | H9 |
| 462.1-0399-020A0-XM | ● | ● | ● | 3.99 | 20.53 | 73.42 | 74.00 | 6.00 | 140.00 | 36.00 | 0.73 | 5.15 | 20 | h6 | H9 |
| 462.1-0400-020A0-XM | ● | ● | ● | 4.00 | 20.58 | 73.42 | 74.00 | 6.00 | 140.00 | 36.00 | 0.73 | 5.14 | 20 | h6 | H9 |
| 462.1-0404-020A0-XM | ● | ● | ● | 4.04 | 20.79 | 73.41 | 74.00 | 6.00 | 140.00 | 36.00 | 0.74 | 5.15 | 20 | h6 | H9 |
| 462.1-0405-020A0-XM | ● | ● | ● | 4.05 | 20.84 | 73.41 | 74.00 | 6.00 | 140.00 | 36.00 | 0.74 | 5.15 | 20 | h6 | H9 |
| 462.1-0409-020A0-XM | ● | ● | ● | 4.09 | 21.05 | 73.40 | 74.00 | 6.00 | 140.00 | 36.00 | 0.74 | 5.15 | 20 | h6 | H9 |
| 462.1-0410-021A0-XM | ● | ● | ● | 4.10 | 21.10 | 73.40 | 74.00 | 6.00 | 140.00 | 36.00 | 0.75 | 5.15 | 20 | h6 | H9 |
| 462.1-0415-021A0-XM | ● | ● | ● | 4.15 | 21.35 | 73.40 | 74.00 | 6.00 | 140.00 | 36.00 | 0.76 | 5.14 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
