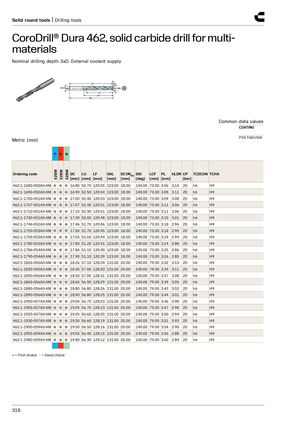

Сплошные цилиндрические инструменты | Сверлящие инструменты
CoroDrill® Dura 462, твёрдосплавное сверло для многоматериальной обработки
Номинальная глубина сверления 3xD. Внешняя подача охлаждающей жидкости
Типовые значения данных
Покрытие: PVD TiAlCrSiN
| 462.1-1680-050A0-XM | ● | ● | ● | 16.80 | 52.70 | 120.55 | 123.00 | 18.00 | 140.00 | 73.00 | 3.06 | 3.14 | 20 | h6 | H9 |
| 462.1-1690-050A0-XM | ● | ● | ● | 16.90 | 52.50 | 120.54 | 123.00 | 18.00 | 140.00 | 73.00 | 3.08 | 3.11 | 20 | h6 | H9 |
| 462.1-1700-051A0-XM | ● | ● | ● | 17.00 | 52.40 | 120.53 | 123.00 | 18.00 | 140.00 | 73.00 | 3.09 | 3.08 | 20 | h6 | H9 |
| 462.1-1707-051A0-XM | ● | ● | ● | 17.07 | 52.30 | 120.51 | 123.00 | 18.00 | 140.00 | 73.00 | 3.11 | 3.06 | 20 | h6 | H9 |
| 462.1-1710-051A0-XM | ● | ● | ● | 17.10 | 52.30 | 120.51 | 123.00 | 18.00 | 140.00 | 73.00 | 3.11 | 3.06 | 20 | h6 | H9 |
| 462.1-1730-051A0-XM | ● | ● | ● | 17.30 | 52.00 | 120.48 | 123.00 | 18.00 | 140.00 | 73.00 | 3.15 | 3.01 | 20 | h6 | H9 |
| 462.1-1746-052A0-XM | ● | ● | ● | 17.46 | 51.70 | 120.46 | 123.00 | 18.00 | 140.00 | 73.00 | 3.18 | 2.96 | 20 | h6 | H9 |
| 462.1-1750-053A0-XM | ● | ● | ● | 17.50 | 51.70 | 120.45 | 123.00 | 18.00 | 140.00 | 73.00 | 3.18 | 2.95 | 20 | h6 | H9 |
| 462.1-1755-053A0-XM | ● | ● | ● | 17.55 | 51.60 | 120.44 | 123.00 | 18.00 | 140.00 | 73.00 | 3.19 | 2.94 | 20 | h6 | H9 |
| 462.1-1780-053A0-XM | ● | ● | ● | 17.80 | 51.20 | 120.41 | 123.00 | 18.00 | 140.00 | 73.00 | 3.24 | 2.88 | 20 | h6 | H9 |
| 462.1-1786-054A0-XM | ● | ● | ● | 17.86 | 51.10 | 120.40 | 123.00 | 18.00 | 140.00 | 73.00 | 3.25 | 2.86 | 20 | h6 | H9 |
| 462.1-1790-054A0-XM | ● | ● | ● | 17.90 | 51.10 | 120.39 | 123.00 | 18.00 | 140.00 | 73.00 | 3.26 | 2.85 | 20 | h6 | H9 |
| 462.1-1826-055A0-XM | ● | ● | ● | 18.26 | 57.10 | 128.34 | 131.00 | 20.00 | 140.00 | 79.00 | 3.32 | 3.13 | 20 | h6 | H9 |
| 462.1-1835-055A0-XM | ● | ● | ● | 18.35 | 57.00 | 128.33 | 131.00 | 20.00 | 140.00 | 79.00 | 3.34 | 3.11 | 20 | h6 | H9 |
| 462.1-1850-056A0-XM | ● | ● | ● | 18.50 | 57.00 | 128.31 | 131.00 | 20.00 | 140.00 | 79.00 | 3.37 | 3.08 | 20 | h6 | H9 |
| 462.1-1865-056A0-XM | ● | ● | ● | 18.65 | 56.90 | 128.29 | 131.00 | 20.00 | 140.00 | 79.00 | 3.39 | 3.05 | 20 | h6 | H9 |
| 462.1-1880-056A0-XM | ● | ● | ● | 18.80 | 56.80 | 128.26 | 131.00 | 20.00 | 140.00 | 79.00 | 3.42 | 3.02 | 20 | h6 | H9 |
| 462.1-1890-056A0-XM | ● | ● | ● | 18.90 | 56.80 | 128.25 | 131.00 | 20.00 | 140.00 | 79.00 | 3.44 | 3.01 | 20 | h6 | H9 |
| 462.1-1900-057A0-XM | ● | ● | ● | 19.00 | 56.70 | 128.23 | 131.00 | 20.00 | 140.00 | 79.00 | 3.46 | 2.98 | 20 | h6 | H9 |
| 462.1-1905-057A0-XM | ● | ● | ● | 19.05 | 56.70 | 128.23 | 131.00 | 20.00 | 140.00 | 79.00 | 3.47 | 2.98 | 20 | h6 | H9 |
| 462.1-1925-057A0-XM | ● | ● | ● | 19.25 | 56.60 | 128.20 | 131.00 | 20.00 | 140.00 | 79.00 | 3.50 | 2.94 | 20 | h6 | H9 |
| 462.1-1930-057A0-XM | ● | ● | ● | 19.30 | 56.60 | 128.19 | 131.00 | 20.00 | 140.00 | 79.00 | 3.51 | 2.93 | 20 | h6 | H9 |
| 462.1-1950-059A0-XM | ● | ● | ● | 19.50 | 56.50 | 128.16 | 131.00 | 20.00 | 140.00 | 79.00 | 3.54 | 2.90 | 20 | h6 | H9 |
| 462.1-1955-059A0-XM | ● | ● | ● | 19.55 | 56.40 | 128.15 | 131.00 | 20.00 | 140.00 | 79.00 | 3.56 | 2.88 | 20 | h6 | H9 |
| 462.1-1980-059A0-XM | ● | ● | ● | 19.80 | 56.30 | 128.12 | 131.00 | 20.00 | 140.00 | 79.00 | 3.60 | 2.84 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
