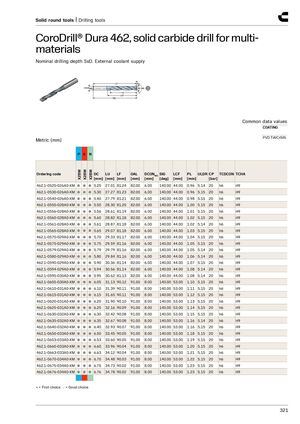

Сплошные цилиндрические инструменты | Сверлящие инструменты
CoroDrill® Dura 462, твёрдосплавное сверло для многоматериальной обработки
Номинальная глубина сверления 5xD. Внешняя подача охлаждающей жидкости
Типовые значения данных
Покрытие: PVD TiAlCrSiN
| 462.1-0525-026A0-XM | ● | ● | ● | 5.25 | 27.01 | 81.24 | 82.00 | 6.00 | 140.00 | 44.00 | 0.96 | 5.14 | 20 | h6 | H9 |
| 462.1-0530-026A0-XM | ● | ● | ● | 5.30 | 27.27 | 81.23 | 82.00 | 6.00 | 140.00 | 44.00 | 0.96 | 5.15 | 20 | h6 | H9 |
| 462.1-0540-026A0-XM | ● | ● | ● | 5.40 | 27.79 | 81.21 | 82.00 | 6.00 | 140.00 | 44.00 | 0.98 | 5.15 | 20 | h6 | H9 |
| 462.1-0550-028A0-XM | ● | ● | ● | 5.50 | 28.30 | 81.20 | 82.00 | 6.00 | 140.00 | 44.00 | 1.00 | 5.15 | 20 | h6 | H9 |
| 462.1-0556-028A0-XM | ● | ● | ● | 5.56 | 28.61 | 81.19 | 82.00 | 6.00 | 140.00 | 44.00 | 1.01 | 5.15 | 20 | h6 | H9 |
| 462.1-0560-028A0-XM | ● | ● | ● | 5.60 | 28.82 | 81.18 | 82.00 | 6.00 | 140.00 | 44.00 | 1.02 | 5.15 | 20 | h6 | H9 |
| 462.1-0561-028A0-XM | ● | ● | ● | 5.61 | 28.87 | 81.18 | 82.00 | 6.00 | 140.00 | 44.00 | 1.02 | 5.14 | 20 | h6 | H9 |
| 462.1-0565-028A0-XM | ● | ● | ● | 5.65 | 29.07 | 81.18 | 82.00 | 6.00 | 140.00 | 44.00 | 1.03 | 5.15 | 20 | h6 | H9 |
| 462.1-0570-029A0-XM | ● | ● | ● | 5.70 | 29.33 | 81.17 | 82.00 | 6.00 | 140.00 | 44.00 | 1.04 | 5.15 | 20 | h6 | H9 |
| 462.1-0575-029A0-XM | ● | ● | ● | 5.75 | 29.59 | 81.16 | 82.00 | 6.00 | 140.00 | 44.00 | 1.05 | 5.15 | 20 | h6 | H9 |
| 462.1-0579-029A0-XM | ● | ● | ● | 5.79 | 29.79 | 81.16 | 82.00 | 6.00 | 140.00 | 44.00 | 1.05 | 5.14 | 20 | h6 | H9 |
| 462.1-0580-029A0-XM | ● | ● | ● | 5.80 | 29.84 | 81.16 | 82.00 | 6.00 | 140.00 | 44.00 | 1.06 | 5.14 | 20 | h6 | H9 |
| 462.1-0590-029A0-XM | ● | ● | ● | 5.90 | 30.36 | 81.14 | 82.00 | 6.00 | 140.00 | 44.00 | 1.07 | 5.15 | 20 | h6 | H9 |
| 462.1-0594-029A0-XM | ● | ● | ● | 5.94 | 30.56 | 81.14 | 82.00 | 6.00 | 140.00 | 44.00 | 1.08 | 5.14 | 20 | h6 | H9 |
| 462.1-0595-030A0-XM | ● | ● | ● | 5.95 | 30.62 | 81.13 | 82.00 | 6.00 | 140.00 | 44.00 | 1.08 | 5.14 | 20 | h6 | H9 |
| 462.1-0605-030A0-XM | ● | ● | ● | 6.05 | 31.13 | 90.12 | 91.00 | 8.00 | 140.00 | 53.00 | 1.10 | 5.15 | 20 | h6 | H9 |
| 462.1-0610-031A0-XM | ● | ● | ● | 6.10 | 31.39 | 90.11 | 91.00 | 8.00 | 140.00 | 53.00 | 1.11 | 5.15 | 20 | h6 | H9 |
| 462.1-0615-031A0-XM | ● | ● | ● | 6.15 | 31.65 | 90.11 | 91.00 | 8.00 | 140.00 | 53.00 | 1.12 | 5.15 | 20 | h6 | H9 |
| 462.1-0620-031A0-XM | ● | ● | ● | 6.20 | 31.90 | 90.10 | 91.00 | 8.00 | 140.00 | 53.00 | 1.13 | 5.15 | 20 | h6 | H9 |
| 462.1-0625-031A0-XM | ● | ● | ● | 6.25 | 32.16 | 90.09 | 91.00 | 8.00 | 140.00 | 53.00 | 1.14 | 5.15 | 20 | h6 | H9 |
| 462.1-0630-032A0-XM | ● | ● | ● | 6.30 | 32.42 | 90.08 | 91.00 | 8.00 | 140.00 | 53.00 | 1.15 | 5.15 | 20 | h6 | H9 |
| 462.1-0635-032A0-XM | ● | ● | ● | 6.35 | 32.67 | 90.08 | 91.00 | 8.00 | 140.00 | 53.00 | 1.16 | 5.14 | 20 | h6 | H9 |
| 462.1-0640-032A0-XM | ● | ● | ● | 6.40 | 32.93 | 90.07 | 91.00 | 8.00 | 140.00 | 53.00 | 1.16 | 5.15 | 20 | h6 | H9 |
| 462.1-0650-033A0-XM | ● | ● | ● | 6.50 | 33.45 | 90.05 | 91.00 | 8.00 | 140.00 | 53.00 | 1.18 | 5.15 | 20 | h6 | H9 |
| 462.1-0653-033A0-XM | ● | ● | ● | 6.53 | 33.60 | 90.05 | 91.00 | 8.00 | 140.00 | 53.00 | 1.19 | 5.15 | 20 | h6 | H9 |
| 462.1-0660-033A0-XM | ● | ● | ● | 6.60 | 33.96 | 90.04 | 91.00 | 8.00 | 140.00 | 53.00 | 1.20 | 5.15 | 20 | h6 | H9 |
| 462.1-0663-033A0-XM | ● | ● | ● | 6.63 | 34.12 | 90.04 | 91.00 | 8.00 | 140.00 | 53.00 | 1.21 | 5.15 | 20 | h6 | H9 |
| 462.1-0670-034A0-XM | ● | ● | ● | 6.70 | 34.48 | 90.03 | 91.00 | 8.00 | 140.00 | 53.00 | 1.22 | 5.15 | 20 | h6 | H9 |
| 462.1-0675-034A0-XM | ● | ● | ● | 6.75 | 34.73 | 90.02 | 91.00 | 8.00 | 140.00 | 53.00 | 1.23 | 5.15 | 20 | h6 | H9 |
| 462.1-0676-034A0-XM | ● | ● | ● | 6.76 | 34.78 | 90.02 | 91.00 | 8.00 | 140.00 | 53.00 | 1.23 | 5.15 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
