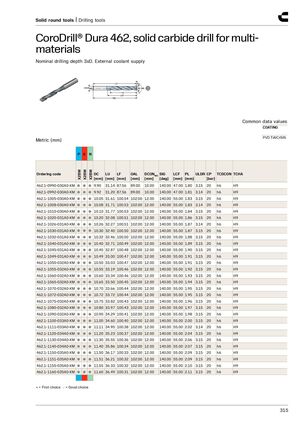

Твердосплавные инструменты с круглым профилем | Инструменты для сверления
CoroDrill® Dura 462, твердосплавное сверло для обработки разнообразных материалов
Номинальная глубина сверления 3xD. Внешняя подача СОЖ
Стандартные значения параметров
Покрытие: PVD TiAlCrSiN
Метрические (мм)
Выбор: P K N X2BM
| Код заказа | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR [бар] | CP | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0990-030A0-XM | 9.90 | 31.14 | 87.56 | 89.00 | 10.00 | 140.00 | 47.00 | 1.80 | 3.15 | 20 | h6 | H9 |
| 462.1-0992-030A0-XM | 9.92 | 31.20 | 87.56 | 89.00 | 10.00 | 140.00 | 47.00 | 1.81 | 3.14 | 20 | h6 | H9 |
| 462.1-1005-030A0-XM | 10.05 | 31.61 | 100.54 | 102.00 | 12.00 | 140.00 | 55.00 | 1.83 | 3.15 | 20 | h6 | H9 |
| 462.1-1008-030A0-XM | 10.08 | 31.71 | 100.53 | 102.00 | 12.00 | 140.00 | 55.00 | 1.83 | 3.14 | 20 | h6 | H9 |
| 462.1-1010-030A0-XM | 10.10 | 31.77 | 100.53 | 102.00 | 12.00 | 140.00 | 55.00 | 1.84 | 3.15 | 20 | h6 | H9 |
| 462.1-1020-031A0-XM | 10.20 | 32.08 | 100.51 | 102.00 | 12.00 | 140.00 | 55.00 | 1.86 | 3.15 | 20 | h6 | H9 |
| 462.1-1026-031A0-XM | 10.26 | 32.27 | 100.51 | 102.00 | 12.00 | 140.00 | 55.00 | 1.87 | 3.14 | 20 | h6 | H9 |
| 462.1-1030-031A0-XM | 10.30 | 32.40 | 100.50 | 102.00 | 12.00 | 140.00 | 55.00 | 1.87 | 3.15 | 20 | h6 | H9 |
| 462.1-1032-031A0-XM | 10.32 | 32.46 | 100.50 | 102.00 | 12.00 | 140.00 | 55.00 | 1.88 | 3.15 | 20 | h6 | H9 |
| 462.1-1040-031A0-XM | 10.40 | 32.71 | 100.49 | 102.00 | 12.00 | 140.00 | 55.00 | 1.89 | 3.15 | 20 | h6 | H9 |
| 462.1-1045-031A0-XM | 10.45 | 32.87 | 100.48 | 102.00 | 12.00 | 140.00 | 55.00 | 1.90 | 3.15 | 20 | h6 | H9 |
| 462.1-1049-031A0-XM | 10.49 | 33.00 | 100.47 | 102.00 | 12.00 | 140.00 | 55.00 | 1.91 | 3.15 | 20 | h6 | H9 |
| 462.1-1050-032A0-XM | 10.50 | 33.03 | 100.47 | 102.00 | 12.00 | 140.00 | 55.00 | 1.91 | 3.15 | 20 | h6 | H9 |
| 462.1-1055-032A0-XM | 10.55 | 33.19 | 100.46 | 102.00 | 12.00 | 140.00 | 55.00 | 1.92 | 3.15 | 20 | h6 | H9 |
| 462.1-1060-032A0-XM | 10.60 | 33.34 | 100.46 | 102.00 | 12.00 | 140.00 | 55.00 | 1.93 | 3.15 | 20 | h6 | H9 |
| 462.1-1065-032A0-XM | 10.65 | 33.50 | 100.45 | 102.00 | 12.00 | 140.00 | 55.00 | 1.94 | 3.15 | 20 | h6 | H9 |
| 462.1-1070-032A0-XM | 10.70 | 33.66 | 100.44 | 102.00 | 12.00 | 140.00 | 55.00 | 1.95 | 3.15 | 20 | h6 | H9 |
| 462.1-1072-032A0-XM | 10.72 | 33.72 | 100.44 | 102.00 | 12.00 | 140.00 | 55.00 | 1.95 | 3.15 | 20 | h6 | H9 |
| 462.1-1075-032A0-XM | 10.75 | 33.82 | 100.43 | 102.00 | 12.00 | 140.00 | 55.00 | 1.96 | 3.15 | 20 | h6 | H9 |
| 462.1-1080-032A0-XM | 10.80 | 33.97 | 100.43 | 102.00 | 12.00 | 140.00 | 55.00 | 1.97 | 3.15 | 20 | h6 | H9 |
| 462.1-1090-032A0-XM | 10.90 | 34.29 | 100.41 | 102.00 | 12.00 | 140.00 | 55.00 | 1.98 | 3.15 | 20 | h6 | H9 |
| 462.1-1100-033A0-XM | 11.00 | 34.60 | 100.40 | 102.00 | 12.00 | 140.00 | 55.00 | 2.00 | 3.15 | 20 | h6 | H9 |
| 462.1-1111-033A0-XM | 11.11 | 34.95 | 100.38 | 102.00 | 12.00 | 140.00 | 55.00 | 2.02 | 3.14 | 20 | h6 | H9 |
| 462.1-1120-034A0-XM | 11.20 | 35.23 | 100.37 | 102.00 | 12.00 | 140.00 | 55.00 | 2.04 | 3.15 | 20 | h6 | H9 |
| 462.1-1130-034A0-XM | 11.30 | 35.55 | 100.36 | 102.00 | 12.00 | 140.00 | 55.00 | 2.06 | 3.15 | 20 | h6 | H9 |
| 462.1-1140-034A0-XM | 11.40 | 35.86 | 100.34 | 102.00 | 12.00 | 140.00 | 55.00 | 2.07 | 3.15 | 20 | h6 | H9 |
| 462.1-1150-035A0-XM | 11.50 | 36.17 | 100.33 | 102.00 | 12.00 | 140.00 | 55.00 | 2.09 | 3.15 | 20 | h6 | H9 |
| 462.1-1151-035A0-XM | 11.51 | 36.21 | 100.32 | 102.00 | 12.00 | 140.00 | 55.00 | 2.09 | 3.15 | 20 | h6 | H9 |
| 462.1-1155-035A0-XM | 11.55 | 36.33 | 100.32 | 102.00 | 12.00 | 140.00 | 55.00 | 2.10 | 3.15 | 20 | h6 | H9 |
| 462.1-1160-035A0-XM | 11.60 | 36.49 | 100.31 | 102.00 | 12.00 | 140.00 | 55.00 | 2.11 | 3.15 | 20 | h6 | H9 |
● – Первый выбор ○ – Хороший выбор
