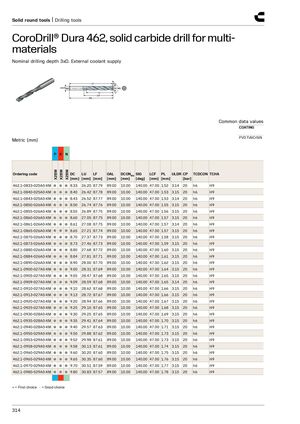

Твердосплавные инструменты с круглым профилем | Инструменты для сверления
CoroDrill® Dura 462, твердосплавное сверло для обработки разнообразных материалов
Номинальная глубина сверления 3xD. Внешняя подача СОЖ
Стандартные значения параметров
Покрытие: PVD TiAlCrSiN
Метрические (мм)
Выбор: P K N X2BM
| Код заказа | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR [бар] | CP | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0833-025A0-XM | 8.33 | 26.20 | 87.79 | 89.00 | 10.00 | 140.00 | 47.00 | 1.52 | 3.14 | 20 | h6 | H9 |
| 462.1-0840-025A0-XM | 8.40 | 26.42 | 87.78 | 89.00 | 10.00 | 140.00 | 47.00 | 1.53 | 3.15 | 20 | h6 | H9 |
| 462.1-0843-025A0-XM | 8.43 | 26.52 | 87.77 | 89.00 | 10.00 | 140.00 | 47.00 | 1.53 | 3.14 | 20 | h6 | H9 |
| 462.1-0850-026A0-XM | 8.50 | 26.74 | 87.76 | 89.00 | 10.00 | 140.00 | 47.00 | 1.55 | 3.15 | 20 | h6 | H9 |
| 462.1-0855-026A0-XM | 8.55 | 26.89 | 87.75 | 89.00 | 10.00 | 140.00 | 47.00 | 1.56 | 3.15 | 20 | h6 | H9 |
| 462.1-0860-026A0-XM | 8.60 | 27.05 | 87.75 | 89.00 | 10.00 | 140.00 | 47.00 | 1.57 | 3.15 | 20 | h6 | H9 |
| 462.1-0861-026A0-XM | 8.61 | 27.08 | 87.75 | 89.00 | 10.00 | 140.00 | 47.00 | 1.57 | 3.14 | 20 | h6 | H9 |
| 462.1-0865-026A0-XM | 8.65 | 27.21 | 87.74 | 89.00 | 10.00 | 140.00 | 47.00 | 1.57 | 3.15 | 20 | h6 | H9 |
| 462.1-0870-026A0-XM | 8.70 | 27.37 | 87.73 | 89.00 | 10.00 | 140.00 | 47.00 | 1.58 | 3.15 | 20 | h6 | H9 |
| 462.1-0873-026A0-XM | 8.73 | 27.46 | 87.73 | 89.00 | 10.00 | 140.00 | 47.00 | 1.59 | 3.15 | 20 | h6 | H9 |
| 462.1-0880-026A0-XM | 8.80 | 27.68 | 87.72 | 89.00 | 10.00 | 140.00 | 47.00 | 1.60 | 3.15 | 20 | h6 | H9 |
| 462.1-0884-026A0-XM | 8.84 | 27.81 | 87.71 | 89.00 | 10.00 | 140.00 | 47.00 | 1.61 | 3.15 | 20 | h6 | H9 |
| 462.1-0890-026A0-XM | 8.90 | 28.00 | 87.70 | 89.00 | 10.00 | 140.00 | 47.00 | 1.62 | 3.15 | 20 | h6 | H9 |
| 462.1-0900-027A0-XM | 9.00 | 28.31 | 87.69 | 89.00 | 10.00 | 140.00 | 47.00 | 1.64 | 3.15 | 20 | h6 | H9 |
| 462.1-0905-027A0-XM | 9.05 | 28.47 | 87.68 | 89.00 | 10.00 | 140.00 | 47.00 | 1.65 | 3.15 | 20 | h6 | H9 |
| 462.1-0909-027A0-XM | 9.09 | 28.59 | 87.68 | 89.00 | 10.00 | 140.00 | 47.00 | 1.65 | 3.14 | 20 | h6 | H9 |
| 462.1-0910-027A0-XM | 9.10 | 28.62 | 87.68 | 89.00 | 10.00 | 140.00 | 47.00 | 1.66 | 3.15 | 20 | h6 | H9 |
| 462.1-0913-027A0-XM | 9.13 | 28.72 | 87.67 | 89.00 | 10.00 | 140.00 | 47.00 | 1.66 | 3.15 | 20 | h6 | H9 |
| 462.1-0920-027A0-XM | 9.20 | 28.94 | 87.66 | 89.00 | 10.00 | 140.00 | 47.00 | 1.67 | 3.15 | 20 | h6 | H9 |
| 462.1-0925-027A0-XM | 9.25 | 29.10 | 87.65 | 89.00 | 10.00 | 140.00 | 47.00 | 1.68 | 3.15 | 20 | h6 | H9 |
| 462.1-0930-028A0-XM | 9.30 | 29.25 | 87.65 | 89.00 | 10.00 | 140.00 | 47.00 | 1.69 | 3.15 | 20 | h6 | H9 |
| 462.1-0935-028A0-XM | 9.35 | 29.41 | 87.64 | 89.00 | 10.00 | 140.00 | 47.00 | 1.70 | 3.15 | 20 | h6 | H9 |
| 462.1-0940-028A0-XM | 9.40 | 29.57 | 87.63 | 89.00 | 10.00 | 140.00 | 47.00 | 1.71 | 3.15 | 20 | h6 | H9 |
| 462.1-0950-029A0-XM | 9.50 | 29.88 | 87.62 | 89.00 | 10.00 | 140.00 | 47.00 | 1.73 | 3.15 | 20 | h6 | H9 |
| 462.1-0953-029A0-XM | 9.52 | 29.98 | 87.61 | 89.00 | 10.00 | 140.00 | 47.00 | 1.73 | 3.15 | 20 | h6 | H9 |
| 462.1-0958-029A0-XM | 9.58 | 30.13 | 87.61 | 89.00 | 10.00 | 140.00 | 47.00 | 1.74 | 3.15 | 20 | h6 | H9 |
| 462.1-0960-029A0-XM | 9.60 | 30.20 | 87.60 | 89.00 | 10.00 | 140.00 | 47.00 | 1.75 | 3.15 | 20 | h6 | H9 |
| 462.1-0965-029A0-XM | 9.65 | 30.35 | 87.60 | 89.00 | 10.00 | 140.00 | 47.00 | 1.76 | 3.15 | 20 | h6 | H9 |
| 462.1-0970-029A0-XM | 9.70 | 30.51 | 87.59 | 89.00 | 10.00 | 140.00 | 47.00 | 1.77 | 3.15 | 20 | h6 | H9 |
| 462.1-0980-029A0-XM | 9.80 | 30.83 | 87.57 | 89.00 | 10.00 | 140.00 | 47.00 | 1.78 | 3.15 | 20 | h6 | H9 |
● – Первый выбор ○ – Хороший выбор
