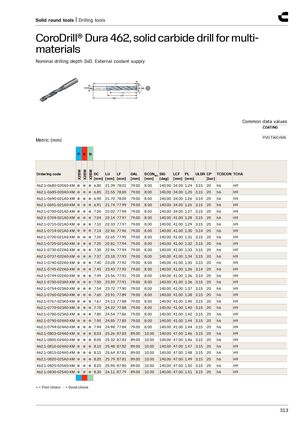

Твердосплавные инструменты с круглым профилем | Инструменты для сверления
CoroDrill® Dura 462, твердосплавное сверло для обработки разнообразных материалов
Номинальная глубина сверления 3xD. Внешняя подача СОЖ
Стандартные значения параметров
Покрытие: PVD TiAlCrSiN
Метрические (мм)
Выбор: P K N X2BM
| Код заказа | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR [бар] | CP | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0680-020A0-XM | 6.80 | 21.39 | 78.01 | 79.00 | 8.00 | 140.00 | 34.00 | 1.24 | 3.15 | 20 | h6 | H9 |
| 462.1-0685-020A0-XM | 6.85 | 21.55 | 78.00 | 79.00 | 8.00 | 140.00 | 34.00 | 1.25 | 3.15 | 20 | h6 | H9 |
| 462.1-0690-021A0-XM | 6.90 | 21.70 | 78.00 | 79.00 | 8.00 | 140.00 | 34.00 | 1.26 | 3.14 | 20 | h6 | H9 |
| 462.1-0691-021A0-XM | 6.91 | 21.74 | 77.99 | 79.00 | 8.00 | 140.00 | 34.00 | 1.26 | 3.15 | 20 | h6 | H9 |
| 462.1-0700-021A0-XM | 7.00 | 22.02 | 77.98 | 79.00 | 8.00 | 140.00 | 34.00 | 1.27 | 3.15 | 20 | h6 | H9 |
| 462.1-0704-021A0-XM | 7.04 | 22.14 | 77.97 | 79.00 | 8.00 | 140.00 | 41.00 | 1.28 | 3.15 | 20 | h6 | H9 |
| 462.1-0710-021A0-XM | 7.10 | 22.33 | 77.97 | 79.00 | 8.00 | 140.00 | 41.00 | 1.29 | 3.15 | 20 | h6 | H9 |
| 462.1-0714-021A0-XM | 7.14 | 22.46 | 77.96 | 79.00 | 8.00 | 140.00 | 41.00 | 1.30 | 3.14 | 20 | h6 | H9 |
| 462.1-0720-021A0-XM | 7.20 | 22.65 | 77.95 | 79.00 | 8.00 | 140.00 | 41.00 | 1.31 | 3.15 | 20 | h6 | H9 |
| 462.1-0725-021A0-XM | 7.25 | 22.81 | 77.94 | 79.00 | 8.00 | 140.00 | 41.00 | 1.32 | 3.15 | 20 | h6 | H9 |
| 462.1-0730-022A0-XM | 7.30 | 22.96 | 77.94 | 79.00 | 8.00 | 140.00 | 41.00 | 1.33 | 3.15 | 20 | h6 | H9 |
| 462.1-0737-022A0-XM | 7.37 | 23.18 | 77.93 | 79.00 | 8.00 | 140.00 | 41.00 | 1.34 | 3.15 | 20 | h6 | H9 |
| 462.1-0740-022A0-XM | 7.40 | 23.28 | 77.92 | 79.00 | 8.00 | 140.00 | 41.00 | 1.35 | 3.15 | 20 | h6 | H9 |
| 462.1-0745-022A0-XM | 7.45 | 23.43 | 77.92 | 79.00 | 8.00 | 140.00 | 41.00 | 1.36 | 3.14 | 20 | h6 | H9 |
| 462.1-0749-022A0-XM | 7.49 | 23.56 | 77.91 | 79.00 | 8.00 | 140.00 | 41.00 | 1.36 | 3.14 | 20 | h6 | H9 |
| 462.1-0750-023A0-XM | 7.50 | 23.59 | 77.91 | 79.00 | 8.00 | 140.00 | 41.00 | 1.36 | 3.15 | 20 | h6 | H9 |
| 462.1-0754-023A0-XM | 7.54 | 23.72 | 77.90 | 79.00 | 8.00 | 140.00 | 41.00 | 1.37 | 3.15 | 20 | h6 | H9 |
| 462.1-0760-023A0-XM | 7.60 | 23.91 | 77.89 | 79.00 | 8.00 | 140.00 | 41.00 | 1.38 | 3.15 | 20 | h6 | H9 |
| 462.1-0767-023A0-XM | 7.67 | 24.13 | 77.88 | 79.00 | 8.00 | 140.00 | 41.00 | 1.40 | 3.15 | 20 | h6 | H9 |
| 462.1-0770-023A0-XM | 7.70 | 24.22 | 77.88 | 79.00 | 8.00 | 140.00 | 41.00 | 1.40 | 3.15 | 20 | h6 | H9 |
| 462.1-0780-023A0-XM | 7.80 | 24.54 | 77.86 | 79.00 | 8.00 | 140.00 | 41.00 | 1.42 | 3.15 | 20 | h6 | H9 |
| 462.1-0790-024A0-XM | 7.90 | 24.85 | 77.85 | 79.00 | 8.00 | 140.00 | 41.00 | 1.44 | 3.15 | 20 | h6 | H9 |
| 462.1-0794-024A0-XM | 7.94 | 24.98 | 77.84 | 79.00 | 8.00 | 140.00 | 41.00 | 1.44 | 3.15 | 20 | h6 | H9 |
| 462.1-0803-024A0-XM | 8.03 | 25.26 | 87.83 | 89.00 | 10.00 | 140.00 | 47.00 | 1.46 | 3.15 | 20 | h6 | H9 |
| 462.1-0805-024A0-XM | 8.05 | 25.32 | 87.83 | 89.00 | 10.00 | 140.00 | 47.00 | 1.46 | 3.15 | 20 | h6 | H9 |
| 462.1-0810-024A0-XM | 8.10 | 25.48 | 87.82 | 89.00 | 10.00 | 140.00 | 47.00 | 1.47 | 3.15 | 20 | h6 | H9 |
| 462.1-0815-024A0-XM | 8.15 | 25.64 | 87.81 | 89.00 | 10.00 | 140.00 | 47.00 | 1.48 | 3.15 | 20 | h6 | H9 |
| 462.1-0820-025A0-XM | 8.20 | 25.79 | 87.81 | 89.00 | 10.00 | 140.00 | 47.00 | 1.49 | 3.15 | 20 | h6 | H9 |
| 462.1-0825-025A0-XM | 8.25 | 25.95 | 87.80 | 89.00 | 10.00 | 140.00 | 47.00 | 1.50 | 3.15 | 20 | h6 | H9 |
| 462.1-0830-025A0-XM | 8.30 | 26.11 | 87.79 | 89.00 | 10.00 | 140.00 | 47.00 | 1.51 | 3.15 | 20 | h6 | H9 |
● – Первый выбор ○ – Хороший выбор
