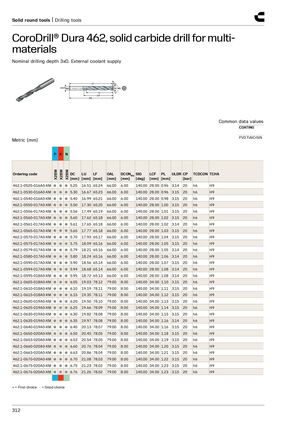

Твердосплавные инструменты с круглым профилем | Инструменты для сверления
CoroDrill® Dura 462, твердосплавное сверло для обработки разнообразных материалов
Номинальная глубина сверления 3xD. Внешняя подача СОЖ
Стандартные значения параметров
Покрытие: PVD TiAlCrSiN
Метрические (мм)
Выбор: P K N X2BM
| Код заказа | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR [бар] | CP | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0525-016A0-XM | 5.25 | 16.51 | 65.24 | 66.00 | 6.00 | 140.00 | 28.00 | 0.96 | 3.14 | 20 | h6 | H9 |
| 462.1-0530-016A0-XM | 5.30 | 16.67 | 65.23 | 66.00 | 6.00 | 140.00 | 28.00 | 0.96 | 3.15 | 20 | h6 | H9 |
| 462.1-0540-016A0-XM | 5.40 | 16.99 | 65.21 | 66.00 | 6.00 | 140.00 | 28.00 | 0.98 | 3.15 | 20 | h6 | H9 |
| 462.1-0550-017A0-XM | 5.50 | 17.30 | 65.20 | 66.00 | 6.00 | 140.00 | 28.00 | 1.00 | 3.15 | 20 | h6 | H9 |
| 462.1-0556-017A0-XM | 5.56 | 17.49 | 65.19 | 66.00 | 6.00 | 140.00 | 28.00 | 1.01 | 3.15 | 20 | h6 | H9 |
| 462.1-0560-017A0-XM | 5.60 | 17.62 | 65.18 | 66.00 | 6.00 | 140.00 | 28.00 | 1.02 | 3.15 | 20 | h6 | H9 |
| 462.1-0561-017A0-XM | 5.61 | 17.65 | 65.18 | 66.00 | 6.00 | 140.00 | 28.00 | 1.02 | 3.14 | 20 | h6 | H9 |
| 462.1-0565-017A0-XM | 5.65 | 17.77 | 65.18 | 66.00 | 6.00 | 140.00 | 28.00 | 1.03 | 3.15 | 20 | h6 | H9 |
| 462.1-0570-017A0-XM | 5.70 | 17.93 | 65.17 | 66.00 | 6.00 | 140.00 | 28.00 | 1.04 | 3.15 | 20 | h6 | H9 |
| 462.1-0575-017A0-XM | 5.75 | 18.09 | 65.16 | 66.00 | 6.00 | 140.00 | 28.00 | 1.05 | 3.15 | 20 | h6 | H9 |
| 462.1-0579-017A0-XM | 5.79 | 18.21 | 65.16 | 66.00 | 6.00 | 140.00 | 28.00 | 1.05 | 3.14 | 20 | h6 | H9 |
| 462.1-0580-017A0-XM | 5.80 | 18.24 | 65.16 | 66.00 | 6.00 | 140.00 | 28.00 | 1.06 | 3.14 | 20 | h6 | H9 |
| 462.1-0590-017A0-XM | 5.90 | 18.56 | 65.14 | 66.00 | 6.00 | 140.00 | 28.00 | 1.07 | 3.15 | 20 | h6 | H9 |
| 462.1-0594-017A0-XM | 5.94 | 18.68 | 65.14 | 66.00 | 6.00 | 140.00 | 28.00 | 1.08 | 3.14 | 20 | h6 | H9 |
| 462.1-0595-018A0-XM | 5.95 | 18.72 | 65.13 | 66.00 | 6.00 | 140.00 | 28.00 | 1.08 | 3.14 | 20 | h6 | H9 |
| 462.1-0605-018A0-XM | 6.05 | 19.03 | 78.12 | 79.00 | 8.00 | 140.00 | 34.00 | 1.10 | 3.15 | 20 | h6 | H9 |
| 462.1-0610-018A0-XM | 6.10 | 19.19 | 78.11 | 79.00 | 8.00 | 140.00 | 34.00 | 1.11 | 3.15 | 20 | h6 | H9 |
| 462.1-0615-018A0-XM | 6.15 | 19.35 | 78.11 | 79.00 | 8.00 | 140.00 | 34.00 | 1.12 | 3.15 | 20 | h6 | H9 |
| 462.1-0620-019A0-XM | 6.20 | 19.50 | 78.10 | 79.00 | 8.00 | 140.00 | 34.00 | 1.13 | 3.15 | 20 | h6 | H9 |
| 462.1-0625-019A0-XM | 6.25 | 19.66 | 78.09 | 79.00 | 8.00 | 140.00 | 34.00 | 1.14 | 3.15 | 20 | h6 | H9 |
| 462.1-0630-019A0-XM | 6.30 | 19.82 | 78.08 | 79.00 | 8.00 | 140.00 | 34.00 | 1.15 | 3.15 | 20 | h6 | H9 |
| 462.1-0635-019A0-XM | 6.35 | 19.97 | 78.08 | 79.00 | 8.00 | 140.00 | 34.00 | 1.16 | 3.14 | 20 | h6 | H9 |
| 462.1-0640-019A0-XM | 6.40 | 20.13 | 78.07 | 79.00 | 8.00 | 140.00 | 34.00 | 1.16 | 3.15 | 20 | h6 | H9 |
| 462.1-0650-020A0-XM | 6.50 | 20.45 | 78.05 | 79.00 | 8.00 | 140.00 | 34.00 | 1.18 | 3.15 | 20 | h6 | H9 |
| 462.1-0653-020A0-XM | 6.53 | 20.54 | 78.05 | 79.00 | 8.00 | 140.00 | 34.00 | 1.19 | 3.15 | 20 | h6 | H9 |
| 462.1-0660-020A0-XM | 6.60 | 20.76 | 78.04 | 79.00 | 8.00 | 140.00 | 34.00 | 1.20 | 3.15 | 20 | h6 | H9 |
| 462.1-0663-020A0-XM | 6.63 | 20.86 | 78.04 | 79.00 | 8.00 | 140.00 | 34.00 | 1.21 | 3.15 | 20 | h6 | H9 |
| 462.1-0670-020A0-XM | 6.70 | 21.08 | 78.03 | 79.00 | 8.00 | 140.00 | 34.00 | 1.22 | 3.15 | 20 | h6 | H9 |
| 462.1-0675-020A0-XM | 6.75 | 21.23 | 78.02 | 79.00 | 8.00 | 140.00 | 34.00 | 1.23 | 3.15 | 20 | h6 | H9 |
| 462.1-0676-020A0-XM | 6.76 | 21.26 | 78.02 | 79.00 | 8.00 | 140.00 | 34.00 | 1.23 | 3.15 | 20 | h6 | H9 |
● – Первый выбор ○ – Хороший выбор
