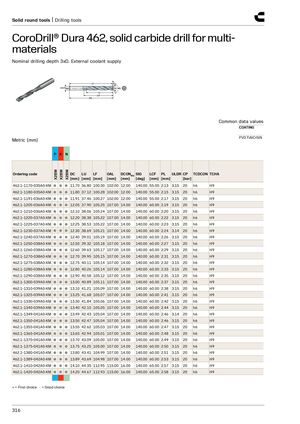

Твердосплавные инструменты с круглым профилем | Инструменты для сверления
CoroDrill® Dura 462, твердосплавное сверло для обработки разнообразных материалов
Номинальная глубина сверления 3xD. Внешняя подача СОЖ
Стандартные значения параметров
Покрытие: PVD TiAlCrSiN
Метрические (мм)
Выбор: P K N X2BM
| Код заказа | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR [бар] | CP | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-1170-035A0-XM | 11.70 | 36.80 | 100.30 | 102.00 | 12.00 | 140.00 | 55.00 | 2.13 | 3.15 | 20 | h6 | H9 |
| 462.1-1180-035A0-XM | 11.80 | 37.12 | 100.28 | 102.00 | 12.00 | 140.00 | 55.00 | 2.15 | 3.15 | 20 | h6 | H9 |
| 462.1-1191-036A0-XM | 11.91 | 37.46 | 100.27 | 102.00 | 12.00 | 140.00 | 55.00 | 2.17 | 3.15 | 20 | h6 | H9 |
| 462.1-1205-036A0-XM | 12.05 | 37.90 | 105.25 | 107.00 | 14.00 | 140.00 | 60.00 | 2.19 | 3.15 | 20 | h6 | H9 |
| 462.1-1210-036A0-XM | 12.10 | 38.06 | 105.24 | 107.00 | 14.00 | 140.00 | 60.00 | 2.20 | 3.15 | 20 | h6 | H9 |
| 462.1-1220-037A0-XM | 12.20 | 38.38 | 105.22 | 107.00 | 14.00 | 140.00 | 60.00 | 2.22 | 3.15 | 20 | h6 | H9 |
| 462.1-1225-037A0-XM | 12.25 | 38.53 | 105.22 | 107.00 | 14.00 | 140.00 | 60.00 | 2.23 | 3.15 | 20 | h6 | H9 |
| 462.1-1230-037A0-XM | 12.30 | 38.69 | 105.21 | 107.00 | 14.00 | 140.00 | 60.00 | 2.24 | 3.14 | 20 | h6 | H9 |
| 462.1-1240-037A0-XM | 12.40 | 39.01 | 105.19 | 107.00 | 14.00 | 140.00 | 60.00 | 2.26 | 3.15 | 20 | h6 | H9 |
| 462.1-1250-038A0-XM | 12.50 | 39.32 | 105.18 | 107.00 | 14.00 | 140.00 | 60.00 | 2.27 | 3.15 | 20 | h6 | H9 |
| 462.1-1260-038A0-XM | 12.60 | 39.63 | 105.17 | 107.00 | 14.00 | 140.00 | 60.00 | 2.29 | 3.15 | 20 | h6 | H9 |
| 462.1-1270-038A0-XM | 12.70 | 39.95 | 105.15 | 107.00 | 14.00 | 140.00 | 60.00 | 2.31 | 3.15 | 20 | h6 | H9 |
| 462.1-1275-038A0-XM | 12.75 | 40.11 | 105.14 | 107.00 | 14.00 | 140.00 | 60.00 | 2.32 | 3.15 | 20 | h6 | H9 |
| 462.1-1280-038A0-XM | 12.80 | 40.26 | 105.14 | 107.00 | 14.00 | 140.00 | 60.00 | 2.33 | 3.15 | 20 | h6 | H9 |
| 462.1-1290-038A0-XM | 12.90 | 40.58 | 105.12 | 107.00 | 14.00 | 140.00 | 60.00 | 2.35 | 3.15 | 20 | h6 | H9 |
| 462.1-1300-039A0-XM | 13.00 | 40.89 | 105.11 | 107.00 | 14.00 | 140.00 | 60.00 | 2.37 | 3.15 | 20 | h6 | H9 |
| 462.1-1310-039A0-XM | 13.10 | 41.21 | 105.09 | 107.00 | 14.00 | 140.00 | 60.00 | 2.38 | 3.15 | 20 | h6 | H9 |
| 462.1-1325-039A0-XM | 13.25 | 41.68 | 105.07 | 107.00 | 14.00 | 140.00 | 60.00 | 2.41 | 3.15 | 20 | h6 | H9 |
| 462.1-1330-039A0-XM | 13.30 | 41.84 | 105.06 | 107.00 | 14.00 | 140.00 | 60.00 | 2.42 | 3.15 | 20 | h6 | H9 |
| 462.1-1340-039A0-XM | 13.40 | 42.15 | 105.05 | 107.00 | 14.00 | 140.00 | 60.00 | 2.44 | 3.15 | 20 | h6 | H9 |
| 462.1-1349-041A0-XM | 13.49 | 42.43 | 105.04 | 107.00 | 14.00 | 140.00 | 60.00 | 2.46 | 3.14 | 20 | h6 | H9 |
| 462.1-1350-041A0-XM | 13.50 | 42.47 | 105.04 | 107.00 | 14.00 | 140.00 | 60.00 | 2.46 | 3.15 | 20 | h6 | H9 |
| 462.1-1355-041A0-XM | 13.55 | 42.62 | 105.03 | 107.00 | 14.00 | 140.00 | 60.00 | 2.47 | 3.15 | 20 | h6 | H9 |
| 462.1-1365-041A0-XM | 13.65 | 42.94 | 105.01 | 107.00 | 14.00 | 140.00 | 60.00 | 2.48 | 3.15 | 20 | h6 | H9 |
| 462.1-1370-041A0-XM | 13.70 | 43.09 | 105.00 | 107.00 | 14.00 | 140.00 | 60.00 | 2.49 | 3.15 | 20 | h6 | H9 |
| 462.1-1375-041A0-XM | 13.75 | 43.25 | 105.00 | 107.00 | 14.00 | 140.00 | 60.00 | 2.50 | 3.15 | 20 | h6 | H9 |
| 462.1-1380-041A0-XM | 13.80 | 43.41 | 104.99 | 107.00 | 14.00 | 140.00 | 60.00 | 2.51 | 3.15 | 20 | h6 | H9 |
| 462.1-1389-042A0-XM | 13.89 | 43.69 | 104.98 | 107.00 | 14.00 | 140.00 | 60.00 | 2.53 | 3.15 | 20 | h6 | H9 |
| 462.1-1410-042A0-XM | 14.10 | 44.35 | 112.95 | 115.00 | 16.00 | 140.00 | 65.00 | 2.57 | 3.15 | 20 | h6 | H9 |
| 462.1-1420-042A0-XM | 14.20 | 44.67 | 112.93 | 115.00 | 16.00 | 140.00 | 65.00 | 2.58 | 3.15 | 20 | h6 | H9 |
● – Первый выбор ○ – Хороший выбор
