Монолитные круглые инструменты | Сверлильные инструменты

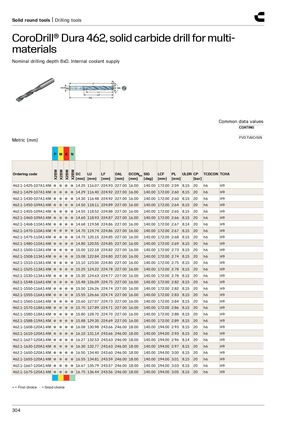

CoroDrill® Dura 462, монолитное карбидное сверло для многопроцессной обработки
Номинальная глубина сверления: 8xD. Встроенная система подачи охлаждающей жидкости.
Стандартные значения параметров
Покрытие: PVD TiAlCrSiN
Метрические размеры (мм)
| Код заказа | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR [bar] | CP | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-1425-107A1-XM | 14.25 | 116.07 | 224.93 | 227.00 | 16.00 | 140.00 | 172.00 | 2.59 | 8.15 | 20 | h6 | H9 | |
| 462.1-1429-107A1-XM | 14.29 | 116.40 | 224.92 | 227.00 | 16.00 | 140.00 | 172.00 | 2.60 | 8.15 | 20 | h6 | H9 | |
| 462.1-1430-107A1-XM | 14.30 | 116.48 | 224.92 | 227.00 | 16.00 | 140.00 | 172.00 | 2.60 | 8.15 | 20 | h6 | H9 | |
| 462.1-1450-109A1-XM | 14.50 | 118.11 | 224.89 | 227.00 | 16.00 | 140.00 | 172.00 | 2.64 | 8.15 | 20 | h6 | H9 | |
| 462.1-1455-109A1-XM | 14.55 | 118.52 | 224.88 | 227.00 | 16.00 | 140.00 | 172.00 | 2.65 | 8.15 | 20 | h6 | H9 | |
| 462.1-1460-109A1-XM | 14.60 | 118.93 | 224.87 | 227.00 | 16.00 | 140.00 | 172.00 | 2.66 | 8.15 | 20 | h6 | H9 | |
| 462.1-1468-110A1-XM | 14.68 | 119.58 | 224.86 | 227.00 | 16.00 | 140.00 | 172.00 | 2.67 | 8.14 | 20 | h6 | H9 | |
| 462.1-1470-110A1-XM | 14.70 | 119.74 | 224.86 | 227.00 | 16.00 | 140.00 | 172.00 | 2.67 | 8.15 | 20 | h6 | H9 | |
| 462.1-1475-110A1-XM | 14.75 | 120.15 | 224.85 | 227.00 | 16.00 | 140.00 | 172.00 | 2.68 | 8.15 | 20 | h6 | H9 | |
| 462.1-1480-110A1-XM | 14.80 | 120.55 | 224.85 | 227.00 | 16.00 | 140.00 | 172.00 | 2.69 | 8.15 | 20 | h6 | H9 | |
| 462.1-1500-113A1-XM | 15.00 | 122.18 | 224.82 | 227.00 | 16.00 | 140.00 | 172.00 | 2.73 | 8.15 | 20 | h6 | H9 | |
| 462.1-1508-113A1-XM | 15.08 | 122.84 | 224.80 | 227.00 | 16.00 | 140.00 | 172.00 | 2.74 | 8.15 | 20 | h6 | H9 | |
| 462.1-1510-113A1-XM | 15.10 | 123.00 | 224.80 | 227.00 | 16.00 | 140.00 | 172.00 | 2.75 | 8.15 | 20 | h6 | H9 | |
| 462.1-1525-113A1-XM | 15.25 | 124.22 | 224.78 | 227.00 | 16.00 | 140.00 | 172.00 | 2.78 | 8.15 | 20 | h6 | H9 | |
| 462.1-1530-113A1-XM | 15.30 | 124.63 | 224.77 | 227.00 | 16.00 | 140.00 | 172.00 | 2.78 | 8.15 | 20 | h6 | H9 | |
| 462.1-1548-116A1-XM | 15.48 | 126.09 | 224.75 | 227.00 | 16.00 | 140.00 | 172.00 | 2.82 | 8.15 | 20 | h6 | H9 | |
| 462.1-1550-116A1-XM | 15.50 | 126.26 | 224.74 | 227.00 | 16.00 | 140.00 | 172.00 | 2.82 | 8.15 | 20 | h6 | H9 | |
| 462.1-1555-116A1-XM | 15.55 | 126.66 | 224.74 | 227.00 | 16.00 | 140.00 | 172.00 | 2.83 | 8.15 | 20 | h6 | H9 | |
| 462.1-1560-116A1-XM | 15.60 | 127.07 | 224.73 | 227.00 | 16.00 | 140.00 | 172.00 | 2.84 | 8.15 | 20 | h6 | H9 | |
| 462.1-1570-118A1-XM | 15.70 | 127.89 | 224.71 | 227.00 | 16.00 | 140.00 | 172.00 | 2.86 | 8.15 | 20 | h6 | H9 | |
| 462.1-1580-118A1-XM | 15.80 | 128.70 | 224.70 | 227.00 | 16.00 | 140.00 | 172.00 | 2.88 | 8.15 | 20 | h6 | H9 | |
| 462.1-1588-119A1-XM | 15.88 | 129.35 | 224.69 | 227.00 | 16.00 | 140.00 | 172.00 | 2.89 | 8.15 | 20 | h6 | H9 | |
| 462.1-1608-120A1-XM | 16.08 | 130.98 | 243.66 | 246.00 | 18.00 | 140.00 | 194.00 | 2.93 | 8.15 | 20 | h6 | H9 | |
| 462.1-1610-120A1-XM | 16.10 | 131.14 | 243.66 | 246.00 | 18.00 | 140.00 | 194.00 | 2.93 | 8.15 | 20 | h6 | H9 | |
| 462.1-1627-120A1-XM | 16.27 | 132.53 | 243.63 | 246.00 | 18.00 | 140.00 | 194.00 | 2.96 | 8.14 | 20 | h6 | H9 | |
| 462.1-1630-120A1-XM | 16.30 | 132.77 | 243.63 | 246.00 | 18.00 | 140.00 | 194.00 | 2.97 | 8.15 | 20 | h6 | H9 | |
| 462.1-1650-120A1-XM | 16.50 | 134.40 | 243.60 | 246.00 | 18.00 | 140.00 | 194.00 | 3.00 | 8.15 | 20 | h6 | H9 | |
| 462.1-1655-120A1-XM | 16.55 | 134.81 | 243.59 | 246.00 | 18.00 | 140.00 | 194.00 | 3.01 | 8.15 | 20 | h6 | H9 | |
| 462.1-1667-120A1-XM | 16.67 | 135.79 | 243.57 | 246.00 | 18.00 | 140.00 | 194.00 | 3.03 | 8.15 | 20 | h6 | H9 | |
| 462.1-1675-120A1-XM | 16.75 | 136.44 | 243.56 | 246.00 | 18.00 | 140.00 | 194.00 | 3.05 | 8.15 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
