Монолитные круглые инструменты | Сверлильные инструменты

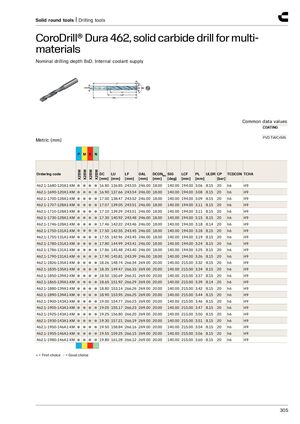

CoroDrill® Dura 462, монолитное карбидное сверло для многопроцессной обработки
Номинальная глубина сверления: 8xD. Встроенная система подачи охлаждающей жидкости.
Стандартные значения параметров
Покрытие: PVD TiAlCrSiN
Метрические размеры (мм)
| Код заказа | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR [bar] | CP | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-1680-120A1-XM | 16.80 | 136.85 | 243.55 | 246.00 | 18.00 | 140.00 | 194.00 | 3.06 | 8.15 | 20 | h6 | H9 | |
| 462.1-1690-120A1-XM | 16.90 | 137.66 | 243.54 | 246.00 | 18.00 | 140.00 | 194.00 | 3.08 | 8.15 | 20 | h6 | H9 | |
| 462.1-1700-128A1-XM | 17.00 | 138.47 | 243.52 | 246.00 | 18.00 | 140.00 | 194.00 | 3.09 | 8.15 | 20 | h6 | H9 | |
| 462.1-1707-128A1-XM | 17.07 | 139.05 | 243.51 | 246.00 | 18.00 | 140.00 | 194.00 | 3.11 | 8.15 | 20 | h6 | H9 | |
| 462.1-1710-128A1-XM | 17.10 | 139.29 | 243.51 | 246.00 | 18.00 | 140.00 | 194.00 | 3.11 | 8.15 | 20 | h6 | H9 | |
| 462.1-1730-128A1-XM | 17.30 | 140.92 | 243.48 | 246.00 | 18.00 | 140.00 | 194.00 | 3.15 | 8.15 | 20 | h6 | H9 | |
| 462.1-1746-128A1-XM | 17.46 | 142.22 | 243.46 | 246.00 | 18.00 | 140.00 | 194.00 | 3.18 | 8.14 | 20 | h6 | H9 | |
| 462.1-1750-131A1-XM | 17.50 | 142.55 | 243.45 | 246.00 | 18.00 | 140.00 | 194.00 | 3.18 | 8.15 | 20 | h6 | H9 | |
| 462.1-1755-131A1-XM | 17.55 | 142.96 | 243.45 | 246.00 | 18.00 | 140.00 | 194.00 | 3.19 | 8.15 | 20 | h6 | H9 | |
| 462.1-1780-131A1-XM | 17.80 | 144.99 | 243.41 | 246.00 | 18.00 | 140.00 | 194.00 | 3.24 | 8.15 | 20 | h6 | H9 | |
| 462.1-1786-131A1-XM | 17.86 | 145.48 | 243.40 | 246.00 | 18.00 | 140.00 | 194.00 | 3.25 | 8.15 | 20 | h6 | H9 | |
| 462.1-1790-131A1-XM | 17.90 | 145.81 | 243.39 | 246.00 | 18.00 | 140.00 | 194.00 | 3.26 | 8.15 | 20 | h6 | H9 | |
| 462.1-1826-135A1-XM | 18.26 | 148.74 | 266.34 | 269.00 | 20.00 | 140.00 | 215.00 | 3.32 | 8.15 | 20 | h6 | H9 | |
| 462.1-1835-135A1-XM | 18.35 | 149.47 | 266.33 | 269.00 | 20.00 | 140.00 | 215.00 | 3.34 | 8.15 | 20 | h6 | H9 | |
| 462.1-1850-139A1-XM | 18.50 | 150.69 | 266.31 | 269.00 | 20.00 | 140.00 | 215.00 | 3.37 | 8.15 | 20 | h6 | H9 | |
| 462.1-1865-139A1-XM | 18.65 | 151.92 | 266.29 | 269.00 | 20.00 | 140.00 | 215.00 | 3.39 | 8.14 | 20 | h6 | H9 | |
| 462.1-1880-139A1-XM | 18.80 | 153.14 | 266.26 | 269.00 | 20.00 | 140.00 | 215.00 | 3.42 | 8.15 | 20 | h6 | H9 | |
| 462.1-1890-139A1-XM | 18.90 | 153.95 | 266.25 | 269.00 | 20.00 | 140.00 | 215.00 | 3.44 | 8.15 | 20 | h6 | H9 | |
| 462.1-1900-143A1-XM | 19.00 | 154.77 | 266.23 | 269.00 | 20.00 | 140.00 | 215.00 | 3.46 | 8.15 | 20 | h6 | H9 | |
| 462.1-1905-143A1-XM | 19.05 | 155.17 | 266.23 | 269.00 | 20.00 | 140.00 | 215.00 | 3.47 | 8.15 | 20 | h6 | H9 | |
| 462.1-1925-143A1-XM | 19.25 | 156.80 | 266.20 | 269.00 | 20.00 | 140.00 | 215.00 | 3.50 | 8.15 | 20 | h6 | H9 | |
| 462.1-1930-143A1-XM | 19.30 | 157.21 | 266.19 | 269.00 | 20.00 | 140.00 | 215.00 | 3.51 | 8.15 | 20 | h6 | H9 | |
| 462.1-1950-146A1-XM | 19.50 | 158.84 | 266.16 | 269.00 | 20.00 | 140.00 | 215.00 | 3.54 | 8.15 | 20 | h6 | H9 | |
| 462.1-1955-146A1-XM | 19.55 | 159.25 | 266.15 | 269.00 | 20.00 | 140.00 | 215.00 | 3.56 | 8.15 | 20 | h6 | H9 | |
| 462.1-1980-146A1-XM | 19.80 | 161.28 | 266.12 | 269.00 | 20.00 | 140.00 | 215.00 | 3.60 | 8.15 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
