Монолитные круглые инструменты | Сверлильные инструменты

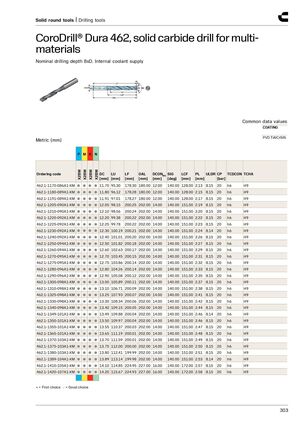

CoroDrill® Dura 462, монолитное карбидное сверло для многопроцессной обработки
Номинальная глубина сверления: 8xD. Встроенная система подачи охлаждающей жидкости.
Стандартные значения параметров
Покрытие: PVD TiAlCrSiN
Метрические размеры (мм)
| Код заказа | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR [bar] | CP | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-1230-092A1-XM | 12.30 | 100.19 | 200.21 | 202.00 | 14.00 | 140.00 | 151.00 | 2.24 | 8.14 | 20 | h6 | H9 | |
| 462.1-1240-092A1-XM | 12.40 | 101.01 | 200.20 | 202.00 | 14.00 | 140.00 | 151.00 | 2.26 | 8.15 | 20 | h6 | H9 | |
| 462.1-1250-094A1-XM | 12.50 | 101.82 | 200.18 | 202.00 | 14.00 | 140.00 | 151.00 | 2.27 | 8.15 | 20 | h6 | H9 | |
| 462.1-1260-094A1-XM | 12.60 | 102.63 | 200.17 | 202.00 | 14.00 | 140.00 | 151.00 | 2.29 | 8.15 | 20 | h6 | H9 | |
| 462.1-1270-095A1-XM | 12.70 | 103.45 | 200.15 | 202.00 | 14.00 | 140.00 | 151.00 | 2.31 | 8.15 | 20 | h6 | H9 | |
| 462.1-1275-095A1-XM | 12.75 | 103.86 | 200.14 | 202.00 | 14.00 | 140.00 | 151.00 | 2.32 | 8.15 | 20 | h6 | H9 | |
| 462.1-1280-096A1-XM | 12.80 | 104.26 | 200.14 | 202.00 | 14.00 | 140.00 | 151.00 | 2.33 | 8.15 | 20 | h6 | H9 | |
| 462.1-1290-096A1-XM | 12.90 | 105.08 | 200.12 | 202.00 | 14.00 | 140.00 | 151.00 | 2.35 | 8.15 | 20 | h6 | H9 | |
| 462.1-1300-098A1-XM | 13.00 | 105.89 | 200.11 | 202.00 | 14.00 | 140.00 | 151.00 | 2.37 | 8.15 | 20 | h6 | H9 | |
| 462.1-1310-098A1-XM | 13.10 | 106.71 | 200.09 | 202.00 | 14.00 | 140.00 | 151.00 | 2.38 | 8.15 | 20 | h6 | H9 | |
| 462.1-1325-098A1-XM | 13.25 | 107.93 | 200.07 | 202.00 | 14.00 | 140.00 | 151.00 | 2.41 | 8.15 | 20 | h6 | H9 | |
| 462.1-1330-098A1-XM | 13.30 | 108.34 | 200.06 | 202.00 | 14.00 | 140.00 | 151.00 | 2.42 | 8.15 | 20 | h6 | H9 | |
| 462.1-1340-098A1-XM | 13.40 | 109.15 | 200.05 | 202.00 | 14.00 | 140.00 | 151.00 | 2.44 | 8.15 | 20 | h6 | H9 | |
| 462.1-1349-101A1-XM | 13.49 | 109.88 | 200.04 | 202.00 | 14.00 | 140.00 | 151.00 | 2.46 | 8.14 | 20 | h6 | H9 | |
| 462.1-1350-101A1-XM | 13.50 | 109.97 | 200.04 | 202.00 | 14.00 | 140.00 | 151.00 | 2.46 | 8.15 | 20 | h6 | H9 | |
| 462.1-1355-101A1-XM | 13.55 | 110.37 | 200.03 | 202.00 | 14.00 | 140.00 | 151.00 | 2.47 | 8.15 | 20 | h6 | H9 | |
| 462.1-1365-101A1-XM | 13.65 | 111.19 | 200.01 | 202.00 | 14.00 | 140.00 | 151.00 | 2.48 | 8.15 | 20 | h6 | H9 | |
| 462.1-1370-103A1-XM | 13.70 | 111.59 | 200.01 | 202.00 | 14.00 | 140.00 | 151.00 | 2.49 | 8.15 | 20 | h6 | H9 | |
| 462.1-1375-103A1-XM | 13.75 | 112.00 | 200.00 | 202.00 | 14.00 | 140.00 | 151.00 | 2.50 | 8.15 | 20 | h6 | H9 | |
| 462.1-1380-103A1-XM | 13.80 | 112.41 | 199.99 | 202.00 | 14.00 | 140.00 | 151.00 | 2.51 | 8.15 | 20 | h6 | H9 | |
| 462.1-1389-104A1-XM | 13.89 | 113.14 | 199.98 | 202.00 | 14.00 | 140.00 | 151.00 | 2.53 | 8.14 | 20 | h6 | H9 | |
| 462.1-1410-105A1-XM | 14.10 | 114.85 | 224.95 | 227.00 | 16.00 | 140.00 | 172.00 | 2.57 | 8.15 | 20 | h6 | H9 | |
| 462.1-1420-107A1-XM | 14.20 | 115.67 | 224.93 | 227.00 | 16.00 | 140.00 | 172.00 | 2.58 | 8.15 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
