Цельные круглые инструменты | Сверлильные инструменты

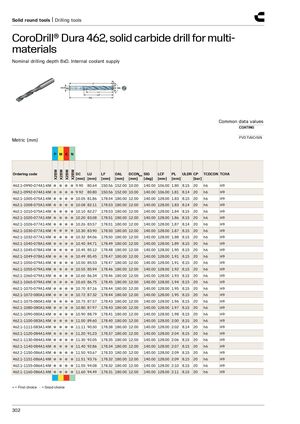

CoroDrill® Dura 462, цельнокарбидное сверло для многоматериальных работ
Номинальная глубина сверления 8xD. Внутреннее подведение СОЖ
Общие данные
ПОКРЫТИЕ: PVD TiAlCrSiN
Метрическая система (мм)
Доступно для материальных групп: P, M, K, N (X2BM)
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | CP | TCDCON [бар] | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0990-074A1-XM | 9.90 | 80.64 | 150.56 | 152.00 | 10.00 | 140.00 | 106.00 | 1.80 | 8.15 | 20 | h6 | H9 | |
| 462.1-0992-074A1-XM | 9.92 | 80.80 | 150.56 | 152.00 | 10.00 | 140.00 | 106.00 | 1.81 | 8.14 | 20 | h6 | H9 | |
| 462.1-1005-075A1-XM | 10.05 | 81.86 | 178.54 | 180.00 | 12.00 | 140.00 | 128.00 | 1.83 | 8.15 | 20 | h6 | H9 | |
| 462.1-1008-075A1-XM | 10.08 | 82.11 | 178.53 | 180.00 | 12.00 | 140.00 | 128.00 | 1.83 | 8.14 | 20 | h6 | H9 | |
| 462.1-1010-075A1-XM | 10.10 | 82.27 | 178.53 | 180.00 | 12.00 | 140.00 | 128.00 | 1.84 | 8.15 | 20 | h6 | H9 | |
| 462.1-1020-077A1-XM | 10.20 | 83.08 | 178.51 | 180.00 | 12.00 | 140.00 | 128.00 | 1.86 | 8.15 | 20 | h6 | H9 | |
| 462.1-1026-077A1-XM | 10.26 | 83.57 | 178.51 | 180.00 | 12.00 | 140.00 | 128.00 | 1.87 | 8.14 | 20 | h6 | H9 | |
| 462.1-1030-077A1-XM | 10.30 | 83.90 | 178.50 | 180.00 | 12.00 | 140.00 | 128.00 | 1.87 | 8.15 | 20 | h6 | H9 | |
| 462.1-1032-077A1-XM | 10.32 | 84.06 | 178.50 | 180.00 | 12.00 | 140.00 | 128.00 | 1.88 | 8.15 | 20 | h6 | H9 | |
| 462.1-1040-078A1-XM | 10.40 | 84.71 | 178.49 | 180.00 | 12.00 | 140.00 | 128.00 | 1.89 | 8.15 | 20 | h6 | H9 | |
| 462.1-1045-078A1-XM | 10.45 | 85.12 | 178.48 | 180.00 | 12.00 | 140.00 | 128.00 | 1.90 | 8.15 | 20 | h6 | H9 | |
| 462.1-1049-078A1-XM | 10.49 | 85.45 | 178.47 | 180.00 | 12.00 | 140.00 | 128.00 | 1.91 | 8.15 | 20 | h6 | H9 | |
| 462.1-1050-079A1-XM | 10.50 | 85.53 | 178.47 | 180.00 | 12.00 | 140.00 | 128.00 | 1.91 | 8.15 | 20 | h6 | H9 | |
| 462.1-1055-079A1-XM | 10.55 | 85.94 | 178.46 | 180.00 | 12.00 | 140.00 | 128.00 | 1.92 | 8.15 | 20 | h6 | H9 | |
| 462.1-1060-079A1-XM | 10.60 | 86.34 | 178.46 | 180.00 | 12.00 | 140.00 | 128.00 | 1.93 | 8.15 | 20 | h6 | H9 | |
| 462.1-1065-079A1-XM | 10.65 | 86.75 | 178.45 | 180.00 | 12.00 | 140.00 | 128.00 | 1.94 | 8.15 | 20 | h6 | H9 | |
| 462.1-1070-079A1-XM | 10.70 | 87.16 | 178.44 | 180.00 | 12.00 | 140.00 | 128.00 | 1.95 | 8.15 | 20 | h6 | H9 | |
| 462.1-1072-080A1-XM | 10.72 | 87.32 | 178.44 | 180.00 | 12.00 | 140.00 | 128.00 | 1.95 | 8.15 | 20 | h6 | H9 | |
| 462.1-1075-080A1-XM | 10.75 | 87.57 | 178.43 | 180.00 | 12.00 | 140.00 | 128.00 | 1.96 | 8.15 | 20 | h6 | H9 | |
| 462.1-1080-080A1-XM | 10.80 | 87.97 | 178.43 | 180.00 | 12.00 | 140.00 | 128.00 | 1.97 | 8.15 | 20 | h6 | H9 | |
| 462.1-1090-080A1-XM | 10.90 | 88.79 | 178.41 | 180.00 | 12.00 | 140.00 | 128.00 | 1.98 | 8.15 | 20 | h6 | H9 | |
| 462.1-1100-083A1-XM | 11.00 | 89.60 | 178.40 | 180.00 | 12.00 | 140.00 | 128.00 | 2.00 | 8.15 | 20 | h6 | H9 | |
| 462.1-1111-083A1-XM | 11.11 | 90.50 | 178.38 | 180.00 | 12.00 | 140.00 | 128.00 | 2.02 | 8.14 | 20 | h6 | H9 | |
| 462.1-1120-084A1-XM | 11.20 | 91.23 | 178.37 | 180.00 | 12.00 | 140.00 | 128.00 | 2.04 | 8.15 | 20 | h6 | H9 | |
| 462.1-1130-084A1-XM | 11.30 | 92.05 | 178.35 | 180.00 | 12.00 | 140.00 | 128.00 | 2.06 | 8.15 | 20 | h6 | H9 | |
| 462.1-1140-084A1-XM | 11.40 | 92.86 | 178.34 | 180.00 | 12.00 | 140.00 | 128.00 | 2.07 | 8.15 | 20 | h6 | H9 | |
| 462.1-1150-086A1-XM | 11.50 | 93.67 | 178.33 | 180.00 | 12.00 | 140.00 | 128.00 | 2.09 | 8.15 | 20 | h6 | H9 | |
| 462.1-1151-086A1-XM | 11.51 | 93.76 | 178.32 | 180.00 | 12.00 | 140.00 | 128.00 | 2.09 | 8.15 | 20 | h6 | H9 | |
| 462.1-1155-086A1-XM | 11.55 | 94.08 | 178.32 | 180.00 | 12.00 | 140.00 | 128.00 | 2.10 | 8.15 | 20 | h6 | H9 | |
| 462.1-1160-086A1-XM | 11.60 | 94.49 | 178.31 | 180.00 | 12.00 | 140.00 | 128.00 | 2.11 | 8.15 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
