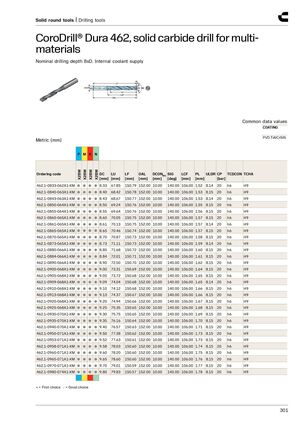

Цельные круглые инструменты | Сверлильные инструменты
CoroDrill® Dura 462, цельнокарбидное сверло для многоматериальных работ
Номинальная глубина сверления 8xD. Внутреннее подведение СОЖ
Общие данные
ПОКРЫТИЕ: PVD TiAlCrSiN
Метрическая система (мм)
Доступно для материальных групп: P, M, K, N (X2BM)
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | CP | TCDCON [бар] | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0833-062A1-XM | 8.33 | 67.85 | 150.79 | 152.00 | 10.00 | 140.00 | 106.00 | 1.52 | 8.14 | 20 | h6 | H9 | |
| 462.1-0840-063A1-XM | 8.40 | 68.42 | 150.78 | 152.00 | 10.00 | 140.00 | 106.00 | 1.53 | 8.15 | 20 | h6 | H9 | |
| 462.1-0843-063A1-XM | 8.43 | 68.67 | 150.77 | 152.00 | 10.00 | 140.00 | 106.00 | 1.53 | 8.14 | 20 | h6 | H9 | |
| 462.1-0850-064A1-XM | 8.50 | 69.24 | 150.76 | 152.00 | 10.00 | 140.00 | 106.00 | 1.55 | 8.15 | 20 | h6 | H9 | |
| 462.1-0855-064A1-XM | 8.55 | 69.64 | 150.76 | 152.00 | 10.00 | 140.00 | 106.00 | 1.56 | 8.15 | 20 | h6 | H9 | |
| 462.1-0860-065A1-XM | 8.60 | 70.05 | 150.75 | 152.00 | 10.00 | 140.00 | 106.00 | 1.57 | 8.15 | 20 | h6 | H9 | |
| 462.1-0861-065A1-XM | 8.61 | 70.13 | 150.75 | 152.00 | 10.00 | 140.00 | 106.00 | 1.57 | 8.14 | 20 | h6 | H9 | |
| 462.1-0865-065A1-XM | 8.65 | 70.46 | 150.74 | 152.00 | 10.00 | 140.00 | 106.00 | 1.57 | 8.15 | 20 | h6 | H9 | |
| 462.1-0870-065A1-XM | 8.70 | 70.87 | 150.73 | 152.00 | 10.00 | 140.00 | 106.00 | 1.58 | 8.15 | 20 | h6 | H9 | |
| 462.1-0873-065A1-XM | 8.73 | 71.11 | 150.73 | 152.00 | 10.00 | 140.00 | 106.00 | 1.59 | 8.14 | 20 | h6 | H9 | |
| 462.1-0880-066A1-XM | 8.80 | 71.68 | 150.72 | 152.00 | 10.00 | 140.00 | 106.00 | 1.60 | 8.15 | 20 | h6 | H9 | |
| 462.1-0884-066A1-XM | 8.84 | 72.01 | 150.71 | 152.00 | 10.00 | 140.00 | 106.00 | 1.61 | 8.15 | 20 | h6 | H9 | |
| 462.1-0890-066A1-XM | 8.90 | 72.50 | 150.70 | 152.00 | 10.00 | 140.00 | 106.00 | 1.62 | 8.15 | 20 | h6 | H9 | |
| 462.1-0900-068A1-XM | 9.00 | 73.31 | 150.69 | 152.00 | 10.00 | 140.00 | 106.00 | 1.64 | 8.15 | 20 | h6 | H9 | |
| 462.1-0905-068A1-XM | 9.05 | 73.72 | 150.68 | 152.00 | 10.00 | 140.00 | 106.00 | 1.65 | 8.15 | 20 | h6 | H9 | |
| 462.1-0909-068A1-XM | 9.09 | 74.04 | 150.68 | 152.00 | 10.00 | 140.00 | 106.00 | 1.65 | 8.14 | 20 | h6 | H9 | |
| 462.1-0910-068A1-XM | 9.10 | 74.12 | 150.68 | 152.00 | 10.00 | 140.00 | 106.00 | 1.66 | 8.15 | 20 | h6 | H9 | |
| 462.1-0913-068A1-XM | 9.13 | 74.37 | 150.67 | 152.00 | 10.00 | 140.00 | 106.00 | 1.66 | 8.15 | 20 | h6 | H9 | |
| 462.1-0920-068A1-XM | 9.20 | 74.94 | 150.66 | 152.00 | 10.00 | 140.00 | 106.00 | 1.67 | 8.15 | 20 | h6 | H9 | |
| 462.1-0925-068A1-XM | 9.25 | 75.35 | 150.65 | 152.00 | 10.00 | 140.00 | 106.00 | 1.68 | 8.15 | 20 | h6 | H9 | |
| 462.1-0930-070A1-XM | 9.30 | 75.75 | 150.65 | 152.00 | 10.00 | 140.00 | 106.00 | 1.69 | 8.15 | 20 | h6 | H9 | |
| 462.1-0935-070A1-XM | 9.35 | 76.16 | 150.64 | 152.00 | 10.00 | 140.00 | 106.00 | 1.70 | 8.15 | 20 | h6 | H9 | |
| 462.1-0940-070A1-XM | 9.40 | 76.57 | 150.63 | 152.00 | 10.00 | 140.00 | 106.00 | 1.71 | 8.15 | 20 | h6 | H9 | |
| 462.1-0950-071A1-XM | 9.50 | 77.38 | 150.62 | 152.00 | 10.00 | 140.00 | 106.00 | 1.73 | 8.15 | 20 | h6 | H9 | |
| 462.1-0953-071A1-XM | 9.52 | 77.63 | 150.61 | 152.00 | 10.00 | 140.00 | 106.00 | 1.73 | 8.15 | 20 | h6 | H9 | |
| 462.1-0958-071A1-XM | 9.58 | 78.03 | 150.60 | 152.00 | 10.00 | 140.00 | 106.00 | 1.74 | 8.15 | 20 | h6 | H9 | |
| 462.1-0960-071A1-XM | 9.60 | 78.20 | 150.60 | 152.00 | 10.00 | 140.00 | 106.00 | 1.75 | 8.15 | 20 | h6 | H9 | |
| 462.1-0965-071A1-XM | 9.65 | 78.60 | 150.60 | 152.00 | 10.00 | 140.00 | 106.00 | 1.76 | 8.15 | 20 | h6 | H9 | |
| 462.1-0970-071A1-XM | 9.70 | 79.01 | 150.59 | 152.00 | 10.00 | 140.00 | 106.00 | 1.77 | 8.15 | 20 | h6 | H9 | |
| 462.1-0980-074A1-XM | 9.80 | 79.83 | 150.57 | 152.00 | 10.00 | 140.00 | 106.00 | 1.78 | 8.15 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
