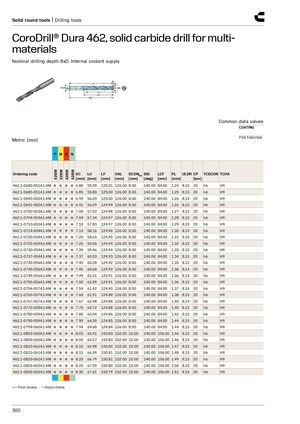

Цельные круглые инструменты | Сверлильные инструменты
CoroDrill® Dura 462, цельнокарбидное сверло для многоматериальных работ
Номинальная глубина сверления 8xD. Внутреннее подведение СОЖ
Общие данные
ПОКРЫТИЕ: PVD TiAlCrSiN
Метрическая система (мм)
Доступно для материальных групп: P, M, K, N (X2BM)
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | CP | TCDCON [бар] | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0680-051A1-XM | 6.80 | 55.39 | 125.01 | 126.00 | 8.00 | 140.00 | 84.00 | 1.24 | 8.15 | 20 | h6 | H9 | |
| 462.1-0685-051A1-XM | 6.85 | 55.80 | 125.00 | 126.00 | 8.00 | 140.00 | 84.00 | 1.25 | 8.15 | 20 | h6 | H9 | |
| 462.1-0690-052A1-XM | 6.90 | 56.20 | 125.00 | 126.00 | 8.00 | 140.00 | 84.00 | 1.26 | 8.14 | 20 | h6 | H9 | |
| 462.1-0691-052A1-XM | 6.91 | 56.29 | 124.99 | 126.00 | 8.00 | 140.00 | 84.00 | 1.26 | 8.15 | 20 | h6 | H9 | |
| 462.1-0700-053A1-XM | 7.00 | 57.02 | 124.98 | 126.00 | 8.00 | 140.00 | 84.00 | 1.27 | 8.15 | 20 | h6 | H9 | |
| 462.1-0704-053A1-XM | 7.04 | 57.34 | 124.97 | 126.00 | 8.00 | 140.00 | 84.00 | 1.28 | 8.15 | 20 | h6 | H9 | |
| 462.1-0710-053A1-XM | 7.10 | 57.83 | 124.97 | 126.00 | 8.00 | 140.00 | 84.00 | 1.29 | 8.15 | 20 | h6 | H9 | |
| 462.1-0714-054A1-XM | 7.14 | 58.16 | 124.96 | 126.00 | 8.00 | 140.00 | 84.00 | 1.30 | 8.14 | 20 | h6 | H9 | |
| 462.1-0720-054A1-XM | 7.20 | 58.65 | 124.95 | 126.00 | 8.00 | 140.00 | 84.00 | 1.31 | 8.15 | 20 | h6 | H9 | |
| 462.1-0725-054A1-XM | 7.25 | 59.06 | 124.94 | 126.00 | 8.00 | 140.00 | 84.00 | 1.32 | 8.15 | 20 | h6 | H9 | |
| 462.1-0730-054A1-XM | 7.30 | 59.46 | 124.94 | 126.00 | 8.00 | 140.00 | 84.00 | 1.33 | 8.15 | 20 | h6 | H9 | |
| 462.1-0737-054A1-XM | 7.37 | 60.03 | 124.93 | 126.00 | 8.00 | 140.00 | 84.00 | 1.34 | 8.15 | 20 | h6 | H9 | |
| 462.1-0740-056A1-XM | 7.40 | 60.28 | 124.92 | 126.00 | 8.00 | 140.00 | 84.00 | 1.35 | 8.15 | 20 | h6 | H9 | |
| 462.1-0745-056A1-XM | 7.45 | 60.68 | 124.92 | 126.00 | 8.00 | 140.00 | 84.00 | 1.36 | 8.14 | 20 | h6 | H9 | |
| 462.1-0749-056A1-XM | 7.49 | 61.01 | 124.91 | 126.00 | 8.00 | 140.00 | 84.00 | 1.36 | 8.14 | 20 | h6 | H9 | |
| 462.1-0750-056A1-XM | 7.50 | 61.09 | 124.91 | 126.00 | 8.00 | 140.00 | 84.00 | 1.36 | 8.15 | 20 | h6 | H9 | |
| 462.1-0754-057A1-XM | 7.54 | 61.42 | 124.90 | 126.00 | 8.00 | 140.00 | 84.00 | 1.37 | 8.14 | 20 | h6 | H9 | |
| 462.1-0760-057A1-XM | 7.60 | 61.91 | 124.89 | 126.00 | 8.00 | 140.00 | 84.00 | 1.38 | 8.15 | 20 | h6 | H9 | |
| 462.1-0767-057A1-XM | 7.67 | 62.48 | 124.88 | 126.00 | 8.00 | 140.00 | 84.00 | 1.40 | 8.14 | 20 | h6 | H9 | |
| 462.1-0770-058A1-XM | 7.70 | 62.72 | 124.88 | 126.00 | 8.00 | 140.00 | 84.00 | 1.40 | 8.15 | 20 | h6 | H9 | |
| 462.1-0780-059A1-XM | 7.80 | 63.54 | 124.86 | 126.00 | 8.00 | 140.00 | 84.00 | 1.42 | 8.15 | 20 | h6 | H9 | |
| 462.1-0790-059A1-XM | 7.90 | 64.35 | 124.85 | 126.00 | 8.00 | 140.00 | 84.00 | 1.44 | 8.15 | 20 | h6 | H9 | |
| 462.1-0794-060A1-XM | 7.94 | 64.68 | 124.84 | 126.00 | 8.00 | 140.00 | 84.00 | 1.44 | 8.15 | 20 | h6 | H9 | |
| 462.1-0803-060A1-XM | 8.03 | 65.41 | 150.83 | 152.00 | 10.00 | 140.00 | 106.00 | 1.46 | 8.15 | 20 | h6 | H9 | |
| 462.1-0805-060A1-XM | 8.05 | 65.57 | 150.83 | 152.00 | 10.00 | 140.00 | 106.00 | 1.46 | 8.15 | 20 | h6 | H9 | |
| 462.1-0810-061A1-XM | 8.10 | 65.98 | 150.82 | 152.00 | 10.00 | 140.00 | 106.00 | 1.47 | 8.15 | 20 | h6 | H9 | |
| 462.1-0815-061A1-XM | 8.15 | 66.39 | 150.81 | 152.00 | 10.00 | 140.00 | 106.00 | 1.48 | 8.15 | 20 | h6 | H9 | |
| 462.1-0820-062A1-XM | 8.20 | 66.79 | 150.81 | 152.00 | 10.00 | 140.00 | 106.00 | 1.49 | 8.15 | 20 | h6 | H9 | |
| 462.1-0825-062A1-XM | 8.25 | 67.20 | 150.80 | 152.00 | 10.00 | 140.00 | 106.00 | 1.50 | 8.15 | 20 | h6 | H9 | |
| 462.1-0830-062A1-XM | 8.30 | 67.61 | 150.79 | 152.00 | 10.00 | 140.00 | 106.00 | 1.51 | 8.15 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
