Цельные круглые инструменты | Сверлильные инструменты

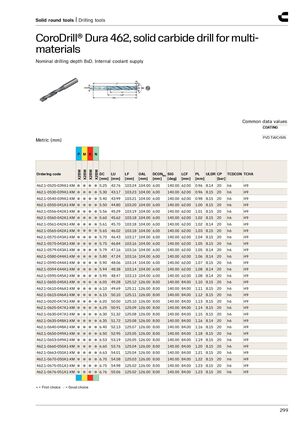

CoroDrill® Dura 462, цельнокарбидное сверло для многоматериальных работ
Номинальная глубина сверления 8xD. Внутреннее подведение СОЖ
Общие данные
ПОКРЫТИЕ: PVD TiAlCrSiN
Метрическая система (мм)
Доступно для материальных групп: P, M, K, N (X2BM)
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | CP | TCDCON [бар] | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0525-039A1-XM | 5.25 | 42.76 | 103.24 | 104.00 | 6.00 | 140.00 | 62.00 | 0.96 | 8.14 | 20 | h6 | H9 | |
| 462.1-0530-039A1-XM | 5.30 | 43.17 | 103.23 | 104.00 | 6.00 | 140.00 | 62.00 | 0.96 | 8.15 | 20 | h6 | H9 | |
| 462.1-0540-039A1-XM | 5.40 | 43.99 | 103.21 | 104.00 | 6.00 | 140.00 | 62.00 | 0.98 | 8.15 | 20 | h6 | H9 | |
| 462.1-0550-041A1-XM | 5.50 | 44.80 | 103.20 | 104.00 | 6.00 | 140.00 | 62.00 | 1.00 | 8.15 | 20 | h6 | H9 | |
| 462.1-0556-042A1-XM | 5.56 | 45.29 | 103.19 | 104.00 | 6.00 | 140.00 | 62.00 | 1.01 | 8.15 | 20 | h6 | H9 | |
| 462.1-0560-042A1-XM | 5.60 | 45.62 | 103.18 | 104.00 | 6.00 | 140.00 | 62.00 | 1.02 | 8.15 | 20 | h6 | H9 | |
| 462.1-0561-042A1-XM | 5.61 | 45.70 | 103.18 | 104.00 | 6.00 | 140.00 | 62.00 | 1.02 | 8.14 | 20 | h6 | H9 | |
| 462.1-0565-042A1-XM | 5.65 | 46.02 | 103.18 | 104.00 | 6.00 | 140.00 | 62.00 | 1.03 | 8.15 | 20 | h6 | H9 | |
| 462.1-0570-043A1-XM | 5.70 | 46.43 | 103.17 | 104.00 | 6.00 | 140.00 | 62.00 | 1.04 | 8.15 | 20 | h6 | H9 | |
| 462.1-0575-043A1-XM | 5.75 | 46.84 | 103.16 | 104.00 | 6.00 | 140.00 | 62.00 | 1.05 | 8.15 | 20 | h6 | H9 | |
| 462.1-0579-043A1-XM | 5.79 | 47.16 | 103.16 | 104.00 | 6.00 | 140.00 | 62.00 | 1.05 | 8.14 | 20 | h6 | H9 | |
| 462.1-0580-044A1-XM | 5.80 | 47.24 | 103.16 | 104.00 | 6.00 | 140.00 | 62.00 | 1.06 | 8.14 | 20 | h6 | H9 | |
| 462.1-0590-044A1-XM | 5.90 | 48.06 | 103.14 | 104.00 | 6.00 | 140.00 | 62.00 | 1.07 | 8.15 | 20 | h6 | H9 | |
| 462.1-0594-044A1-XM | 5.94 | 48.38 | 103.14 | 104.00 | 6.00 | 140.00 | 62.00 | 1.08 | 8.14 | 20 | h6 | H9 | |
| 462.1-0595-045A1-XM | 5.95 | 48.47 | 103.13 | 104.00 | 6.00 | 140.00 | 62.00 | 1.08 | 8.14 | 20 | h6 | H9 | |
| 462.1-0605-045A1-XM | 6.05 | 49.28 | 125.12 | 126.00 | 8.00 | 140.00 | 84.00 | 1.10 | 8.15 | 20 | h6 | H9 | |
| 462.1-0610-046A1-XM | 6.10 | 49.69 | 125.11 | 126.00 | 8.00 | 140.00 | 84.00 | 1.11 | 8.15 | 20 | h6 | H9 | |
| 462.1-0615-046A1-XM | 6.15 | 50.10 | 125.11 | 126.00 | 8.00 | 140.00 | 84.00 | 1.12 | 8.15 | 20 | h6 | H9 | |
| 462.1-0620-047A1-XM | 6.20 | 50.50 | 125.10 | 126.00 | 8.00 | 140.00 | 84.00 | 1.13 | 8.15 | 20 | h6 | H9 | |
| 462.1-0625-047A1-XM | 6.25 | 50.91 | 125.09 | 126.00 | 8.00 | 140.00 | 84.00 | 1.14 | 8.15 | 20 | h6 | H9 | |
| 462.1-0630-047A1-XM | 6.30 | 51.32 | 125.08 | 126.00 | 8.00 | 140.00 | 84.00 | 1.15 | 8.15 | 20 | h6 | H9 | |
| 462.1-0635-048A1-XM | 6.35 | 51.72 | 125.08 | 126.00 | 8.00 | 140.00 | 84.00 | 1.16 | 8.14 | 20 | h6 | H9 | |
| 462.1-0640-048A1-XM | 6.40 | 52.13 | 125.07 | 126.00 | 8.00 | 140.00 | 84.00 | 1.16 | 8.15 | 20 | h6 | H9 | |
| 462.1-0650-049A1-XM | 6.50 | 52.95 | 125.05 | 126.00 | 8.00 | 140.00 | 84.00 | 1.18 | 8.15 | 20 | h6 | H9 | |
| 462.1-0653-049A1-XM | 6.53 | 53.19 | 125.05 | 126.00 | 8.00 | 140.00 | 84.00 | 1.19 | 8.15 | 20 | h6 | H9 | |
| 462.1-0660-050A1-XM | 6.60 | 53.76 | 125.04 | 126.00 | 8.00 | 140.00 | 84.00 | 1.20 | 8.15 | 20 | h6 | H9 | |
| 462.1-0663-050A1-XM | 6.63 | 54.01 | 125.04 | 126.00 | 8.00 | 140.00 | 84.00 | 1.21 | 8.15 | 20 | h6 | H9 | |
| 462.1-0670-050A1-XM | 6.70 | 54.58 | 125.03 | 126.00 | 8.00 | 140.00 | 84.00 | 1.22 | 8.15 | 20 | h6 | H9 | |
| 462.1-0675-051A1-XM | 6.75 | 54.98 | 125.02 | 126.00 | 8.00 | 140.00 | 84.00 | 1.23 | 8.15 | 20 | h6 | H9 | |
| 462.1-0676-051A1-XM | 6.76 | 55.06 | 125.02 | 126.00 | 8.00 | 140.00 | 84.00 | 1.23 | 8.15 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
