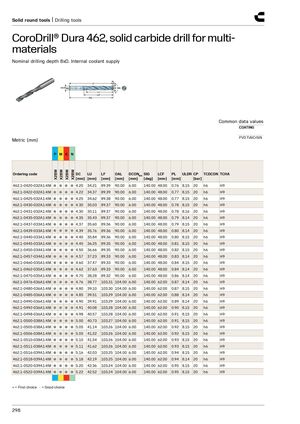

Цельные круглые инструменты | Сверлильные инструменты
CoroDrill® Dura 462, цельнокарбидное сверло для многоматериальных работ
Номинальная глубина сверления 8xD. Внутреннее подведение СОЖ
Общие данные
ПОКРЫТИЕ: PVD TiAlCrSiN
Метрическая система (мм)
Доступно для материальных групп: P, M, K, N (X2BM)
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | CP | TCDCON [бар] | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0420-032A1-XM | 4.20 | 34.21 | 89.39 | 90.00 | 6.00 | 140.00 | 48.00 | 0.76 | 8.15 | 20 | h6 | H9 | |
| 462.1-0422-032A1-XM | 4.22 | 34.37 | 89.39 | 90.00 | 6.00 | 140.00 | 48.00 | 0.77 | 8.15 | 20 | h6 | H9 | |
| 462.1-0425-032A1-XM | 4.25 | 34.62 | 89.38 | 90.00 | 6.00 | 140.00 | 48.00 | 0.77 | 8.15 | 20 | h6 | H9 | |
| 462.1-0430-032A1-XM | 4.30 | 35.03 | 89.37 | 90.00 | 6.00 | 140.00 | 48.00 | 0.78 | 8.15 | 20 | h6 | H9 | |
| 462.1-0431-032A1-XM | 4.30 | 35.11 | 89.37 | 90.00 | 6.00 | 140.00 | 48.00 | 0.78 | 8.16 | 20 | h6 | H9 | |
| 462.1-0435-032A1-XM | 4.35 | 35.43 | 89.37 | 90.00 | 6.00 | 140.00 | 48.00 | 0.79 | 8.14 | 20 | h6 | H9 | |
| 462.1-0437-033A1-XM | 4.37 | 35.60 | 89.36 | 90.00 | 6.00 | 140.00 | 48.00 | 0.79 | 8.15 | 20 | h6 | H9 | |
| 462.1-0439-033A1-XM | 4.39 | 35.76 | 89.36 | 90.00 | 6.00 | 140.00 | 48.00 | 0.80 | 8.14 | 20 | h6 | H9 | |
| 462.1-0440-033A1-XM | 4.40 | 35.84 | 89.36 | 90.00 | 6.00 | 140.00 | 48.00 | 0.80 | 8.15 | 20 | h6 | H9 | |
| 462.1-0445-033A1-XM | 4.45 | 36.25 | 89.35 | 90.00 | 6.00 | 140.00 | 48.00 | 0.81 | 8.15 | 20 | h6 | H9 | |
| 462.1-0450-034A1-XM | 4.50 | 36.66 | 89.35 | 90.00 | 6.00 | 140.00 | 48.00 | 0.82 | 8.15 | 20 | h6 | H9 | |
| 462.1-0457-034A1-XM | 4.57 | 37.23 | 89.33 | 90.00 | 6.00 | 140.00 | 48.00 | 0.83 | 8.14 | 20 | h6 | H9 | |
| 462.1-0460-035A1-XM | 4.60 | 37.47 | 89.33 | 90.00 | 6.00 | 140.00 | 48.00 | 0.84 | 8.15 | 20 | h6 | H9 | |
| 462.1-0462-035A1-XM | 4.62 | 37.63 | 89.33 | 90.00 | 6.00 | 140.00 | 48.00 | 0.84 | 8.14 | 20 | h6 | H9 | |
| 462.1-0470-035A1-XM | 4.70 | 38.28 | 89.32 | 90.00 | 6.00 | 140.00 | 48.00 | 0.86 | 8.14 | 20 | h6 | H9 | |
| 462.1-0476-036A1-XM | 4.76 | 38.77 | 103.31 | 104.00 | 6.00 | 140.00 | 62.00 | 0.87 | 8.14 | 20 | h6 | H9 | |
| 462.1-0480-036A1-XM | 4.80 | 39.10 | 103.30 | 104.00 | 6.00 | 140.00 | 62.00 | 0.87 | 8.15 | 20 | h6 | H9 | |
| 462.1-0485-036A1-XM | 4.85 | 39.51 | 103.29 | 104.00 | 6.00 | 140.00 | 62.00 | 0.88 | 8.14 | 20 | h6 | H9 | |
| 462.1-0490-036A1-XM | 4.90 | 39.91 | 103.29 | 104.00 | 6.00 | 140.00 | 62.00 | 0.89 | 8.14 | 20 | h6 | H9 | |
| 462.1-0492-036A1-XM | 4.91 | 40.08 | 103.28 | 104.00 | 6.00 | 140.00 | 62.00 | 0.90 | 8.15 | 20 | h6 | H9 | |
| 462.1-0498-036A1-XM | 4.98 | 40.57 | 103.28 | 104.00 | 6.00 | 140.00 | 62.00 | 0.91 | 8.15 | 20 | h6 | H9 | |
| 462.1-0500-038A1-XM | 5.00 | 40.73 | 103.27 | 104.00 | 6.00 | 140.00 | 62.00 | 0.91 | 8.15 | 20 | h6 | H9 | |
| 462.1-0505-038A1-XM | 5.05 | 41.14 | 103.26 | 104.00 | 6.00 | 140.00 | 62.00 | 0.92 | 8.15 | 20 | h6 | H9 | |
| 462.1-0506-038A1-XM | 5.05 | 41.22 | 103.26 | 104.00 | 6.00 | 140.00 | 62.00 | 0.92 | 8.15 | 20 | h6 | H9 | |
| 462.1-0510-038A1-XM | 5.10 | 41.54 | 103.26 | 104.00 | 6.00 | 140.00 | 62.00 | 0.93 | 8.15 | 20 | h6 | H9 | |
| 462.1-0511-038A1-XM | 5.11 | 41.62 | 103.26 | 104.00 | 6.00 | 140.00 | 62.00 | 0.93 | 8.15 | 20 | h6 | H9 | |
| 462.1-0516-039A1-XM | 5.16 | 42.03 | 103.25 | 104.00 | 6.00 | 140.00 | 62.00 | 0.94 | 8.15 | 20 | h6 | H9 | |
| 462.1-0518-039A1-XM | 5.18 | 42.19 | 103.25 | 104.00 | 6.00 | 140.00 | 62.00 | 0.94 | 8.14 | 20 | h6 | H9 | |
| 462.1-0520-039A1-XM | 5.20 | 42.36 | 103.24 | 104.00 | 6.00 | 140.00 | 62.00 | 0.95 | 8.15 | 20 | h6 | H9 | |
| 462.1-0522-039A1-XM | 5.22 | 42.52 | 103.24 | 104.00 | 6.00 | 140.00 | 62.00 | 0.95 | 8.15 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
