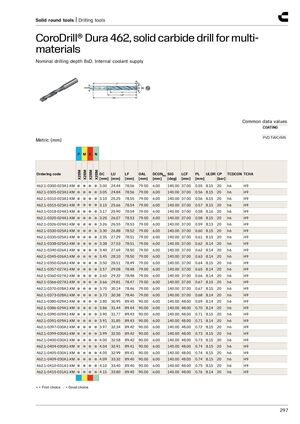

Цельные круглые инструменты | Сверлильные инструменты
CoroDrill® Dura 462, цельнокарбидное сверло для многоматериальных работ
Номинальная глубина сверления 8xD. Внутреннее подведение СОЖ
Общие данные
ПОКРЫТИЕ: PVD TiAlCrSiN
Метрическая система (мм)
Доступно для материальных групп: P, M, K, N (X2BM)
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | CP | TCDCON [бар] | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0300-023A1-XM | 3.00 | 24.44 | 78.56 | 79.00 | 6.00 | 140.00 | 37.00 | 0.55 | 8.15 | 20 | h6 | H9 | |
| 462.1-0305-023A1-XM | 3.05 | 24.84 | 78.56 | 79.00 | 6.00 | 140.00 | 37.00 | 0.56 | 8.15 | 20 | h6 | H9 | |
| 462.1-0310-023A1-XM | 3.10 | 25.25 | 78.55 | 79.00 | 6.00 | 140.00 | 37.00 | 0.56 | 8.15 | 20 | h6 | H9 | |
| 462.1-0315-023A1-XM | 3.15 | 25.66 | 78.54 | 79.00 | 6.00 | 140.00 | 37.00 | 0.57 | 8.15 | 20 | h6 | H9 | |
| 462.1-0318-024A1-XM | 3.17 | 25.90 | 78.54 | 79.00 | 6.00 | 140.00 | 37.00 | 0.58 | 8.16 | 20 | h6 | H9 | |
| 462.1-0320-024A1-XM | 3.20 | 26.07 | 78.53 | 79.00 | 6.00 | 140.00 | 37.00 | 0.58 | 8.15 | 20 | h6 | H9 | |
| 462.1-0326-024A1-XM | 3.26 | 26.55 | 78.53 | 79.00 | 6.00 | 140.00 | 37.00 | 0.59 | 8.13 | 20 | h6 | H9 | |
| 462.1-0330-025A1-XM | 3.30 | 26.88 | 78.52 | 79.00 | 6.00 | 140.00 | 37.00 | 0.60 | 8.15 | 20 | h6 | H9 | |
| 462.1-0335-025A1-XM | 3.35 | 27.29 | 78.51 | 79.00 | 6.00 | 140.00 | 37.00 | 0.61 | 8.15 | 20 | h6 | H9 | |
| 462.1-0338-025A1-XM | 3.38 | 27.53 | 78.51 | 79.00 | 6.00 | 140.00 | 37.00 | 0.62 | 8.14 | 20 | h6 | H9 | |
| 462.1-0340-026A1-XM | 3.40 | 27.69 | 78.50 | 79.00 | 6.00 | 140.00 | 37.00 | 0.62 | 8.14 | 20 | h6 | H9 | |
| 462.1-0345-026A1-XM | 3.45 | 28.10 | 78.50 | 79.00 | 6.00 | 140.00 | 37.00 | 0.63 | 8.14 | 20 | h6 | H9 | |
| 462.1-0350-026A1-XM | 3.50 | 28.51 | 78.49 | 79.00 | 6.00 | 140.00 | 37.00 | 0.64 | 8.15 | 20 | h6 | H9 | |
| 462.1-0357-027A1-XM | 3.57 | 29.08 | 78.48 | 79.00 | 6.00 | 140.00 | 37.00 | 0.65 | 8.14 | 20 | h6 | H9 | |
| 462.1-0360-027A1-XM | 3.60 | 29.32 | 78.48 | 79.00 | 6.00 | 140.00 | 37.00 | 0.66 | 8.14 | 20 | h6 | H9 | |
| 462.1-0366-027A1-XM | 3.66 | 29.81 | 78.47 | 79.00 | 6.00 | 140.00 | 37.00 | 0.67 | 8.15 | 20 | h6 | H9 | |
| 462.1-0370-028A1-XM | 3.70 | 30.14 | 78.46 | 79.00 | 6.00 | 140.00 | 37.00 | 0.67 | 8.15 | 20 | h6 | H9 | |
| 462.1-0373-028A1-XM | 3.73 | 30.38 | 78.46 | 79.00 | 6.00 | 140.00 | 37.00 | 0.68 | 8.14 | 20 | h6 | H9 | |
| 462.1-0380-029A1-XM | 3.80 | 30.95 | 89.45 | 90.00 | 6.00 | 140.00 | 48.00 | 0.69 | 8.14 | 20 | h6 | H9 | |
| 462.1-0386-029A1-XM | 3.86 | 31.44 | 89.44 | 90.00 | 6.00 | 140.00 | 48.00 | 0.70 | 8.14 | 20 | h6 | H9 | |
| 462.1-0390-029A1-XM | 3.90 | 31.77 | 89.43 | 90.00 | 6.00 | 140.00 | 48.00 | 0.71 | 8.15 | 20 | h6 | H9 | |
| 462.1-0391-029A1-XM | 3.91 | 31.85 | 89.43 | 90.00 | 6.00 | 140.00 | 48.00 | 0.71 | 8.14 | 20 | h6 | H9 | |
| 462.1-0397-030A1-XM | 3.97 | 32.34 | 89.42 | 90.00 | 6.00 | 140.00 | 48.00 | 0.72 | 8.15 | 20 | h6 | H9 | |
| 462.1-0399-030A1-XM | 3.99 | 32.50 | 89.42 | 90.00 | 6.00 | 140.00 | 48.00 | 0.73 | 8.15 | 20 | h6 | H9 | |
| 462.1-0400-030A1-XM | 4.00 | 32.58 | 89.42 | 90.00 | 6.00 | 140.00 | 48.00 | 0.73 | 8.15 | 20 | h6 | H9 | |
| 462.1-0404-030A1-XM | 4.04 | 32.91 | 89.41 | 90.00 | 6.00 | 140.00 | 48.00 | 0.74 | 8.15 | 20 | h6 | H9 | |
| 462.1-0405-030A1-XM | 4.05 | 32.99 | 89.41 | 90.00 | 6.00 | 140.00 | 48.00 | 0.74 | 8.15 | 20 | h6 | H9 | |
| 462.1-0409-030A1-XM | 4.09 | 33.32 | 89.40 | 90.00 | 6.00 | 140.00 | 48.00 | 0.74 | 8.15 | 20 | h6 | H9 | |
| 462.1-0410-031A1-XM | 4.10 | 33.40 | 89.40 | 90.00 | 6.00 | 140.00 | 48.00 | 0.75 | 8.15 | 20 | h6 | H9 | |
| 462.1-0415-031A1-XM | 4.15 | 33.80 | 89.40 | 90.00 | 6.00 | 140.00 | 48.00 | 0.76 | 8.14 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
