Цельные круглые инструменты | Фрезерный инструмент

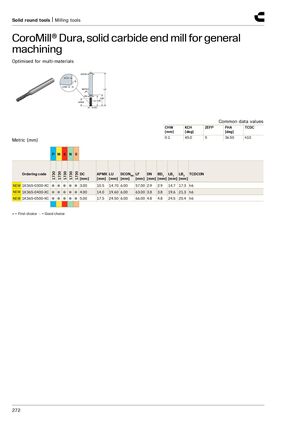

CoroMill® Dura твердосплавный концевой фрез для общего фрезерования
Оптимизирован для многоматериалов
Значения общих данных
| CHW [мм] | KCH [град] | ZEFP | FHA [град] | TCDC |
|---|---|---|---|---|
| 0.1 | 45.0 | 5 | 36.50 | h10 |
Метрические (мм)
| Артикул | DC [мм] | APMX [мм] | LU [мм] | DCONMS [мм] | LF [мм] | DN [мм] | BD 1 [мм] | LB 1 [мм] | LB 2 [мм] | TCDCON |
|---|---|---|---|---|---|---|---|---|---|---|
| NEW 1K365-0300-XC | 3.00 | 10.5 | 14.70 | 6.00 | 57.00 | 2.9 | 2.9 | 14.7 | 17.3 | h6 |
| NEW 1K365-0400-XC | 4.00 | 14.0 | 19.60 | 6.00 | 63.00 | 3.8 | 3.8 | 19.6 | 21.3 | h6 |
| NEW 1K365-0500-XC | 5.00 | 17.5 | 24.50 | 6.00 | 66.00 | 4.8 | 4.8 | 24.5 | 25.4 | h6 |
