Цельные круглые инструменты | Фрезерный инструмент

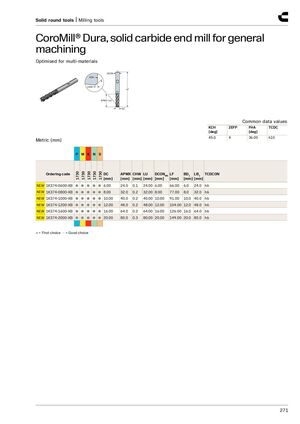

CoroMill® Dura твердосплавный концевой фрез для общего фрезерования
Оптимизирован для многоматериалов
Значения общих данных
| KCH [град] | ZEFP | FHA [град] | TCDC |
|---|---|---|---|
| 45.0 | 4 | 36.00 | h10 |
Метрические (мм)
| Артикул | DC [мм] | APMX [мм] | CHW [мм] | LU [мм] | DCONMS [мм] | LF [мм] | BD 1 [мм] | LB 1 [мм] | TCDCON |
|---|---|---|---|---|---|---|---|---|---|
| NEW 1K374-0600-XB | 6.00 | 24.0 | 0.1 | 24.00 | 6.00 | 66.00 | 6.0 | 24.0 | h6 |
| NEW 1K374-0800-XB | 8.00 | 32.0 | 0.2 | 32.00 | 8.00 | 77.00 | 8.0 | 32.0 | h6 |
| NEW 1K374-1000-XB | 10.00 | 40.0 | 0.2 | 40.00 | 10.00 | 91.00 | 10.0 | 40.0 | h6 |
| NEW 1K374-1200-XB | 12.00 | 48.0 | 0.2 | 48.00 | 12.00 | 104.00 | 12.0 | 48.0 | h6 |
| NEW 1K374-1600-XB | 16.00 | 64.0 | 0.2 | 64.00 | 16.00 | 126.00 | 16.0 | 64.0 | h6 |
| NEW 1K374-2000-XB | 20.00 | 80.0 | 0.3 | 80.00 | 20.00 | 149.00 | 20.0 | 80.0 | h6 |
