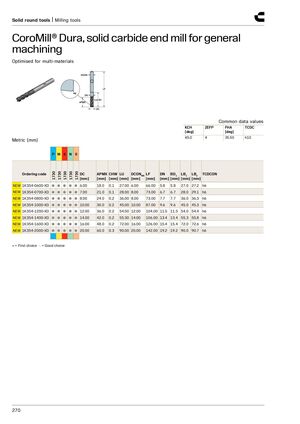

Цельные круглые инструменты | Фрезерный инструмент
CoroMill® Dura твердосплавный концевой фрез для общего фрезерования
Оптимизирован для многоматериалов
Значения общих данных
| KCH [град] | ZEFP | FHA [град] | TCDC |
|---|---|---|---|
| 45.0 | 4 | 35.50 | h10 |
Метрические (мм)
| Артикул | DC [мм] | APMX [мм] | CHW [мм] | LU [мм] | DCONMS [мм] | LF [мм] | DN [мм] | BD 1 [мм] | LB 1 [мм] | LB 2 [мм] | TCDCON |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NEW 1K354-0600-XD | 6.00 | 18.0 | 0.1 | 27.00 | 6.00 | 66.00 | 5.8 | 5.8 | 27.0 | 27.2 | h6 |
| NEW 1K354-0700-XD | 7.00 | 21.0 | 0.1 | 28.00 | 8.00 | 73.00 | 6.7 | 6.7 | 28.0 | 29.1 | h6 |
| NEW 1K354-0800-XD | 8.00 | 24.0 | 0.2 | 36.00 | 8.00 | 73.00 | 7.7 | 7.7 | 36.0 | 36.3 | h6 |
| NEW 1K354-1000-XD | 10.00 | 30.0 | 0.2 | 45.00 | 10.00 | 87.00 | 9.6 | 9.6 | 45.0 | 45.3 | h6 |
| NEW 1K354-1200-XD | 12.00 | 36.0 | 0.2 | 54.00 | 12.00 | 104.00 | 11.5 | 11.5 | 54.0 | 54.4 | h6 |
| NEW 1K354-1400-XD | 14.00 | 42.0 | 0.2 | 55.30 | 14.00 | 106.00 | 13.4 | 13.4 | 55.3 | 55.8 | h6 |
| NEW 1K354-1600-XD | 16.00 | 48.0 | 0.2 | 72.00 | 16.00 | 126.00 | 15.4 | 15.4 | 72.0 | 72.6 | h6 |
| NEW 1K354-2000-XD | 20.00 | 60.0 | 0.3 | 90.00 | 20.00 | 142.00 | 19.2 | 19.2 | 90.0 | 90.7 | h6 |
