Цельные круглые инструменты | Фрезерный инструмент

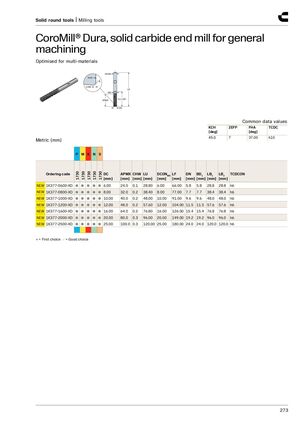

CoroMill® Dura твердосплавный концевой фрез для общего фрезерования
Оптимизирован для многоматериалов
Значения общих данных
| KCH [град] | ZEFP | FHA [град] | TCDC |
|---|---|---|---|
| 45.0 | 7 | 37.00 | h10 |
Метрические (мм)
| Артикул | DC [мм] | APMX [мм] | CHW [мм] | LU [мм] | DCONMS [мм] | LF [мм] | DN [мм] | BD 1 [мм] | LB 1 [мм] | LB 2 [мм] | TCDCON |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NEW 1K377-0600-XD | 6.00 | 24.0 | 0.1 | 28.80 | 6.00 | 66.00 | 5.8 | 5.8 | 28.8 | 28.8 | h6 |
| NEW 1K377-0800-XD | 8.00 | 32.0 | 0.2 | 38.40 | 8.00 | 77.00 | 7.7 | 7.7 | 38.4 | 38.4 | h6 |
| NEW 1K377-1000-XD | 10.00 | 40.0 | 0.2 | 48.00 | 10.00 | 91.00 | 9.6 | 9.6 | 48.0 | 48.0 | h6 |
| NEW 1K377-1200-XD | 12.00 | 48.0 | 0.2 | 57.60 | 12.00 | 104.00 | 11.5 | 11.5 | 57.6 | 57.6 | h6 |
| NEW 1K377-1600-XD | 16.00 | 64.0 | 0.2 | 76.80 | 16.00 | 126.00 | 15.4 | 15.4 | 76.8 | 76.8 | h6 |
| NEW 1K377-2000-XD | 20.00 | 80.0 | 0.3 | 96.00 | 20.00 | 149.00 | 19.2 | 19.2 | 96.0 | 96.0 | h6 |
| NEW 1K377-2500-XD | 25.00 | 100.0 | 0.3 | 120.00 | 25.00 | 180.00 | 24.0 | 24.0 | 120.0 | 120.0 | h6 |
