Инструменты для фрезерования | Инструменты для фрезерования канавок

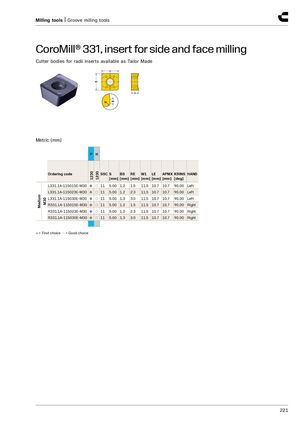

CoroMill® 331, пластина для торцевого и бокового фрезерования
Корпусы фрез для пластин с радиусом доступны по индивидуальному заказу
Метрические размеры (мм)
| Код заказа | SSC | S [мм] | BS [мм] | RE [мм] | W1 [мм] | LE [мм] | APMX [мм] | KRINS [град] | HAND | |
|---|---|---|---|---|---|---|---|---|---|---|
| L331.1A-115015E-M30 | ● ○ | 11 | 5.00 | 1.2 | 1.5 | 11.5 | 10.7 | 10.7 | 90.00 | Left |
| L331.1A-115023E-M30 | ● ○ | 11 | 5.00 | 1.2 | 2.3 | 11.5 | 10.7 | 10.7 | 90.00 | Left |
| L331.1A-115030E-M30 | ● ○ | 11 | 5.00 | 1.3 | 3.0 | 11.5 | 10.7 | 10.7 | 90.00 | Left |
| R331.1A-115015E-M30 | ● ○ | 11 | 5.00 | 1.2 | 1.5 | 11.5 | 10.7 | 10.7 | 90.00 | Right |
| R331.1A-115023E-M30 | ● ○ | 11 | 5.00 | 1.2 | 2.3 | 11.5 | 10.7 | 10.7 | 90.00 | Right |
| R331.1A-115030E-M30 | ● ○ | 11 | 5.00 | 1.3 | 3.0 | 11.5 | 10.7 | 10.7 | 90.00 | Right |
● = Первый выбор ○ = Хороший выбор
