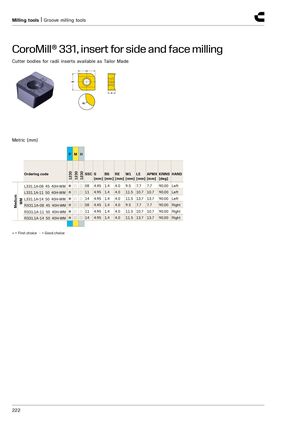

Milling tools | Groove milling tools CoroMill® 331, insert for side and face milling Cutter bodies for radii inserts available as Tailor Made Metric (mm) P M H 1230 1230 1230 Ordering code SSC S BS RE W1 LE APMX KRINS HAND [mm] [mm] [mm] [mm] [mm] [mm] [deg] L331.1A-08 45 40H-WM ● ○ ○ 08 4.45 1.4 4.0 9.5 7.7 7.7 90.00 Left L331.1A-11 50 40H-WM ● ○ ○ 11 4.95 1.4 4.0 11.5 10.7 10.7 90.00 Left L331.1A-14 50 40H-WM ● ○ ○ 14 Medium 4.95 1.4 4.0 11.5 13.7 13.7 90.00 Left WM R331.1A-08 45 40H-WM ● ○ ○ 08 4.45 1.4 4.0 9.5 7.7 7.7 90.00 Right R331.1A-11 50 40H-WM ● ○ ○ 11 4.95 1.4 4.0 11.5 10.7 10.7 90.00 Right R331.1A-14 50 40H-WM ● ○ ○ 14 4.95 1.4 4.0 11.5 13.7 13.7 90.00 Right ● = First choice ○ = Good choice 222
