Резцы | Сменные пластины для точения

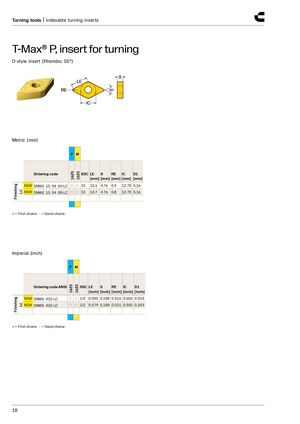

T-Max® P, пластина для точения
Пластина типа D (ромб 55°)
Метрическая система (мм)
Финишная обработка
| Код заказа | P | M | SSC | LE | S | RE | IC | D1 |
|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | |||||||
| NEW DNMG 15 04 04-LC | ○ | ○ | 15 | 15.1 | 4.76 | 0.4 | 12.70 | 5.16 |
| NEW DNMG 15 04 08-LC | ○ | ○ | 15 | 14.7 | 4.76 | 0.8 | 12.70 | 5.16 |
● = Первый выбор ○ = Хороший выбор
Имперская система (дюймы)
| Код заказа ANSI | P | M | SSC | LE | S | RE | IC | D1 |
|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | |||||||
| NEW DNMG 431-LC | ○ | ○ | 1/2 | 0.595 | 0.188 | 0.016 | 0.500 | 0.203 |
| NEW DNMG 432-LC | ○ | ○ | 1/2 | 0.579 | 0.188 | 0.031 | 0.500 | 0.203 |
● = Первый выбор ○ = Хороший выбор
