Резцы | Сменные пластины для точения

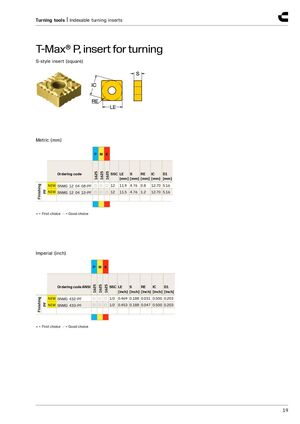

T-Max® P, пластина для точения
Пластина типа S (квадратная)
Метрическая система (мм)
Финишная обработка
| Код заказа | P | M | K | SSC | LE | S | RE | IC | D1 |
|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | |||||||
| NEW SNMG 12 04 08-PF | ○ | ○ | ○ | 12 | 11.9 | 4.76 | 0.8 | 12.70 | 5.16 |
| NEW SNMG 12 04 12-PF | ○ | ○ | ○ | 12 | 11.5 | 4.76 | 1.2 | 12.70 | 5.16 |
● = Первый выбор ○ = Хороший выбор
Имперская система (дюймы)
| Код заказа ANSI | P | M | K | SSC | LE | S | RE | IC | D1 |
|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | |||||||
| NEW SNMG 432-PF | ○ | ○ | ○ | 1/2 | 0.469 | 0.188 | 0.031 | 0.500 | 0.203 |
| NEW SNMG 433-PF | ○ | ○ | ○ | 1/2 | 0.453 | 0.188 | 0.047 | 0.500 | 0.203 |
● = Первый выбор ○ = Хороший выбор
