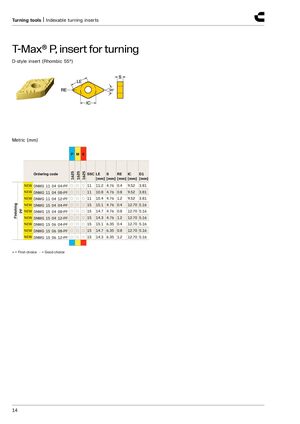

Turning tools | Indexable turning inserts T-Max® P, insert for turning D-style insert (Rhombic 55°) Metric (mm) P M K 1625 1625 1625 Ordering code SSC LE S RE IC D1 [mm] [mm] [mm] [mm] [mm] NEW DNMG 11 04 04-PF ○ ○ ○ 11 11.2 4.76 0.4 9.52 3.81 NEW DNMG 11 04 08-PF ○ ○ ○ 11 10.8 4.76 0.8 9.52 3.81 NEW DNMG 11 04 12-PF ○ ○ ○ 11 10.4 4.76 1.2 9.52 3.81 NEW DNMG 15 04 04-PF ○ ○ ○ 15 15.1 4.76 0.4 12.70 5.16 Finishing NEW DNMG 15 04 08-PF ○ ○ ○ 15 PF 14.7 4.76 0.8 12.70 5.16 NEW DNMG 15 04 12-PF ○ ○ ○ 15 14.3 4.76 1.2 12.70 5.16 NEW DNMG 15 06 04-PF ○ ○ ○ 15 15.1 6.35 0.4 12.70 5.16 NEW DNMG 15 06 08-PF ○ ○ ○ 15 14.7 6.35 0.8 12.70 5.16 NEW DNMG 15 06 12-PF ○ ○ ○ 15 14.3 6.35 1.2 12.70 5.16 ● = First choice ○ = Good choice 14
