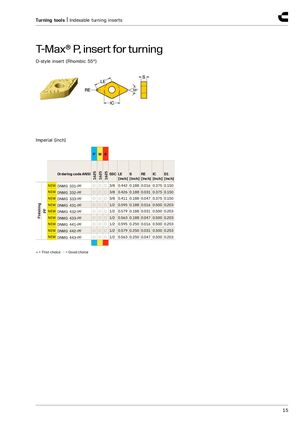

Turning tools | Indexable turning inserts T-Max® P, insert for turning D-style insert (Rhombic 55°) Imperial (inch) P M K 1625 1625 1625 Ordering code ANSI SSC LE S RE IC D1 [inch] [inch] [inch] [inch] [inch] NEW DNMG 331-PF ○ ○ ○ 3/8 0.442 0.188 0.016 0.375 0.150 NEW DNMG 332-PF ○ ○ ○ 3/8 0.426 0.188 0.031 0.375 0.150 NEW DNMG 333-PF ○ ○ ○ 3/8 0.411 0.188 0.047 0.375 0.150 NEW DNMG 431-PF ○ ○ ○ 1/2 0.595 0.188 0.016 0.500 0.203 Finishing ○ ○ ○ 1/2 0.579 0.188 0.031 0.500 0.203 PF NEW DNMG 432-PF NEW DNMG 433-PF ○ ○ ○ 1/2 0.563 0.188 0.047 0.500 0.203 NEW DNMG 441-PF ○ ○ ○ 1/2 0.595 0.250 0.016 0.500 0.203 NEW DNMG 442-PF ○ ○ ○ 1/2 0.579 0.250 0.031 0.500 0.203 NEW DNMG 443-PF ○ ○ ○ 1/2 0.563 0.250 0.047 0.500 0.203 ● = First choice ○ = Good choice 15
