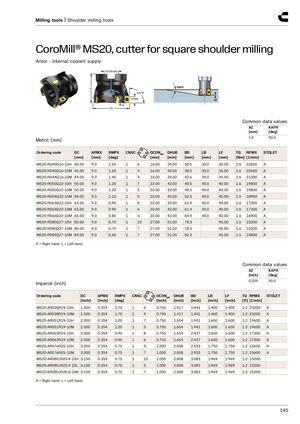

Milling tools | Shoulder milling tools CoroMill® MS20, cutter for square shoulder milling Arbor - Internal coolant supply DCON MS LF KAPR APMX AZ DC Common data values AZ KAPR [mm] [deg] 1.0 90.0 Metric (mm) Ordering code DC APMX RMPX CNSC DCONMS DHUB BD LB LF TQ RPMX STDLET [mm] [mm] [deg] [mm] [mm] [mm] [mm] [mm] [Nm] [1/min] MS20-R040Q16-10H 40.00 9.0 1.60 1 6 16.00 34.00 38.5 35.0 35.00 1.6 22600 A MS20-R040Q16-10M 40.00 9.0 1.60 1 4 16.00 34.00 38.5 35.0 35.00 1.6 22600 A MS20-R044Q16-10M 44.00 9.0 1.40 1 4 16.00 34.00 42.6 35.0 35.00 1.6 21300 A MS20-R050Q22-10H 50.00 9.0 1.20 1 7 22.00 42.00 48.5 40.0 40.00 1.6 19800 A MS20-R050Q22-10M 50.00 9.0 1.20 1 5 22.00 42.00 48.5 40.0 40.00 1.6 19800 A MS20-R054Q22-10M 54.00 9.0 1.10 1 5 22.00 42.00 52.5 40.0 40.00 1.6 18900 A MS20-R063Q22-10H 63.00 9.0 0.90 1 8 22.00 42.00 61.4 40.0 40.00 1.6 17300 A MS20-R063Q22-10M 63.00 9.0 0.90 1 6 22.00 42.00 61.4 40.0 40.00 1.6 17300 A MS20-R066Q22-10M 66.00 9.0 0.80 1 6 22.00 42.00 64.4 40.0 40.00 1.6 16900 A MS20-R080Q27-10H 80.00 9.0 0.70 1 10 27.00 51.00 78.3 45.00 1.6 15200 A MS20-R080Q27-10M 80.00 9.0 0.70 1 7 27.00 51.00 78.3 45.00 1.6 15200 A MS20-R084Q27-10M 84.00 9.0 0.60 1 7 27.00 51.00 82.3 45.00 1.6 14800 A R = Right hand, L = Left hand Common data values AZ KAPR [inch] [deg] 0.039 90.0 Imperial (inch) Ordering code DC APMX RMPX CNSC DCONMS DHUB BD LB LF TQ RPMX STDLET [inch] [inch] [deg] [inch] [inch] [inch] [inch] [inch] [ft] [1/min] MS20-AR038R19-10H 1.500 0.354 1.70 1 6 0.750 1.417 1.441 1.400 1.400 1.2 23200 A MS20-AR038R19-10M 1.500 0.354 1.70 1 4 0.750 1.417 1.441 1.400 1.400 1.2 23200 A MS20-AR051R19-10H 2.000 0.354 1.20 1 7 0.750 1.654 1.941 1.600 1.600 1.2 19600 A MS20-AR051R19-10M 2.000 0.354 1.20 1 5 0.750 1.654 1.941 1.600 1.600 1.2 19600 A MS20-AR063R19-10H 2.500 0.354 0.90 1 8 0.750 1.654 2.437 1.600 1.600 1.2 17300 A MS20-AR063R19-10M 2.500 0.354 0.90 1 6 0.750 1.654 2.437 1.600 1.600 1.2 17300 A MS20-AR076R25-10H 3.000 0.354 0.70 1 9 1.000 2.008 2.933 1.750 1.750 1.2 15600 A MS20-AR076R25-10M 3.000 0.354 0.70 1 7 1.000 2.008 2.933 1.750 1.750 1.2 15600 A MS20-AR080JR25.4-10H 3.150 0.354 0.70 1 10 1.000 2.008 3.083 1.969 1.969 1.2 15200 MS20-AR080JR25.4-10L 3.150 0.354 0.70 1 5 1.000 2.008 3.083 1.969 1.969 1.2 15200 MS20-AR080JR25.4-10M 3.150 0.354 0.70 1 7 1.000 2.008 3.083 1.969 1.969 1.2 15200 R = Right hand, L = Left hand 145
