Инструменты фрезерования | Инструменты фрезерования торцевых уступов

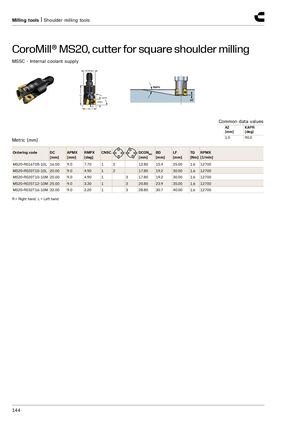

CoroMill® MS20, фреза для квадратного торцевого уступа
MSSC — внутренняя подача СОЖ
Метрические размеры (мм)
| Код заказа | DC [мм] | APMX [мм] | RMPX [град] | CNSC | DCONMS [мм] | BD [мм] | LF [мм] | TQ [Нм] | RPMX [1/мин] |
|---|---|---|---|---|---|---|---|---|---|
| MS20-R016T08-10L | 16.00 | 9.0 | 7.70 | 1 + 2 | 12.80 | 15.4 | 25.00 | 1.6 | 12700 |
| MS20-R020T10-10L | 20.00 | 9.0 | 4.90 | 1 + 2 | 17.80 | 19.2 | 30.00 | 1.6 | 12700 |
| MS20-R020T10-10M | 20.00 | 9.0 | 4.90 | 1 + 3 | 17.80 | 19.2 | 30.00 | 1.6 | 12700 |
| MS20-R025T12-10M | 25.00 | 9.0 | 3.30 | 1 + 3 | 20.80 | 23.9 | 35.00 | 1.6 | 12700 |
| MS20-R032T16-10M | 32.00 | 9.0 | 2.20 | 1 + 3 | 28.80 | 30.7 | 40.00 | 1.6 | 12700 |
R = Правая, L = Левая
