Токарный инструмент | Сменные многогранные пластины

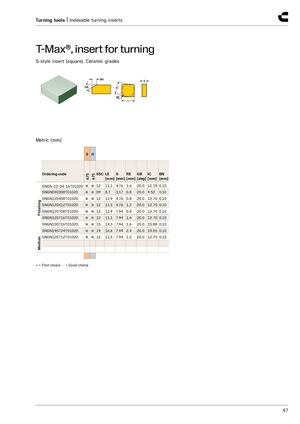

T-Max®, пластина для токарной обработки
Пластина формы S (квадратная). Керамические марки
Метрическая система (мм)
Марки: S (675) | H (675)
Чистовая обработка
| Артикул | Марка | SSC [мм] | LE [мм] | S [мм] | RE [мм] | GB [град] | IC [мм] | BN [мм] |
|---|---|---|---|---|---|---|---|---|
| SNGN 12 04 16T01020 | S/H | 12 | 11.1 | 4.76 | 1.6 | 20.0 | 12.70 | 0.10 |
| SNGN090308T01020 | S/H | 09 | 8.7 | 3.17 | 0.8 | 20.0 | 9.52 | 0.10 |
| SNGN120408T01020 | S/H | 12 | 11.9 | 4.76 | 0.8 | 20.0 | 12.70 | 0.10 |
| SNGN120412T01020 | S/H | 12 | 11.5 | 4.76 | 1.2 | 20.0 | 12.70 | 0.10 |
| SNGN120708T01020 | S/H | 12 | 11.9 | 7.94 | 0.8 | 20.0 | 12.70 | 0.10 |
| SNGN120716T01020 | S/H | 12 | 11.1 | 7.94 | 1.6 | 20.0 | 12.70 | 0.10 |
| SNGN150716T01020 | S/H | 15 | 14.3 | 7.94 | 1.6 | 20.0 | 15.88 | 0.10 |
| SNGN190724T01020 | S/H | 19 | 16.6 | 7.94 | 2.4 | 20.0 | 19.05 | 0.10 |
| SNGN120712T01020 | S/H | 12 | 11.5 | 7.94 | 1.2 | 20.0 | 12.70 | 0.10 |
● = Первый выбор ○ = Хороший выбор
