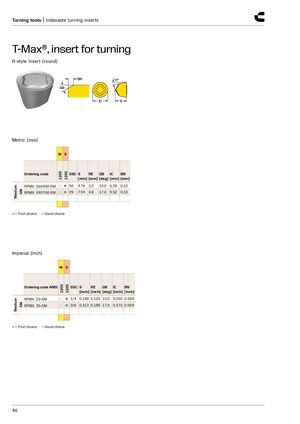

Токарный инструмент | Сменные многогранные пластины
T-Max®, пластина для токарной обработки
Пластина формы R (круглая)
Метрическая система (мм)
Марки: M (1205) | S (1205)
Универсальная обработка
| Артикул | Марка | SSC [мм] | S [мм] | RE [мм] | GB [град] | IC [мм] | BN [мм] |
|---|---|---|---|---|---|---|---|
| RPMX 060400-SM | SM | 06 | 4.76 | 3.2 | 15.0 | 6.35 | 0.10 |
| RPMX 090700-SM | SM | 09 | 7.94 | 4.8 | 17.0 | 9.52 | 0.10 |
● = Первый выбор ○ = Хороший выбор
Дюймовая система (дюймы)
Марки: M (1205) | S (1205)
Универсальная обработка
| Артикул ANSI | Марка | SSC [дюйм] | S [дюйм] | RE [дюйм] | GB [град] | IC [дюйм] | BN [дюйм] |
|---|---|---|---|---|---|---|---|
| RPMX 23-SM | SM | 1/4 | 0.188 | 0.125 | 15.0 | 0.250 | 0.004 |
| RPMX 35-SM | SM | 3/8 | 0.313 | 0.188 | 17.0 | 0.375 | 0.004 |
● = Первый выбор ○ = Хороший выбор
